NS16A24SA454A ROOM AIR CONDITIONER

Products

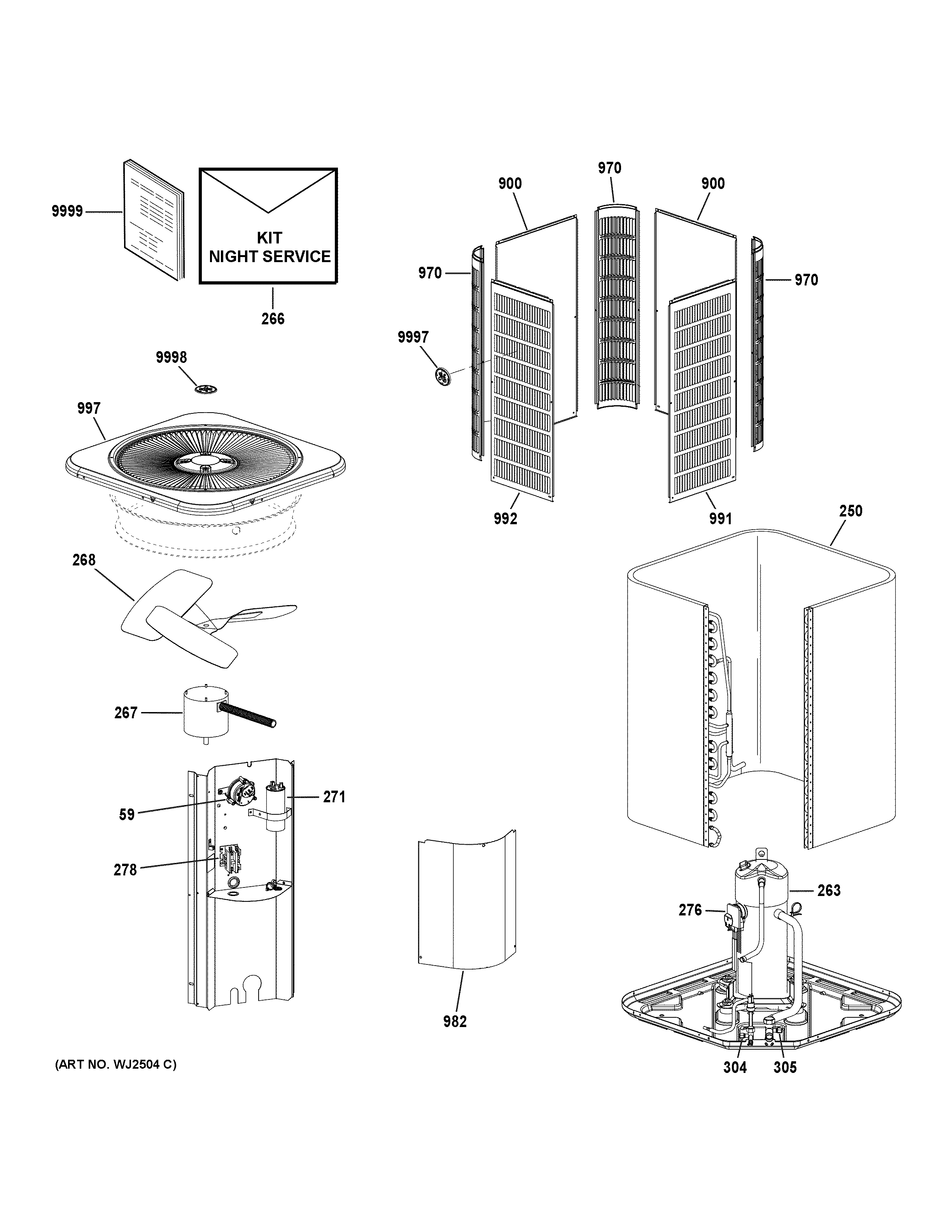

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
250COIL ASSY-(CTO)
26313H93 GE 104161-02 Appliance Compressor 230V
266100484-10 Kit-RFC (.060)
267100483-33 Cond Fan MTR 1/6HP 208-230-1
268100060-23 Fan Assy
271Dual Run Cap 35+5 @ 440V ROUND
276HARNESS – COMPRESSOR: MOLDED PLUG
278CONTACTOR-SPST 25FLA/35RES
304VALVE-SERVICE 3/4"-
305VALVE-SERVICE 3/8"
900PNL LOUVER CTR 28 X 28-(CTO)
970POST CORNER 28H-(CTO)
982PNL-CTRL WRAPPER(ARMSTRONG)-(CTO)
991PNL LOUVER RT -28B X 28H-(CTO)
992PNL LOUVER LT 28 X 28-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
