NS16A36SA453A ROOM AIR CONDITIONER

Products

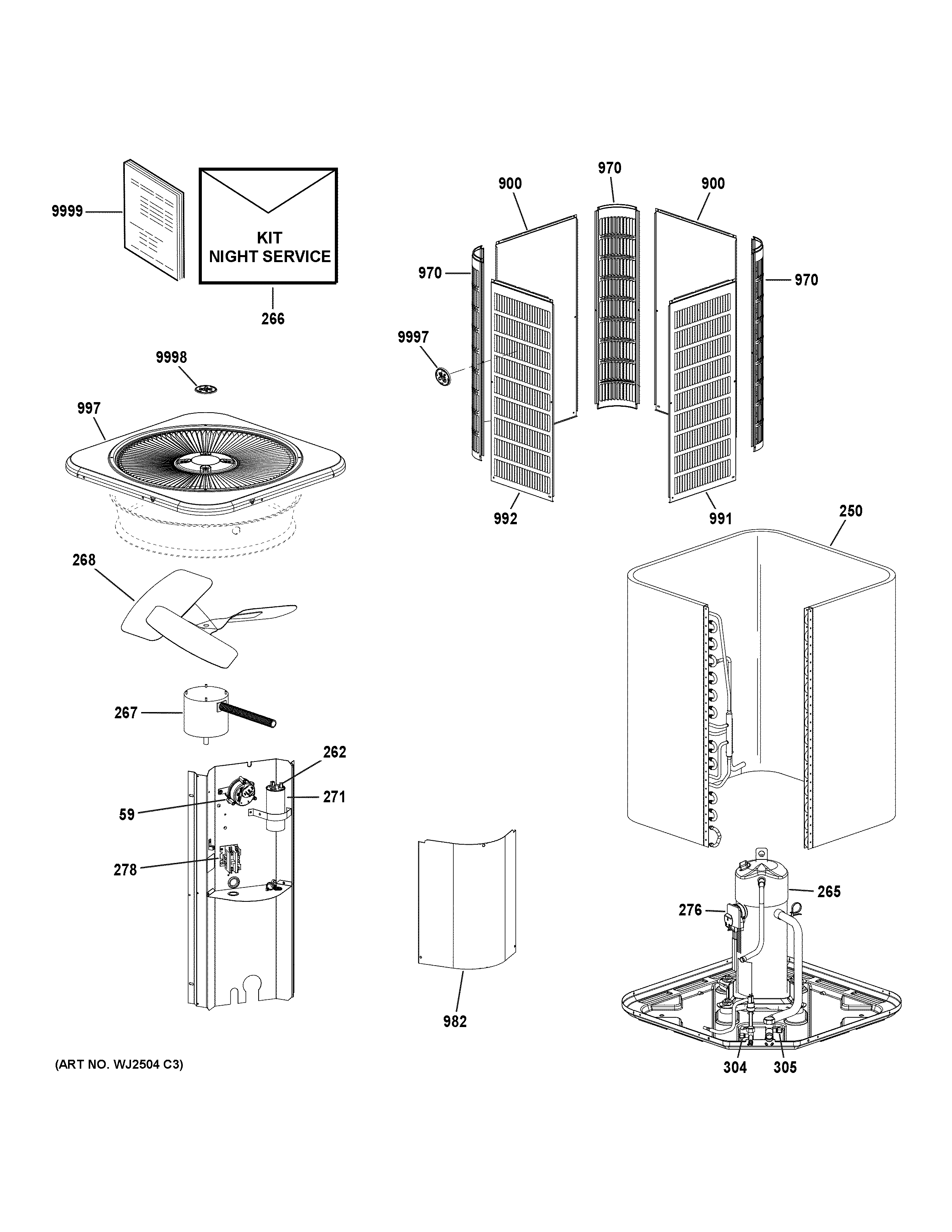

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
250COIL ASSY-(CTO)
26289M93 GE 100335-28 Dual Run Capacitor 55+5
265104161-04 Comp APG029KAC R410A 230V-1
266100484-21 Kit-RFC (.072)
267100483-33 Cond Fan MTR 1/6HP 208-230-1
268Fan Assy 22" 3Bld 26Pitch CCW-(CTO)
271100335-12 Dual Run Cap 45+5 @ 440V ROUND
276LG HARNESS-COMP MOLDED PLUG
278CONTACTOR-SPST 25FLA/35RES
304VALVE-SERVICE 7/8"
305VALVE-SERVICE 3/8"
900PNL LOUVER CTR 28 X 28-(CTO)
970POST CORNER 28H-(CTO)
982COVER, CONTROL PNL-(CTO)
991PNL LOUVER RT -28B X 28H-(CTO)
992PNL LOUVER LT 28 X 28-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
