NS16A42SA454A ROOM AIR CONDITIONER

NS16A42SA454A ROOM AIR CONDITIONER

Written by

in

NS16A42SA454A ROOM AIR CONDITIONER

Products

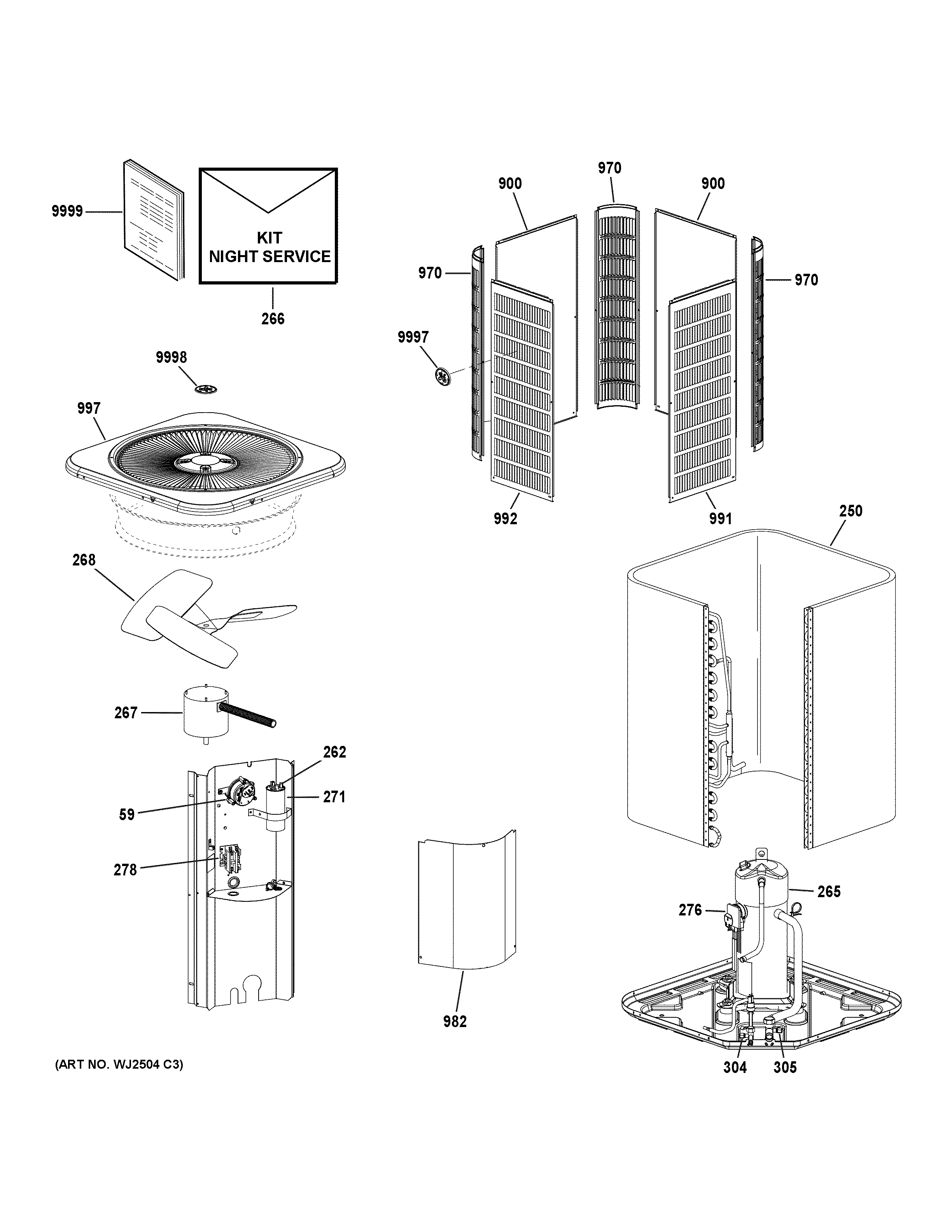

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
250COIL ASSY-(CTO)
262Dual Run Cap 45+10 440V ROUND
265104112-09 ZP34K6E-PFV-830 R410 A230V-1
266100484-29 Kit-RFC (.081)
267100483-33 Cond Fan MTR 1/6HP 208-230-1
268100060-23 Fan Assy
271100335-12 Dual Run Cap 45+5 @ 440V ROUND
276LG HARNESS-COMP MOLDED PLUG
278CONTACTOR-SPST 35FLA/40RES
304VALVE-BALL 7/8 X 7/8
305VALVE-SERVICE 3/8"
900PNL LOUVER CTR 28 X 36-(CTO)
970POST CORNER 36H-(CTO)
982COVER, CONTROL PNL-(CTO)
991PNL LOUVER RT – 28B X 36H-(CTO)
992PNL LOUVER LT 28 X 36-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
