NS16A48SA453A ROOM AIR CONDITIONER

NS16A48SA453A ROOM AIR CONDITIONER

Written by

in

NS16A48SA453A ROOM AIR CONDITIONER

Products

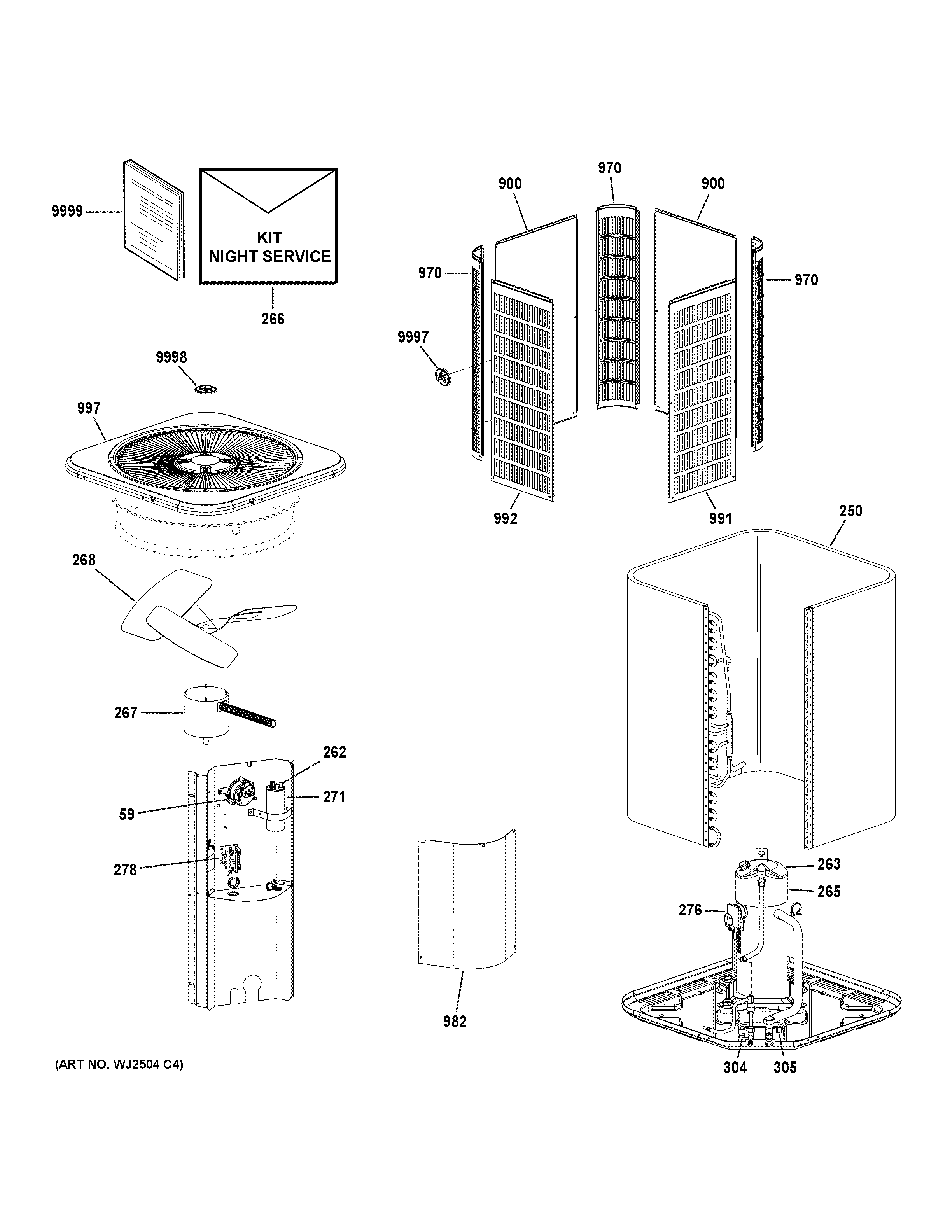

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
250COIL ASSY-(CTO)
262Dual Run Cap 70+10 @ 440V RND
263104161-07 ABG039KAC Comp 230V-1 R410A
265104112-11 ZP40K6E-PFV-830 Comp 230V-1
266100484-31 Kit-RFC (.083)
267100483-43 Cond Fan MTR 1/4HP 208/230-1
268100060-21 FAN ASSY
27189M93 GE 100335-28 Dual Run Capacitor 55+5
276LG HARNESS-COMP MOLDED PLUG
278CONTACTOR-SPST 35FLA/40RES
304VALVE-BALL 7/8 X 7/8
305VALVE-SERVICE 3/8"
900PNL LOUVER CTR 28 X 36-(CTO)
970POST CORNER 36H-(CTO)
982COVER, CONTROL PNL-(CTO)
991PNL LOUVER RT – 28B X 36H-(CTO)
992PNL LOUVER LT 28 X 36-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
