NS17A18SA452A ROOM AIR CONDITIONER

NS17A18SA452A ROOM AIR CONDITIONER

Written by

in

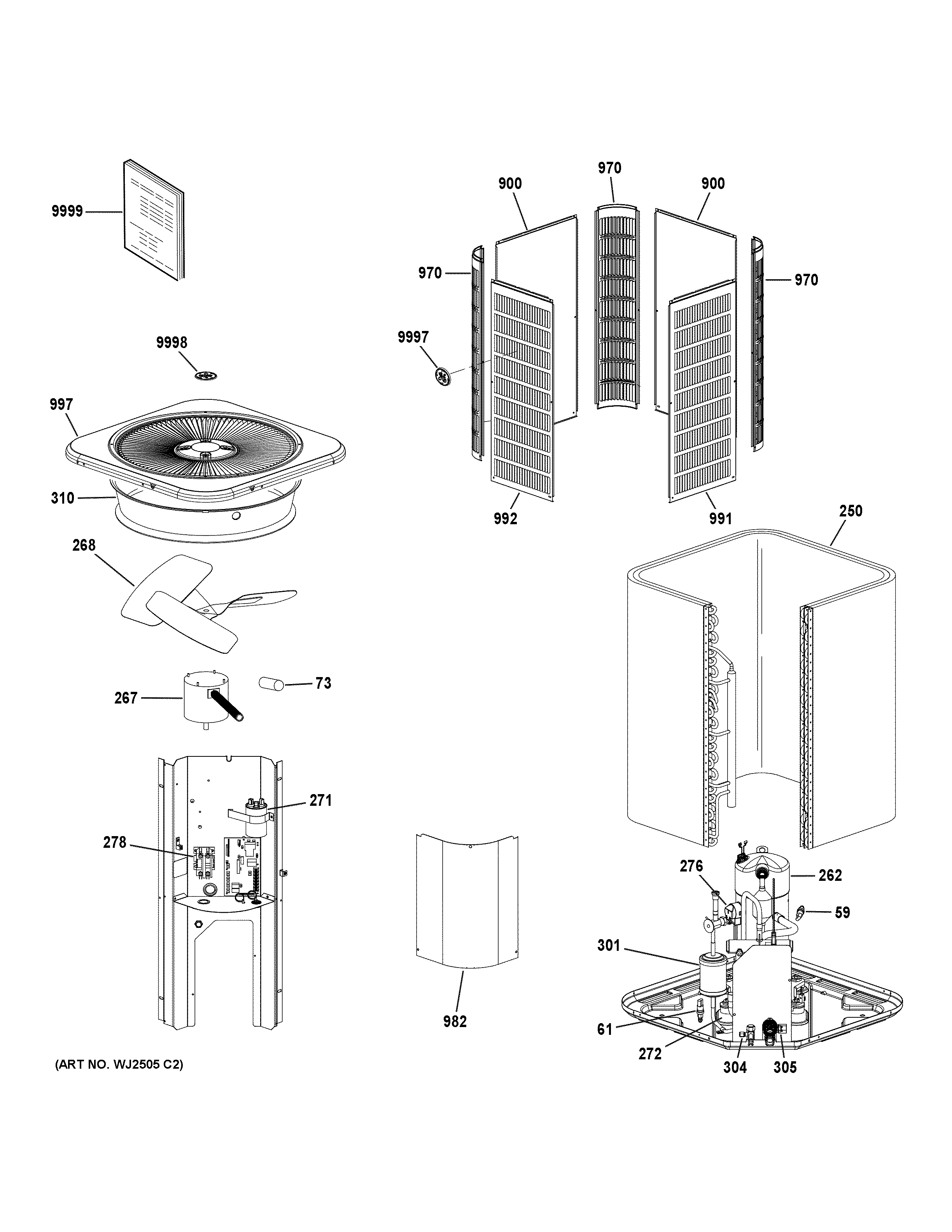

NS17A18SA452A ROOM AIR CONDITIONER

Products

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
61100087-17 SWITCH – LOW PRESSURE (90psi)
73Bolt Sleeve-(CTO)
250COIL ASSY-(CTO)
262107003-01 C0 ZP14K7E-PFV R410A/230/1
267100483-33 Cond Fan MTR 1/6HP 208-230-1
268FAN 2 BLADE 24 PITCH CCW
271Dual Run Cap 35+5 @ 440V ROUND
272GROMMET-COMPRESSOR-(CTO)
276HARNESS – COMPRESSOR: MOLDED PLUG
278CONTACTOR-SPST 25FLA/35RES
30195M52 GE 100214-03 (R410A)
304VALVE-SERVICE 3/4"-
305VALVE-SERVICE 3/8"
310ORIFICE RING (22 I.D. X 6)
900PNL LOUVER CTR 28 X 28-(CTO)
970POST CORNER 28H-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RT -28B X 28H-(CTO)
992PNL LOUVER LT 28 X 28-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
