NS17A24SA452A ROOM AIR CONDITIONER

Products

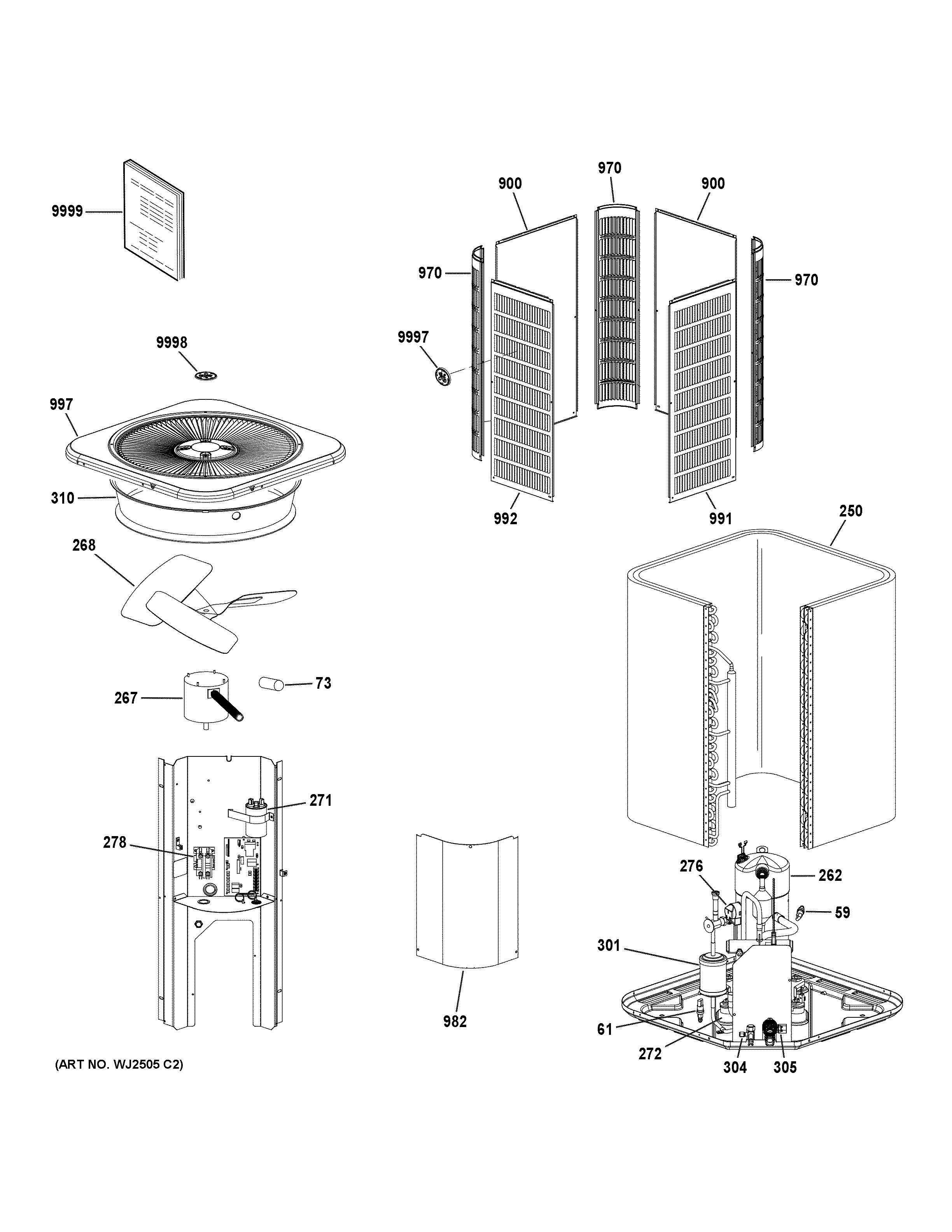

Position	Product
59	100087-12 Switch-High Pressure (590PSI)
61	100087-17 SWITCH – LOW PRESSURE (90psi)
73	Bolt Sleeve-(CTO)
250	COIL ASSY-(CTO)
262	C0 ZP20K7E-PFV R410A/230/1
267	100483-33 Cond Fan MTR 1/6HP 208-230-1
268	100060-23 Fan Assy
271	Dual Run Cap 35+5 @ 440V ROUND
272	GROMMET-COMPRESSOR-(CTO)
276	HARNESS – COMPRESSOR: MOLDED PLUG
278	CONTACTOR-SPST 25FLA/35RES
301	95M52 GE 100214-03 (R410A)
304	VALVE-SERVICE 3/4"-
305	VALVE-SERVICE 3/8"
310	ORIFICE RING (22 I.D. X 6)
900	PNL LOUVER CTR 28 X 36-(CTO)
970	POST CORNER 36H-(CTO)
982	COVER, CTRL PNL(ARMSTRONG)-(CTO)
991	PNL LOUVER RT – 28B X 36H-(CTO)
992	PNL LOUVER LT 28 X 36-(CTO)
997	PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997	SIDE GE BADGE
9998	TOP GE BADGE
9999	PM SERVICE INSTRUCTIONS
