NS17A36SA451A ROOM AIR CONDITIONER

NS17A36SA451A ROOM AIR CONDITIONER

Written by

in

NS17A36SA451A ROOM AIR CONDITIONER

Products

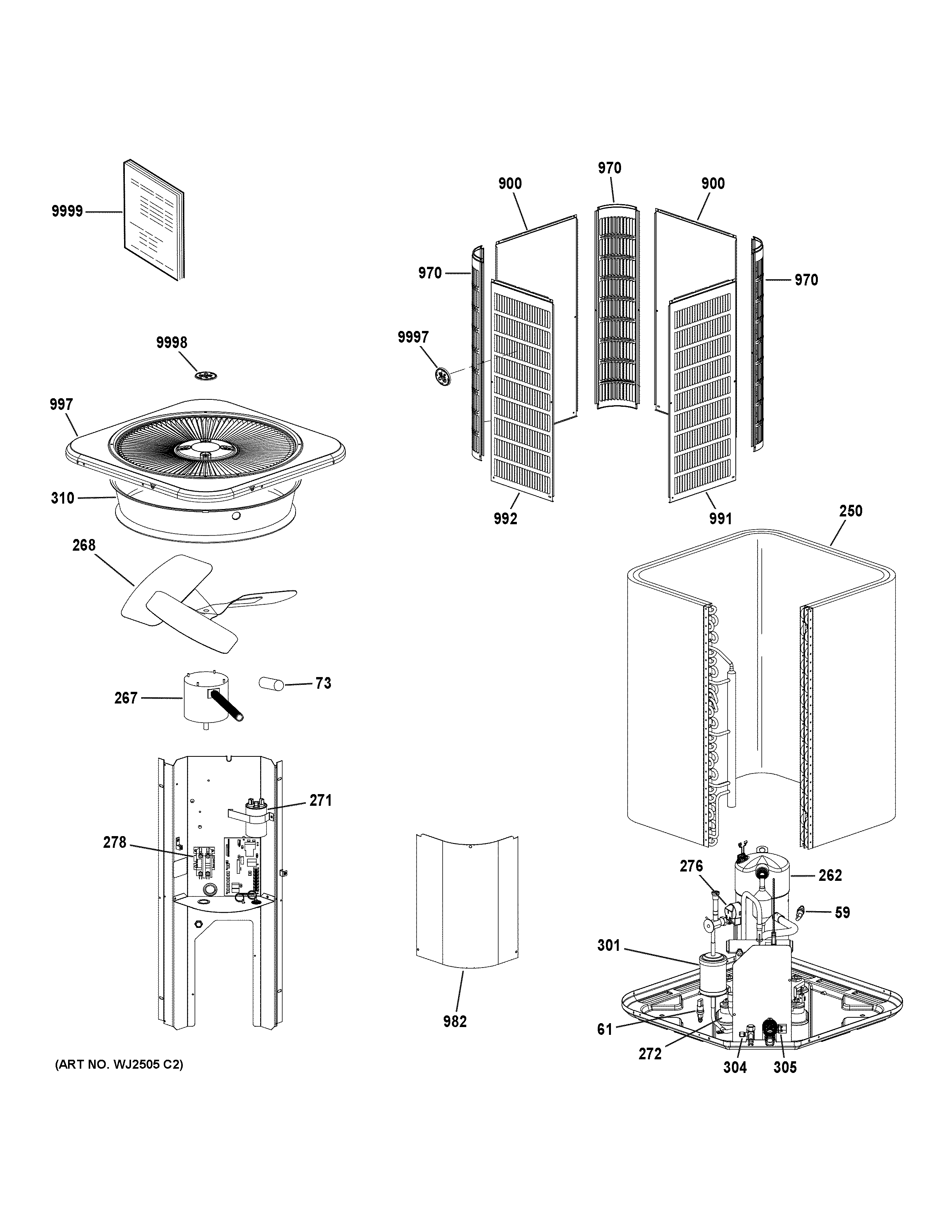

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
61100087-17 SWITCH – LOW PRESSURE (90psi)
73Bolt Sleeve-(CTO)
250COIL ASSY-(CTO)
262107003-08 C0 ZP31K7E-PFV R410A/230/1
26718D79 GE 620351-01 Motor Kit 1/3 HP 208
268100060-23 Fan Assy
271Dual Run Cap 40+10 @ 440V RND
272GROMMET-COMPRESSOR-(CTO)
276HARNESS-COMP MOLDED PLUG-(CTO)
278CONTACTOR-SPST 25FLA/35RES
30195M52 GE 100214-03 (R410A)
304VALVE-SERVICE 7/8"
305VALVE-SERVICE 3/8"
310ORIFICE RING (22 I.D. X 6)
900PNL LOUVER CTR 28 X 36-(CTO)
970POST CORNER 36H-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RT – 28B X 36H-(CTO)
992PNL LOUVER LT 28 X 36-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
