NS17A42SA452A ROOM AIR CONDITIONER

Products

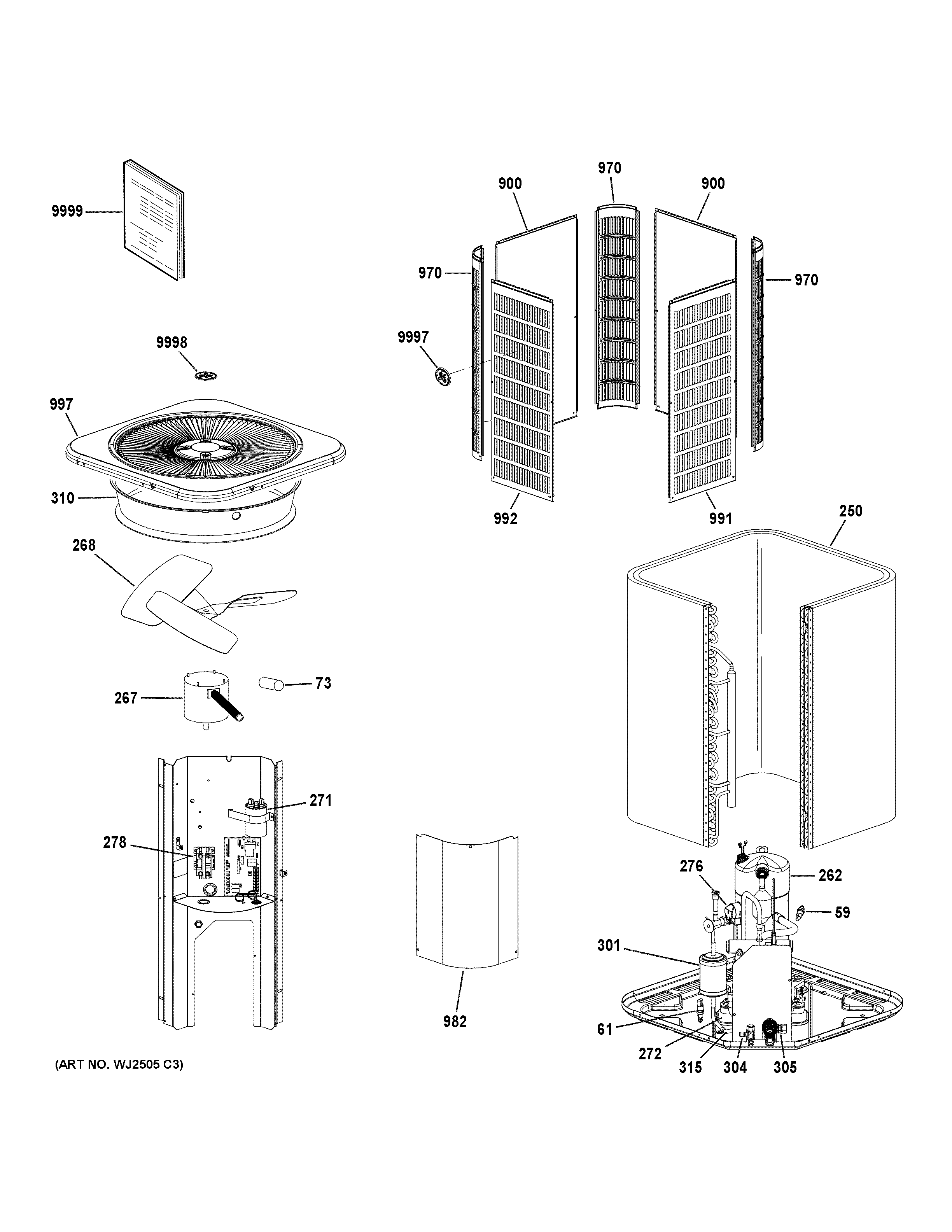

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
61100087-17 SWITCH – LOW PRESSURE (90psi)
73Bolt Sleeve-(CTO)
250619159-06 COIL ASSY
262C0 ZP36K7E-PFV R410A/230/1
26769W97 GE 1/3 HP Motor
268100017-10 Fan Assy
271Dual Run Cap 40+10 @ 440V RND
272GROMMET-COMPRESSOR-(CTO)
276HARNESS-COMP MOLDED PLUG-(CTO)
278CONTACTOR-SPST 35FLA/40RES
30195M52 GE 100214-03 (R410A)
304VALVE-BALL 7/8 X 7/8
305VALVE-SERVICE 3/8"
310ORIFICE RING (22 I.D. X 6)
315CC Heater 40W 240V
900PNL LOUVER CTR 32 X 32(GE)-(CTO)
970POST CORNER 32H (ARMSTRONG)-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RT 32BX32(GE)-(CTO)
992PANEL LOUVER LEFT 32 X 32 (ge)-(CTO)
997PNL-TOP LRG(32.25 X 32.25)BLK UM-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
