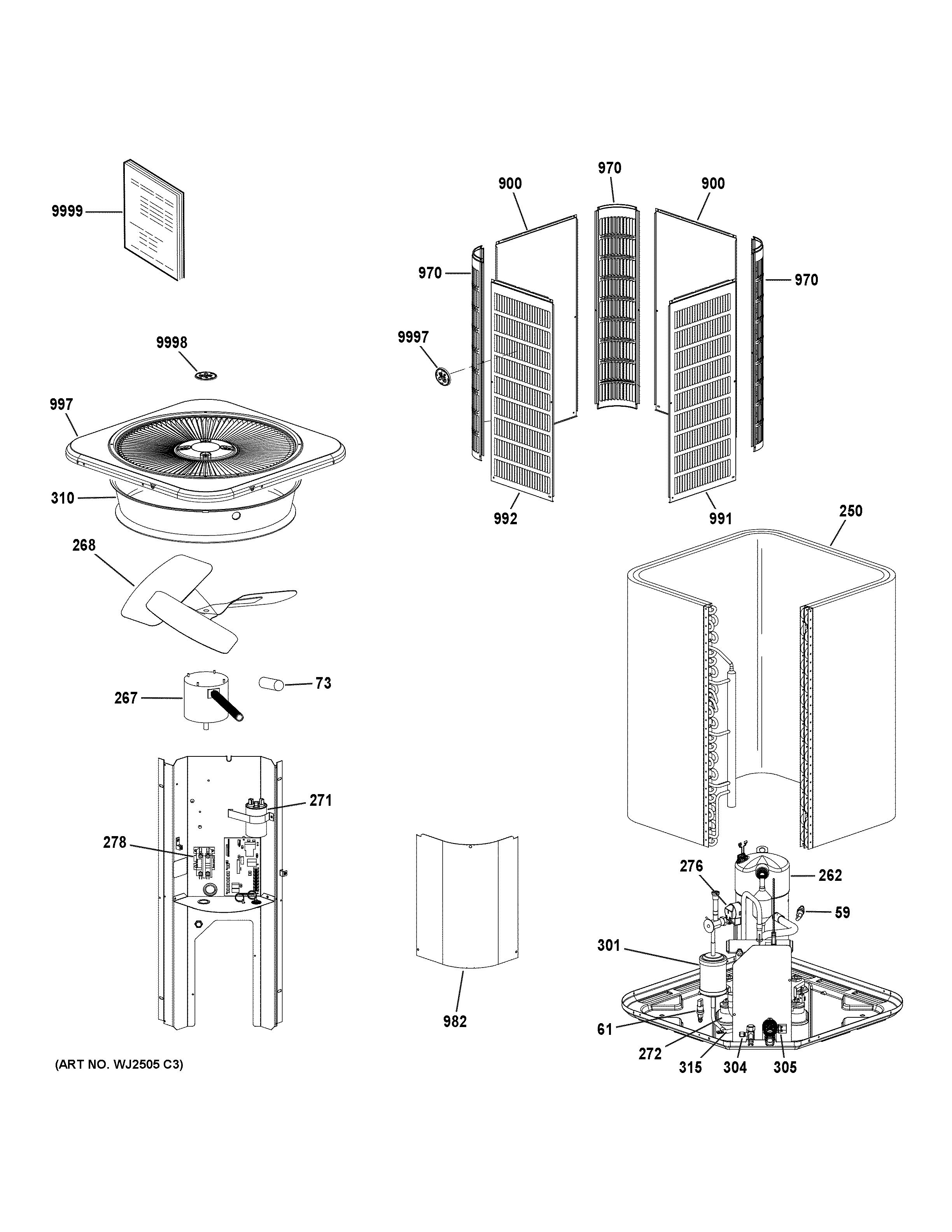

NS17A48SA452A ROOM AIR CONDITIONER

Products

Position	Product
59	100087-12 Switch-High Pressure (590PSI)
61	100087-17 SWITCH – LOW PRESSURE (90psi)
73	Bolt Sleeve-(CTO)
250	619159-08 REPAIR COIL ASSY (623074-02)
262	ZP42K7E-PFV R410A/230/1
267	100483-43 Cond Fan MTR 1/4HP 208/230-1
268	100060-21 FAN ASSY
271	Dual Run Cap 45+10 440V ROUND
272	GROMMET-COMPRESSOR-(CTO)
276	HARNESS-COMPRESSOR: MOLDED PLUG
278	CONTACTOR-SPST 35FLA/40RES
301	95M52 GE 100214-03 (R410A)
304	VALVE-BALL 7/8 X 7/8
305	VALVE-SERVICE 3/8"
310	ORIFICE RING (22 I.D. X 6)
315	CC Heater 40W 240V
900	PNL LOUVER CTR 28X42(GE)-(CTO)
970	POST CORNER 42H-(CTO)
982	COVER, CTRL PNL(ARMSTRONG)-(CTO)
991	PNL LOUVER RT 28 X 42 (GE)-(CTO)
992	PNL LOUVER LT 28 X 42(GE)-(CTO)
997	PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997	SIDE GE BADGE
9998	TOP GE BADGE
9999	PM SERVICE INSTRUCTIONS
