NS17A60SA451A ROOM AIR CONDITIONER

Products

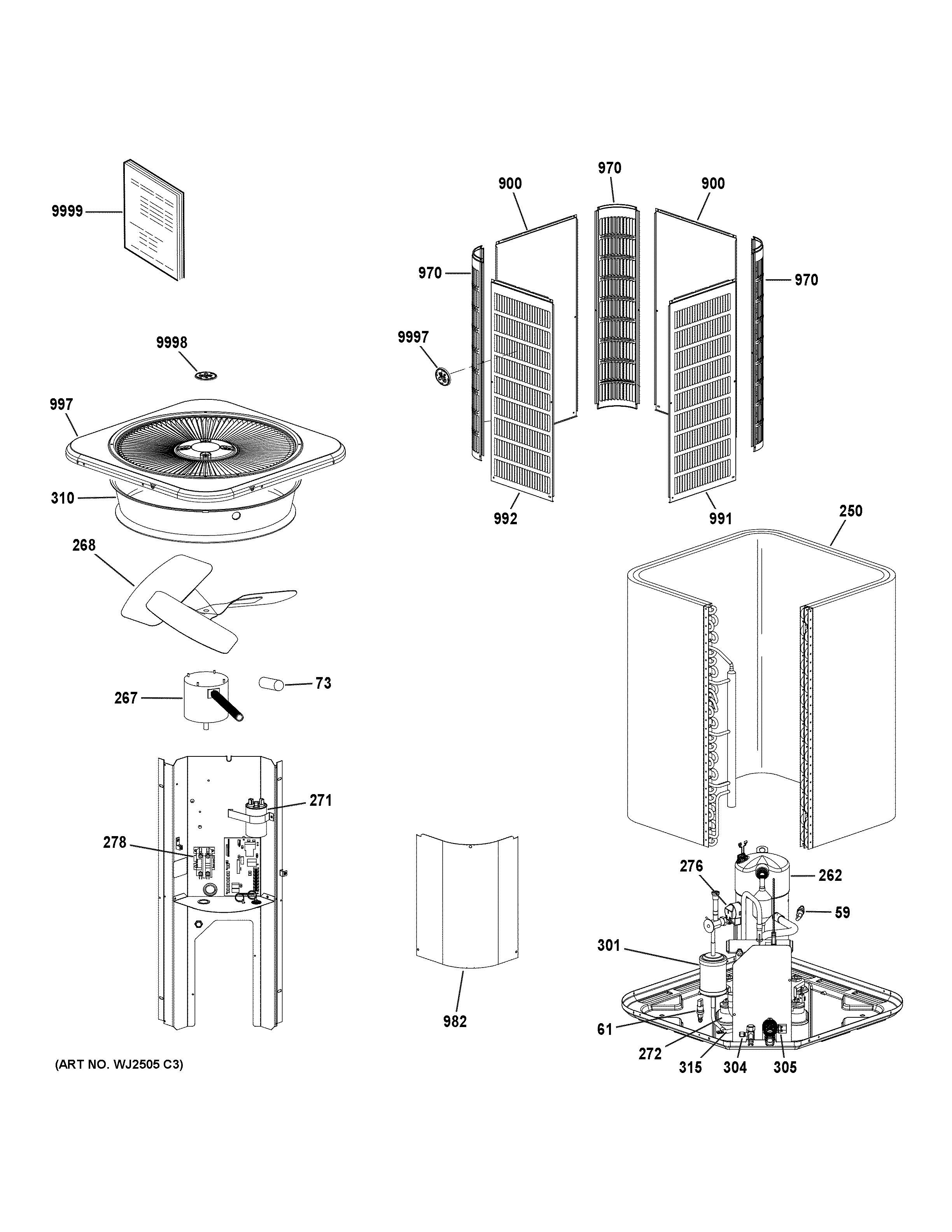

PositionProduct
59100087-12 Switch-High Pressure (590PSI)
61100087-17 SWITCH – LOW PRESSURE (90psi)
73Bolt Sleeve-(CTO)
250COIL ASSY-(CTO)
262107003-15 C0 ZP51K7E-PFV R410A/230/1
26769W97 GE 1/3 HP Motor
268Fan Assy
271Dual Run Cap 70+10 @ 440V RND
272GROMMET-COMPRESSOR-(CTO)
276HARNESS-COMPRESSOR: MOLDED PLUG
278CONTACTOR-SPST 35FLA/40RES
30195M52 GE 100214-03 (R410A)
304VALVE-BALL 7/8 X 7/8
305VALVE-SERVICE 3/8"
310ORIFICE RING (26×6 DEEP)
315CC Heater 40W 240V
900PNL LOUVER CTR 32 X 42-(CTO)
970POST CORNER 42H-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RT 32B X 42H-(CTO)
992PNL LOUVER LT 32 X 42-(CTO)
997PNL-TOP LRG(32.25 X 32.25)BLK UM-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
