NS17H24SA451A ROOM AIR CONDITIONER

Products

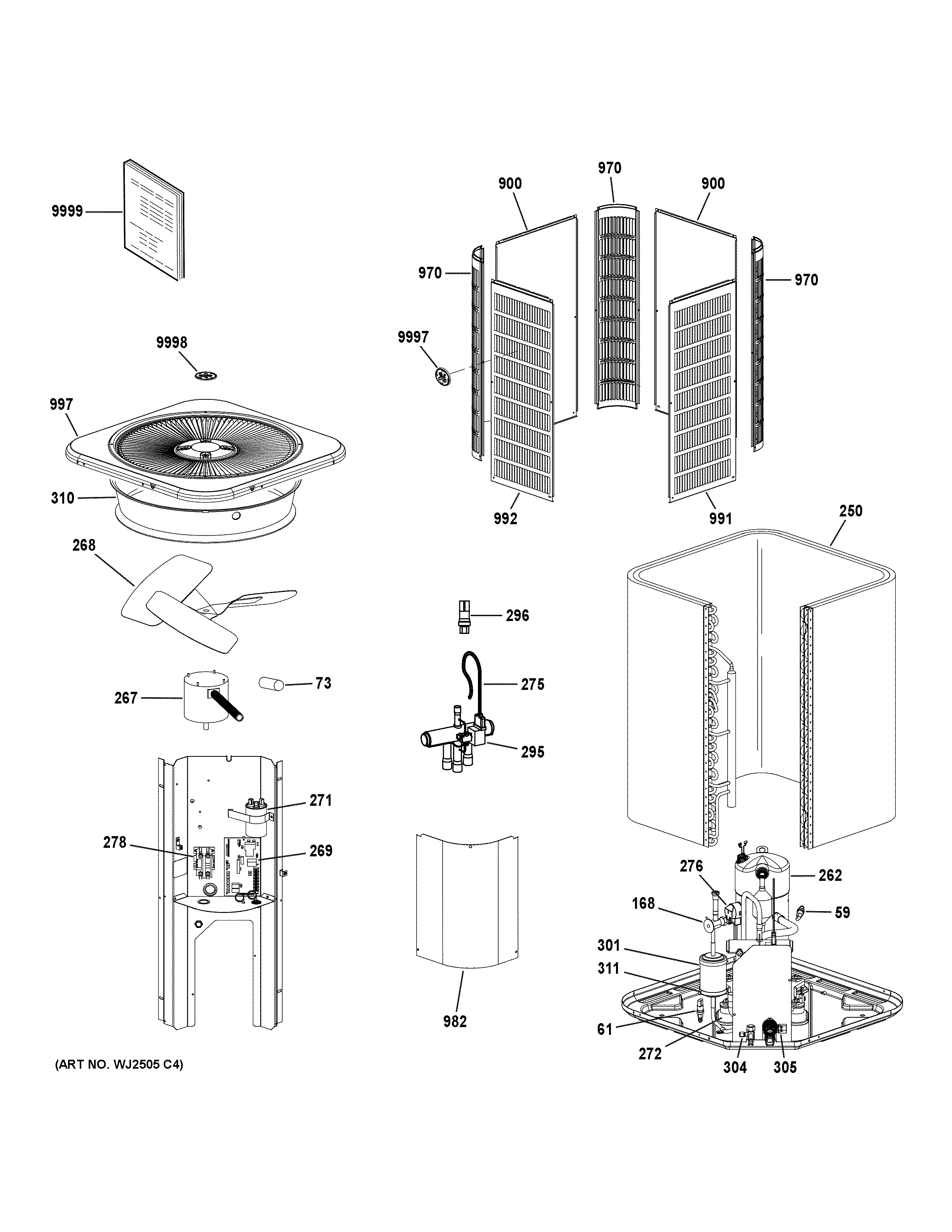

PositionProduct
59Switch-High Pressure (590PSI)
61Switch – Low Pressure (40psi)
73Bolt Sleeve-(CTO)
16811Y29 GE Valve Expansion Check R410A 3T
250COIL-ASSY (018/024/030)
262C0 ZP20K7E-PFV R410A/230/1
267MTR-FAN 1/8HP 230V 60HZ 825RPM
268FAN 2 BLADE 24 PITCH CCW
269CIRCUIT BOARD DEFROST CONTROL
271Dual Run Cap 35+5 @ 440V ROUND
272GROMMET-COMPRESSOR-(CTO)
275Harness – Reversing Valve
276HARNESS – COMPRESSOR: MOLDED PLUG
278CONTACTOR-SPST 25FLA/35RES
295100145-07 VALVE-REVERSING 1/2 X 3/4
296SENSOR-DEFROST (HARNESS)
301Muffler
304VALVE-SERVICE 3/4"-
305VALVE-SERVICE 3/8"
310ORIFICE RING (22 I.D. X 6)
311R100215-07 DRIER – BiFlow (R410A)
900PANEL LOUVER CENTER 28 X 42 -(CTO)
970POST-CORNER 42H -(CTO)
982COVER-CONTROL PNL-(CTO)
991PANEL LOUVER RIGHT 28 X 42-(CTO)
992PANEL LOUVER LEFT 28 X 42 -(CTO)
997PNL TOP 28 X 28-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
