NS17H30SA451A ROOM AIR CONDITIONER

Products

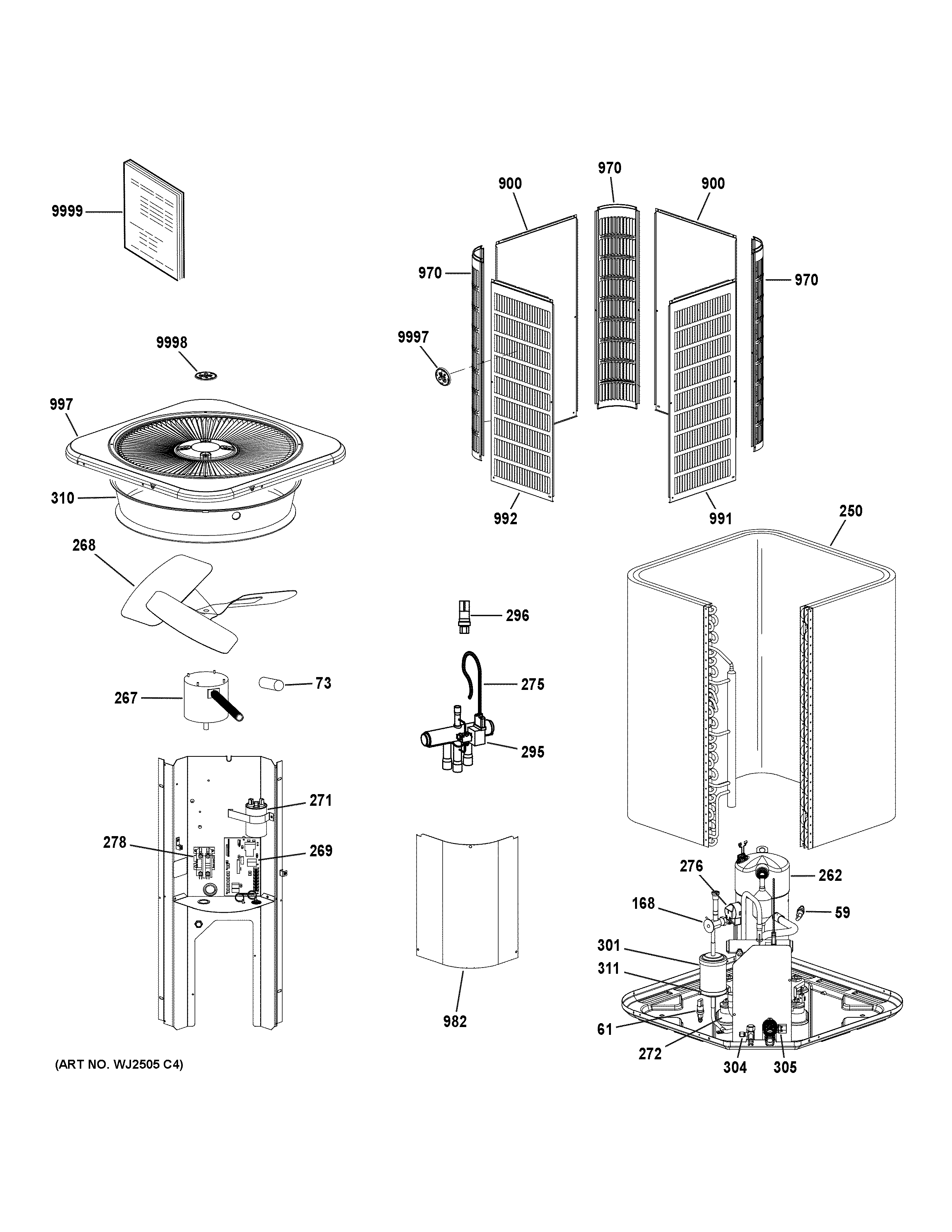

Position	Product
59	Switch-High Pressure (590PSI)
61	Switch – Low Pressure (40psi)
73	Bolt Sleeve-(CTO)
168	VALVE-EXPANSION CHECK – R410A
250	COIL-ASSY (018/024/030)
262	LG APH025KAA R410A/230/1
267	MTR-FAN 1/8HP 230V 60HZ 825RPM
268	FAN 2 BLADE 24 PITCH CCW
269	CIRCUIT BOARD DEFROST CONTROL
271	CAPACITOR 40+5 @ 440V ROUND
272	GROMMET-COMPRESSOR-(CTO)
275	Harness-Reversing Valve
276	HARNESS – COMPRESSOR: MOLDED PLUG
278	CONTACTOR-SPST 25FLA/35RES
295	100145-07 VALVE-REVERSING 1/2 X 3/4
296	SENSOR-DEFROST (HARNESS)
301	Muffler
304	VALVE-SERVICE 3/4"-
305	VALVE-SERVICE 3/8"
310	ORIFICE RING (22 I.D. X 6)
311	R100215-07 DRIER – BiFlow (R410A)
900	PANEL LOUVER CENTER 28 X 42 -(CTO)
970	POST-CORNER 42H -(CTO)
982	COVER-CONTROL PNL-(CTO)
991	PANEL LOUVER RIGHT 28 X 42-(CTO)
992	PANEL LOUVER LEFT 28 X 42 -(CTO)
997	PNL TOP 28 X 28-(CTO)
9997	SIDE GE BADGE
9998	TOP GE BADGE
9999	PM SERVICE INSTRUCTIONS
