NS17H36SA451A ROOM AIR CONDITIONER

Products

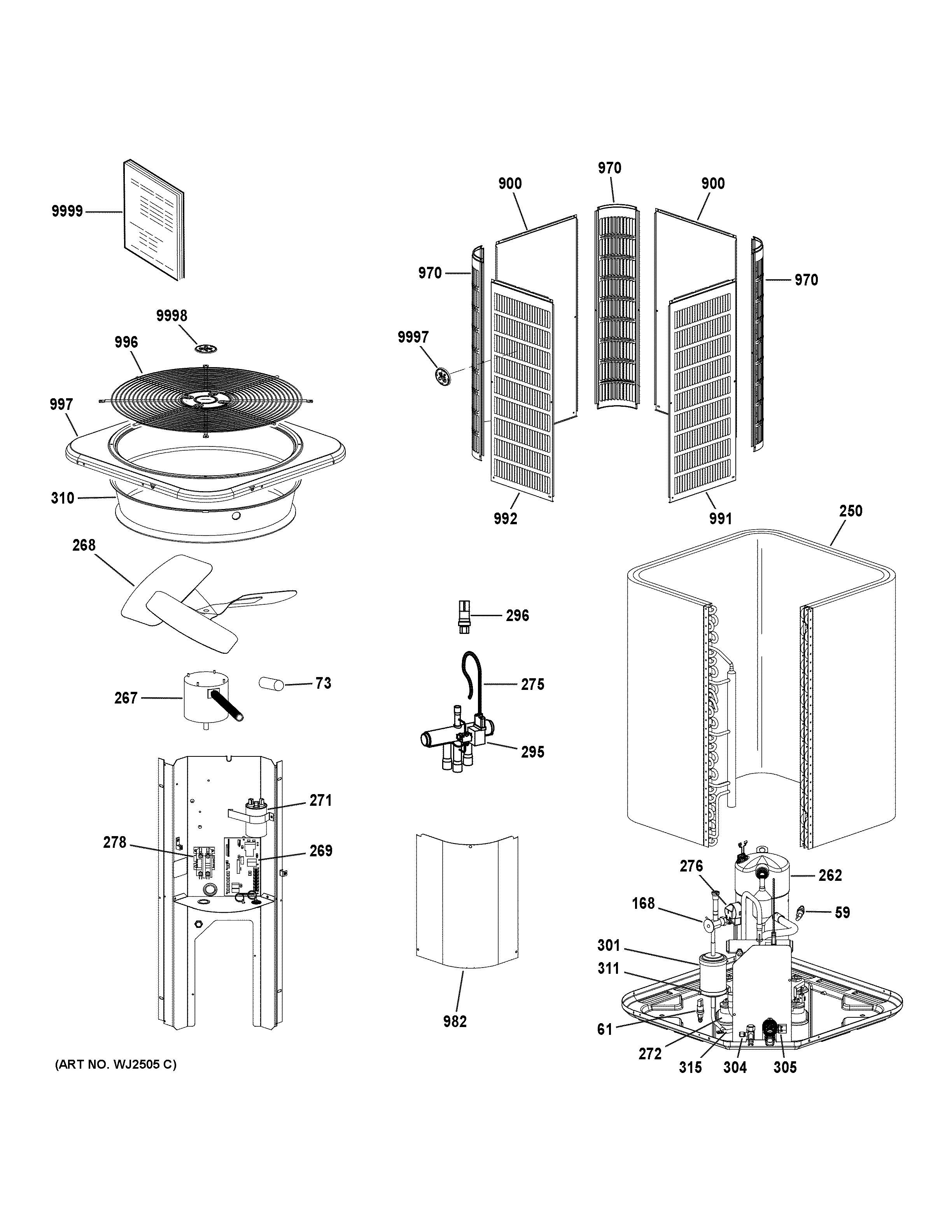

PositionProduct
59Switch-High Pressure (590PSI)
61Switch – Low Pressure (40psi)
73Bolt Sleeve-(CTO)
16811Y29 GE Valve Expansion Check R410A 3T
250COIL-ASSY ML16XP1-036
262LG APH031KAA R410A/230/1
26723V41 GE Fan Motor 1/5HP 230V 60Hz 825RPM
268100017-13 FAN 26" 3-BLADE 24-PITCH CCW
269CIRCUIT BOARD DEFROST CONTROL
271Dual Run Cap 45+7.5 MFD 440V
272GROMMET-COMPRESSOR-(CTO)
275Harness-Reversing Valve
276LG HARNESS-COMP MOLDED PLUG
278CONTACTOR-SPST 25FLA/35RES
295100145-12 Valve-Reversing 1/2 x 7/8
296SENSOR-DEFROST (HARNESS)
301Muffler
304VALVE-SERVICE 7/8"
305VALVE-SERVICE 3/8"
310ORIFICE RING (26×6 DEEP)
311R100215-07 DRIER – BiFlow (R410A)
315CC Heater 40W 240V
900PNL LOUVER CENTER 32 X 32-(CTO)
970POST CORNER 32H-(CTO)
982COVER-CONTROL PANEL
991PNL LOUVER RIGHT 32BX32H-(CTO)
992PNL LOUVER LEFT 32 X 32-(CTO)
996FAN GUARD-(CTO)
997PNL TOP (32.25 X 32.25)-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
