NS17H48SA451A ROOM AIR CONDITIONER

Products

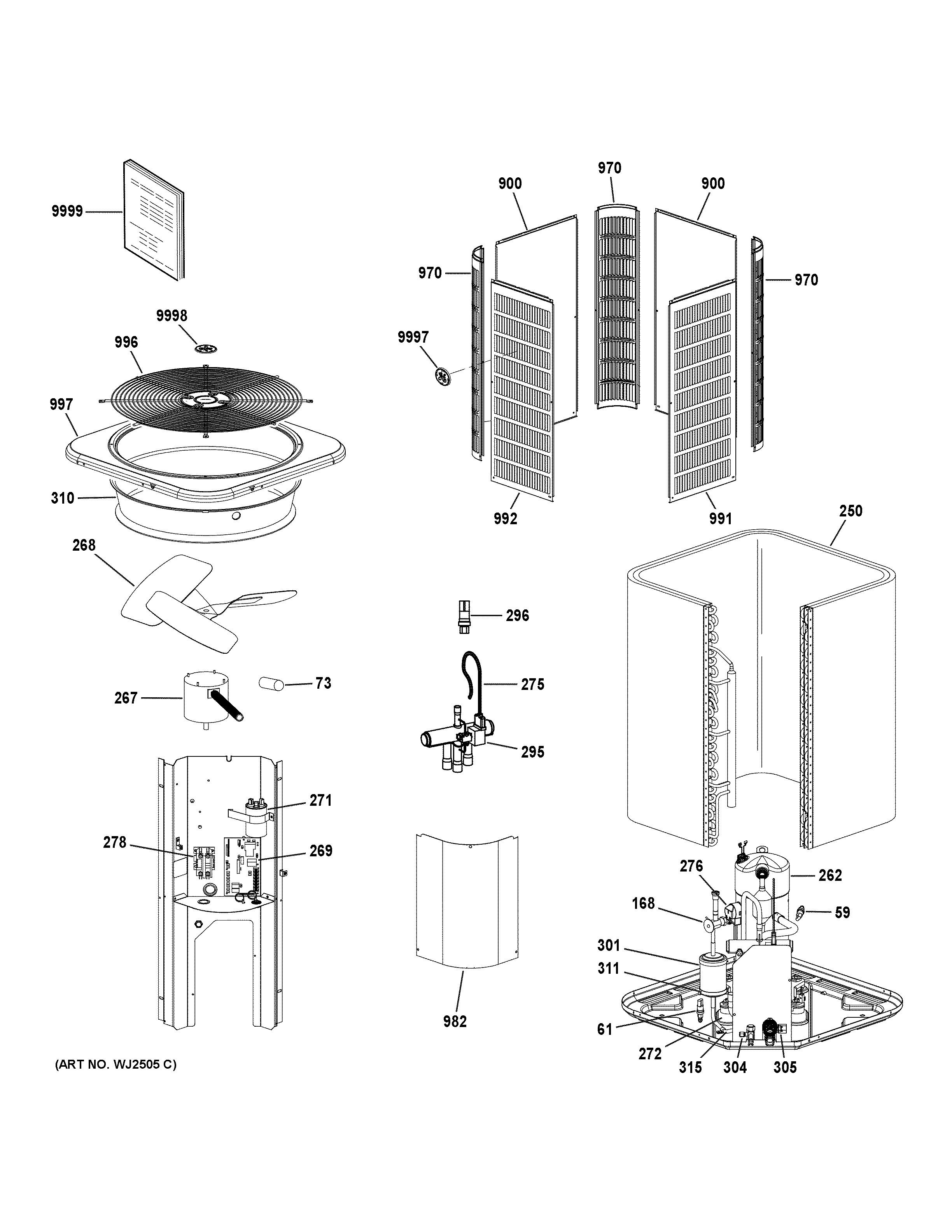

PositionProduct
59Switch-High Pressure (590PSI)
61Switch – Low Pressure (40psi)
73Bolt Sleeve-(CTO)
168EXPANSION VLV ASSY 4 Ton
250REPAIR COIL (042/048)
262ZP42K7E-PFV R410A/230/1
26718D79 GE 620351-01 Motor Kit 1/3 HP 208
268Fan Assy
269CIRCUIT BOARD DEFROST CONTROL
271Dual Run Cap 45+10 440V ROUND
272GROMMET-COMPRESSOR-(CTO)
275Harness – Reversing Valve
276HARNESS-COMPRESSOR: MOLDED PLUG
278CONTACTOR-SPST 35FLA/40RES
295100145-12 Valve-Reversing 1/2 x 7/8
296SENSOR-DEFROST (HARNESS)
301Muffler
304VALVE-SERVICE 7/8"
305VALVE-SERVICE 3/8"
310ORIFICE RING (26×6 DEEP)
311R100215-07 DRIER – BiFlow (R410A)
315CC Heater 40W 240V
900PANEL LOUVER CENTER 32 X 36 -(CTO)
970POST-CORNER 36H (ARMSTRONG)-(CTO)
982COVER-CONTROL PANEL
991PANEL LOUVER RIGHT 32B X 36H -(CTO)
992PANEL LOUVER LEFT 32 X 36 -(CTO)
996FAN GUARD-(CTO)
997PNL TOP (32.25 X 32.25)-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
