NS17H60SA451A ROOM AIR CONDITIONER

Products

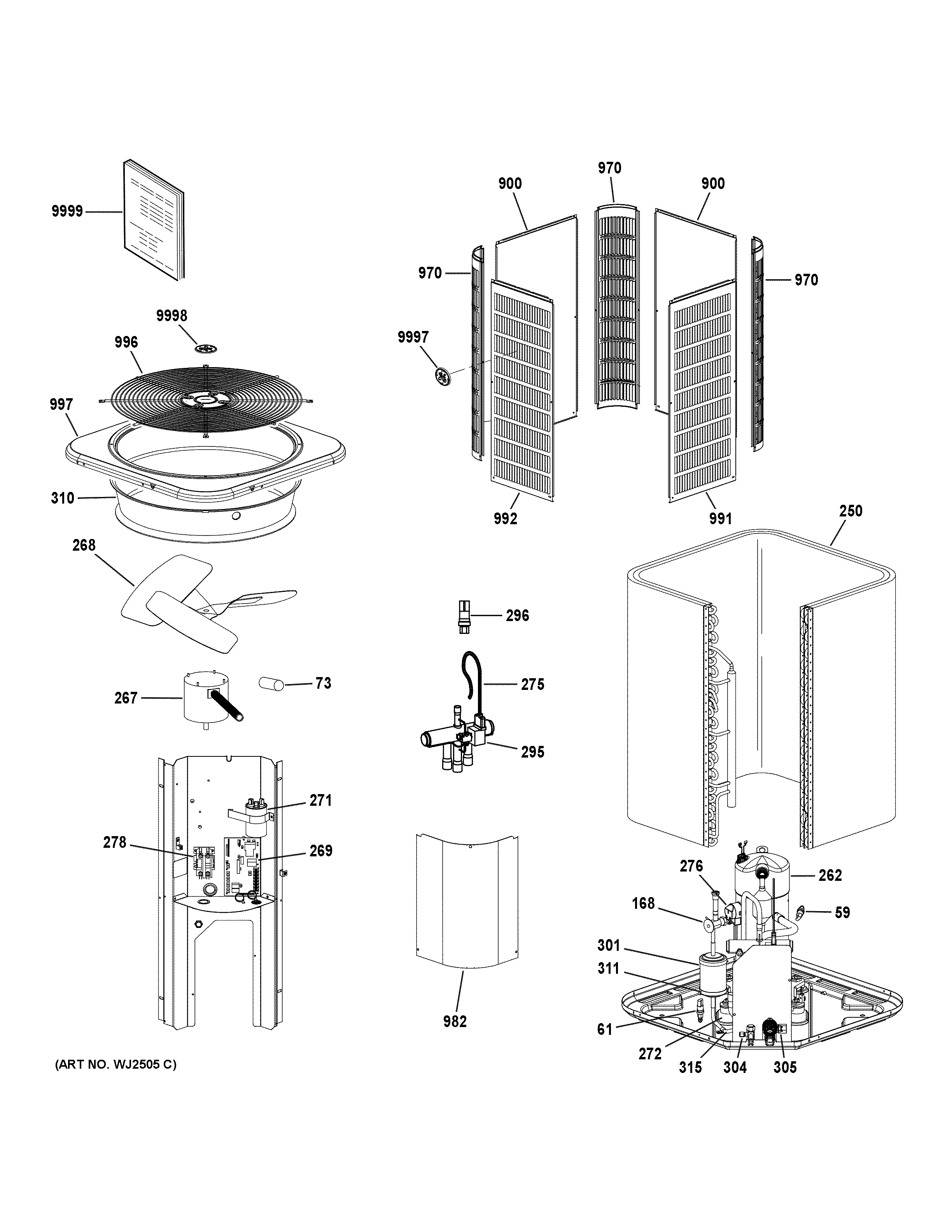

PositionProduct
59Switch-High Pressure (590PSI)
61Switch – Low Pressure (40psi)
73Bolt Sleeve-(CTO)
168104413-03 VALVE-EXP/CK-R410A 5T
250REPAIR COIL ASSY (060
262LG ABH051KAA R410A/230/1
26718D79 GE 620351-01 Motor Kit 1/3 HP 208
268Fan Assy
269CIRCUIT BOARD DEFROST CONTROL
271Dual Run Cap 70+10 @ 440V RND
272GROMMET-COMPRESSOR-(CTO)
275Harness-Reversing Valve
276LG HARNESS-COMP MOLDED PLUG
278CONTACTOR-SPST 35FLA/40RES
295100145-09 VALVE-REVERSING (1/2 X 7/8)
296SENSOR-DEFROST (HARNESS)
301Muffler
30416U86 GE Valve Service 7/8" X 102831-11
305VALVE-SERVICE 3/8"
310ORIFICE RING (26×6 DEEP)
311R100215-07 DRIER – BiFlow (R410A)
315CC Heater 40W 240V
900PNL LOUVER CENTER 32 X 42-(CTO)
970POST CORNER 42H-(CTO)
982COVER-CONTROL PANEL
991PNL LOUVER LEFT 32 X 42-(CTO)
992PNL LOUVER RIGHT 32B X 42H-(CTO)
996FAN GUARD-(CTO)
997PNL TOP (32.25 X 32.25)-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
