NS18A36TA451A ROOM AIR CONDITIONER

NS18A36TA451A ROOM AIR CONDITIONER

Written by

in

NS18A36TA451A ROOM AIR CONDITIONER

Products

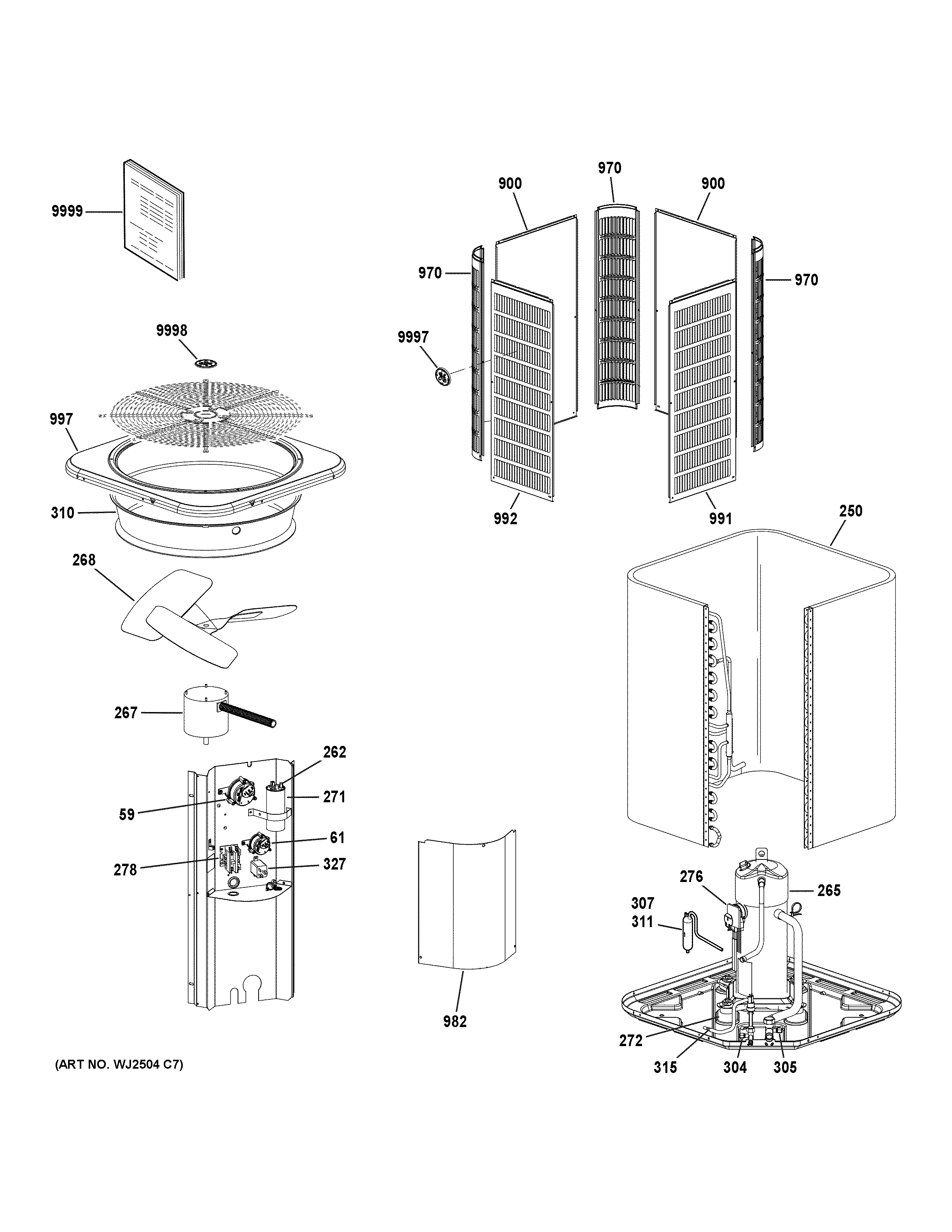

PositionProduct
59614285-06 KIT – HI PRESSURE SWITCH
61614285-04 KIT – LO PRESSURE SWITCH
250614262-08 COIL ASSY
26247A60 GE 01 Start Cap 88-108 Mfd 3
265107253-04 COMP ZPS30K7E-PFV R410A 230-1
267100483-33 Cond Fan MTR 1/6HP 208-230-1
268Fan Assy-(CTO)
271MP 100335-02 Dual Run Cap 30+5 370V ROUN
272LB-106528 COMPRESSOR MTG KIT
276HARNESS-COMP MOLDED PLUG-(CTO)
278CONTACTOR-SPST 25FLA/35RES
304VALVE-SERVICE 3/8"
305VALVE-SERVICE 7/8"
307100214-08 DRIER R410A – ONE WAY – 55G
310ORIFICE RING (22 I.D. X 6)
31188K44 GE Suction 3/4S 14Ci
315CC Heater 40W 240V
327P-8-3577 RELAY-POT
900PNL LOUVER CENTER 28 X 32 (GE)-(CTO)
970POST CORNER 32H (ARMSTRONG)-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RIGHT 28 X 32 (GE)-(CTO)
992PNL LOUVER LEFT 28 X 32 (GE)-(CTO)
997PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
