NS18A48TA451A ROOM AIR CONDITIONER

Products

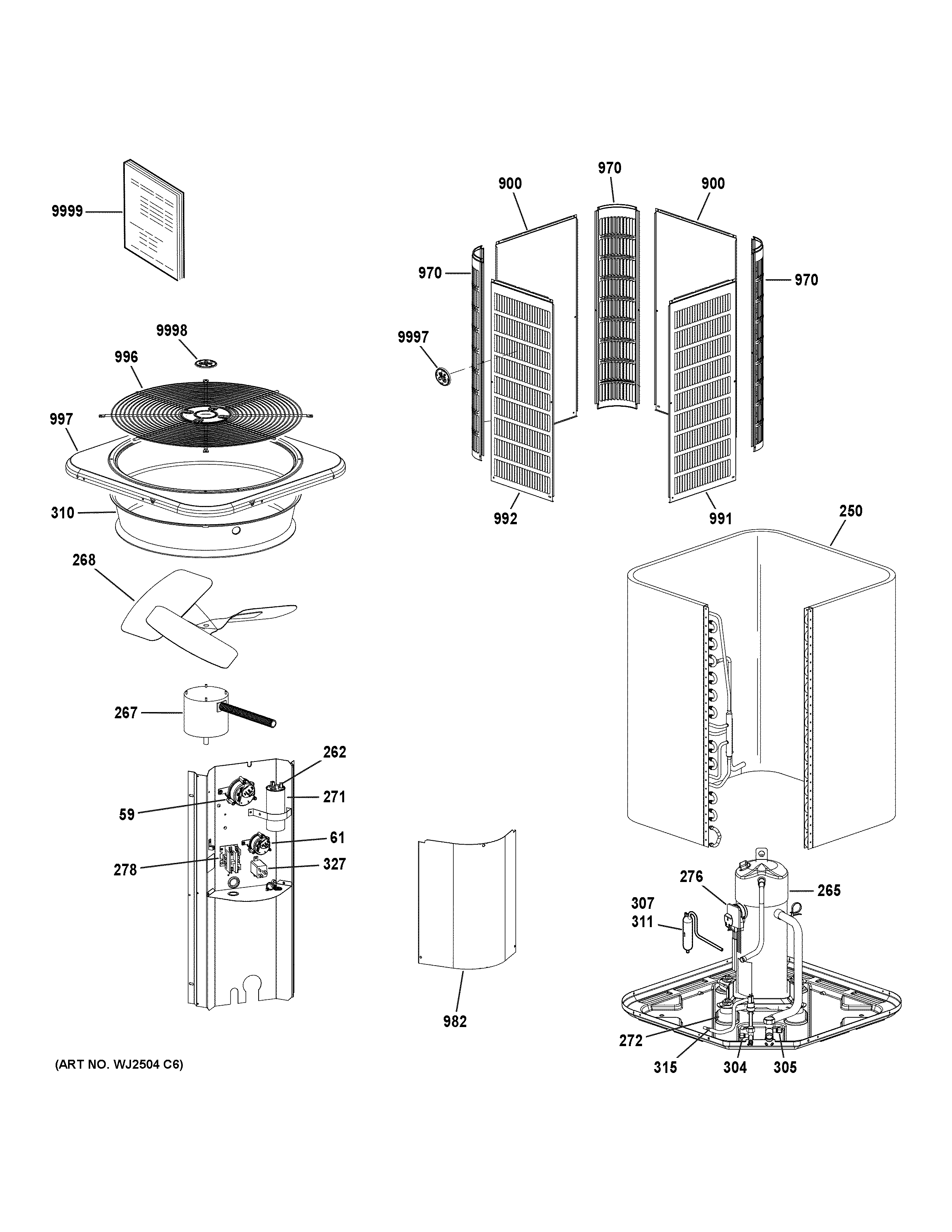

PositionProduct
59614285-06 KIT – HI PRESSURE SWITCH
61614285-04 KIT – LO PRESSURE SWITCH
250614262-06 COIL ASSY
26247A60 GE 01 Start Cap 88-108 Mfd 3
265107253-06 COMP ZPS40K7E-PFV R410A 230-1
26769W97 GE 1/3 HP Motor
268100017-10 Fan Assy
271100335-57 CAPACITOR-RUN 35+10 @ 440VAC
272LB-106528 COMPRESSOR MTG KIT
276HARNESS-COMP MOLDED PLUG-(CTO)
278CONTACTOR-SPST 35FLA/40RES
304VALVE-SERVICE 3/8"
305102831-10 VALVE-SERVICE 7/8" X 7/8"
307100214-08 DRIER R410A – ONE WAY – 55G
310ORIFICE RING (26×6 DEEP)
31188K44 GE Suction 3/4S 14Ci
315CC Heater 40W 240V
327P-8-3577 RELAY-POT
900PNL LOUVER CTR 32 X 32(GE)-(CTO)
970POST CORNER 32H (ARMSTRONG)-(CTO)
982COVER, CTRL PNL(ARMSTRONG)-(CTO)
991PNL LOUVER RT 32BX32(GE)-(CTO)
992PANEL LOUVER LEFT 32 X 32 (ge)-(CTO)
996FAN GUARD-(CTO)
997PNL-TOP LRG(32.25 X 32.25)BLK UM-(CTO)
9997SIDE GE BADGE
9998TOP GE BADGE
9999PM SERVICE INSTRUCTIONS
