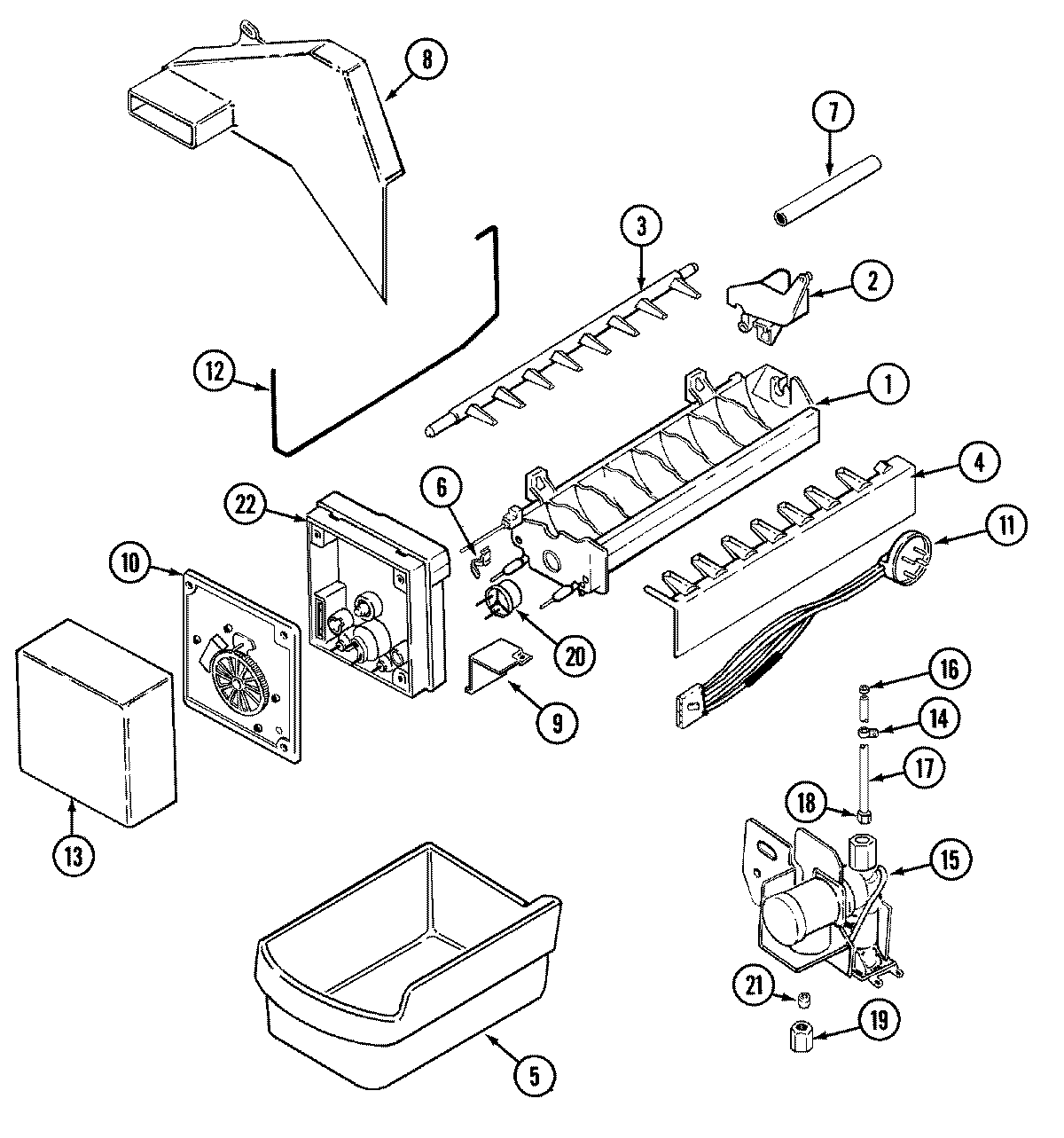

NS207PA 07 – OPTIONAL ICE MAKER KIT (ICE)

NS207PA 07 – OPTIONAL ICE MAKER KIT (ICE)

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP67001255 Whirlpool Ice Bucket
6WP2315522 Whirlpool Refrigerator Clip
7MAY 67666-8
8MAY 70198-1
8MAY 70198-3
8MAY 70198-2
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 95109-1
10MAY 400021-1
11MAY 70076-1
12MAY 68112-1
13MAY 68328-2
14SCREW
14MAY 23197-8
15MAY 401017-1
15MAY 61001019
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67579-6
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
21WP487627 Whirlpool Refrigerator Sleeve
22SCREW
22WP2195914 Whirlpool Refrigerator Ice Maker Housing
