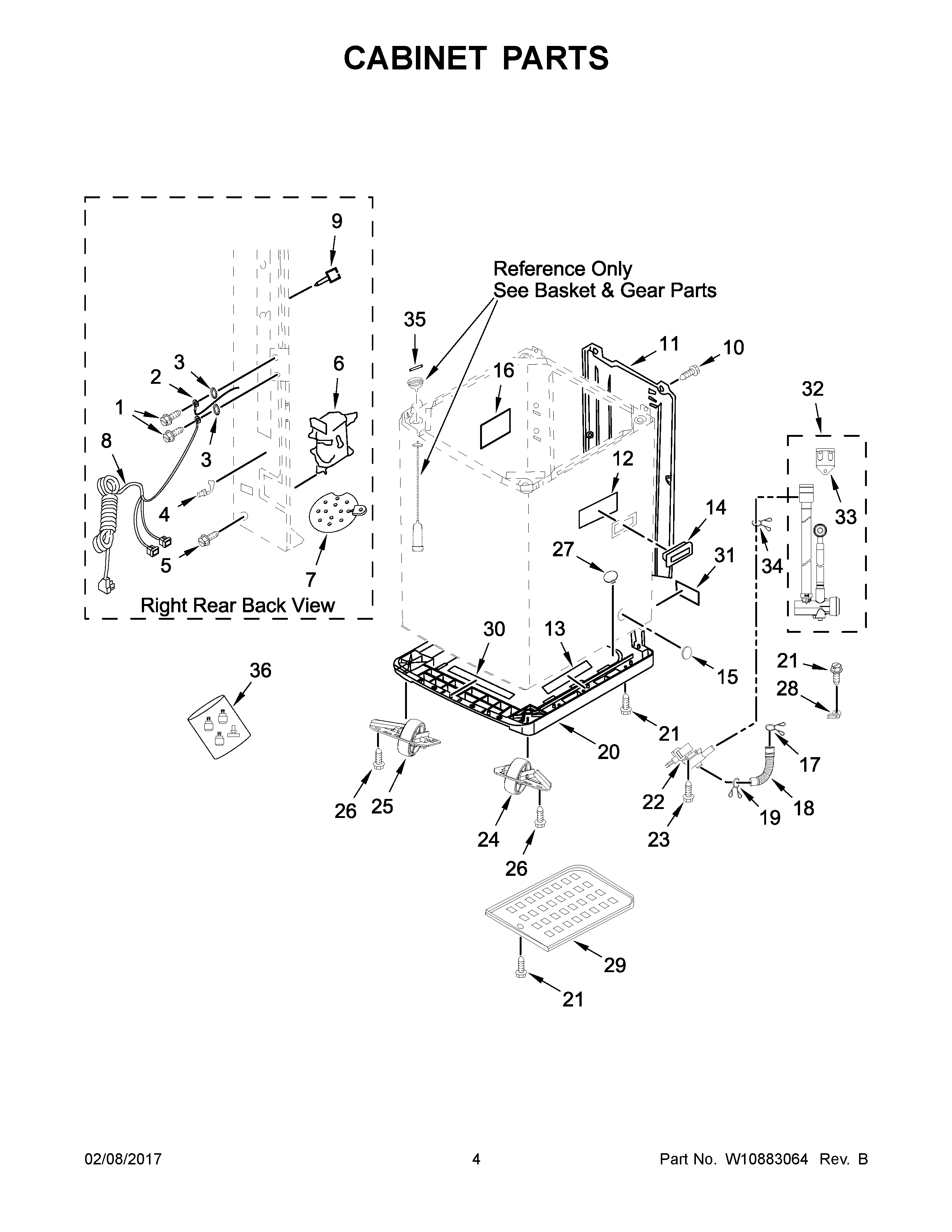

NTC3500FW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	WIRE, GROUND
3	WASHER, LOCK
4	STRAIN RELIEF
5	SCREW
6	CAPACITOR
7	SHIELD, CAPACITOR
8	POWER CORD
9	RETAINER, HARNESS
10	SCREW
11	PANEL, REAR
12	FOIL, ALUMINUM (HANDLE)
13	FOIL, ALUMINUM (LEFT & RIGHT BASE)
14	HANDLE
15	PLUG, CABINET
16	SOUND ABSORBER (CABINET)
17	CLAMP, HOSE
18	HOSE (TUB TO PUMP)
19	CLAMP, HOSE
20	BASE
21	SCREW
22	PUMP, DRAIN
23	SCREW
24	WHEEL CASTER (RIGHT)
25	WHEEL CASTER (LEFT)
26	SCREW
27	CUP, OVERFLOW HOPPER
28	CLAMP, WIRE
29	SOUND ABSORBER (BASE)
30	FOIL, ALUMINUM (FRONT BASE)
31	ABSORBER, IMPACT
32	HOSE COUPLER ASSEMBLY
33	BRACKET, DRAIN HOSE
34	CLAMP, HOSE
35	PIN, SUSPENSION RETAINER
36	FEET, LEVELING (SET OF 4)
