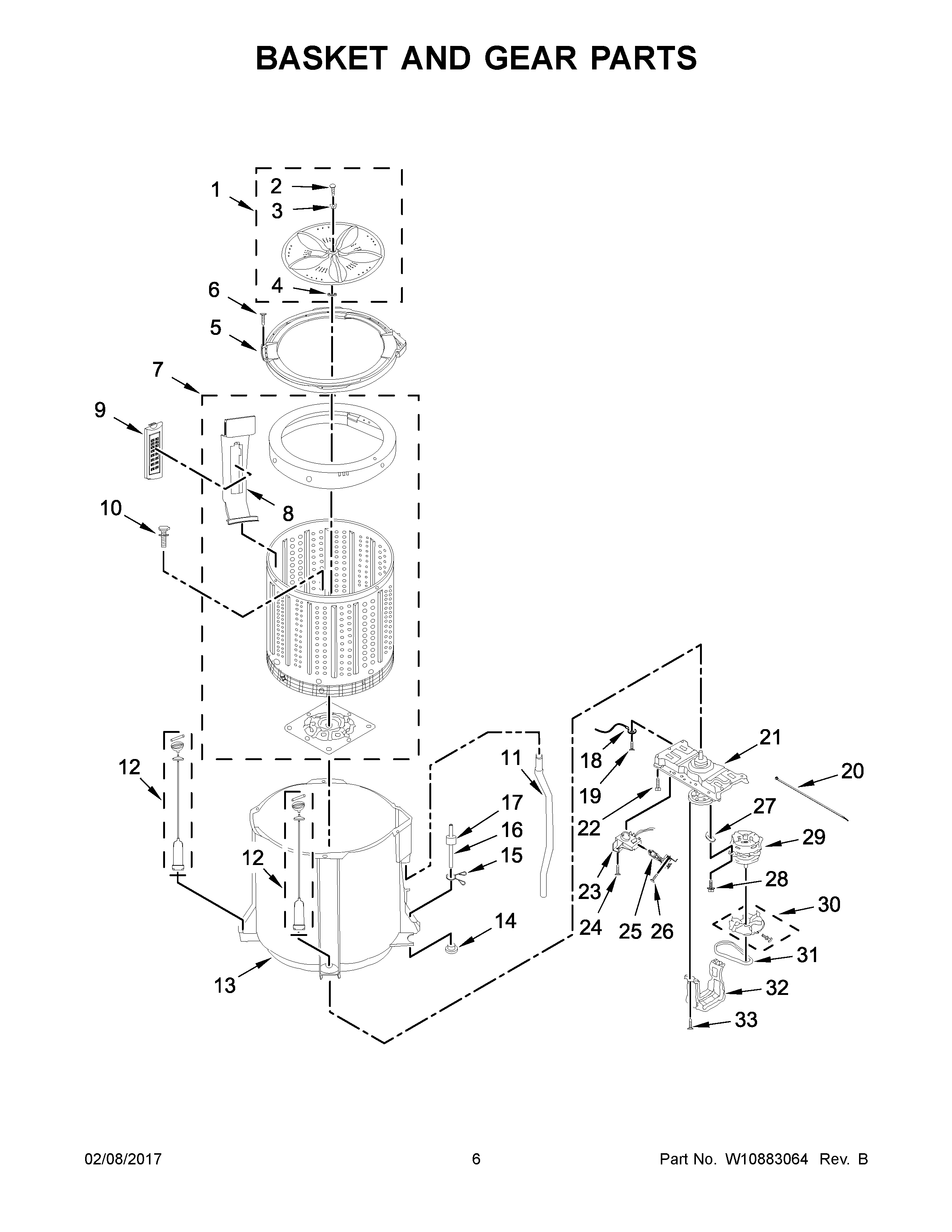

NTC3500FW0 04 – BASKET AND GEAR PARTS

Products

Position	Product
1	IMPELLER (COMPLETE)
2	SCREW, IMPELLER
3	WASHER, LOCK
4	WASHER, IMPELLER
5	TUB RING
6	SCREW
7	BASKET ASSEMBLY
8	RETAINER, LINT FILTER
9	FILTER, LINT
10	SCREW
11	HOSE, OVERFLOW
12	SUSPENSION DAMPER ASSEMBLY (INCLUDES 3 STANDARD, 1 MOTOR SIDE, 4 BALL SEATS AND 4 RETAINER PINS)
13	TUB
14	BOLT
15	CLAMP, HOSE
16	HOSE, PRESSURE SWITCH
17	SLEEVE, HOSE
18	WIRE, GROUND
19	SCREW
20	CABLE TIE
21	GEARCASE
22	SCREW
23	ACTUATOR, SHIFT
24	SCREW
25	BRACKET, ACTUATOR
26	SCREW
27	SPACER (MOTOR)
28	SCREW
29	MOTOR, DRIVE
30	PULLEY, MOTOR
31	BELT, DRIVE
32	BRACKET, MOTOR SUPPORT
33	SCREW
