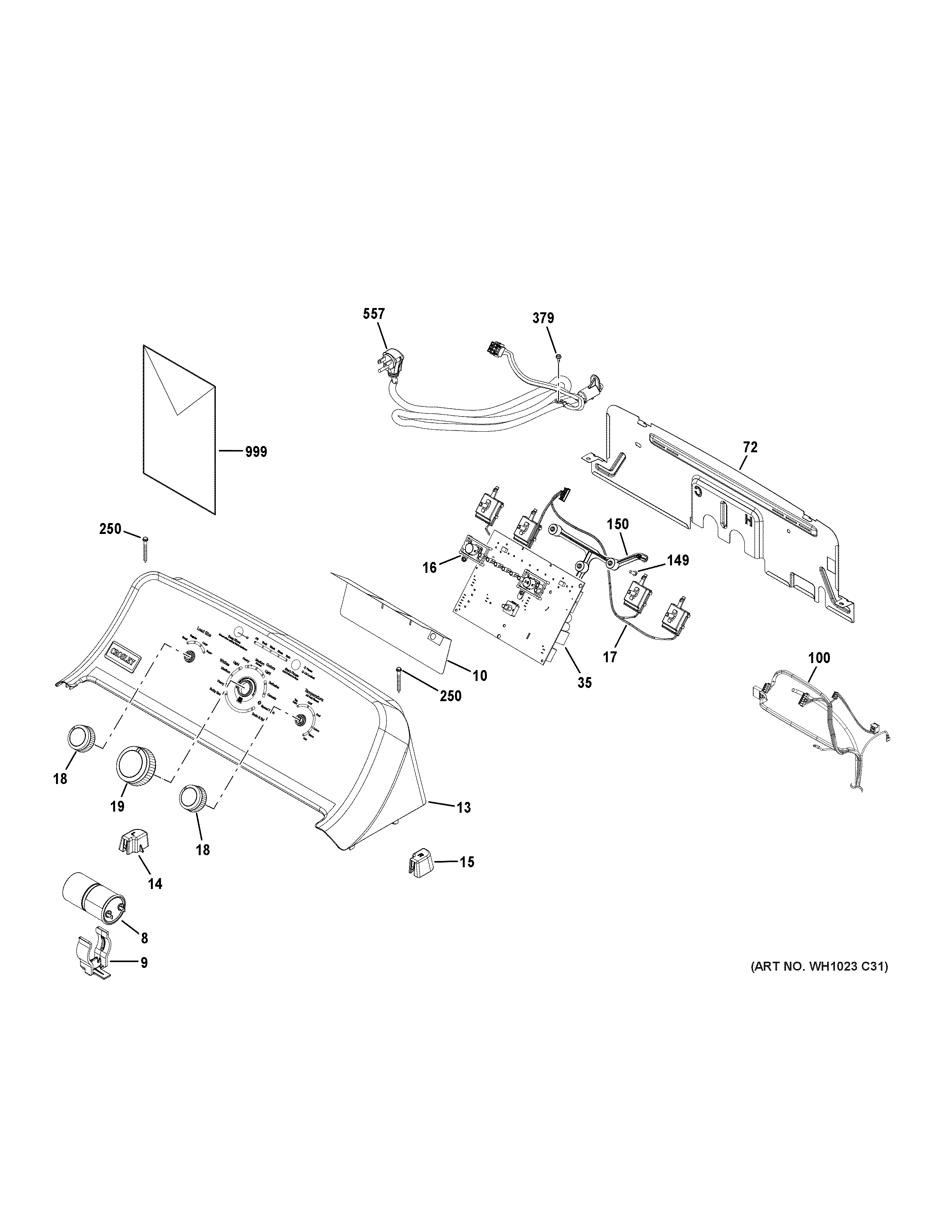

NTW3811ST0WW CONTROLS & BACKSPLASH

Products

PositionProduct
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
13CONTROL PANEL TL WASHER CONSERVATOR
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X24376 GE Washer Button
17SELECTOR SWITCH
18KNOB ROTARY (HOTPOINT)
19WH01X25355 GE Main Knob
35MAIN CONTROL BOARD W/INSTRUCTI
72WH10X28195 GE Rear Control Panel
100WH19X27494 GE Main Harness Yellow
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
557WH08X28843 GE Power Cord
999PM MINI MANUAL AND WIRING
999PM QUICK OWNERS MANUAL
