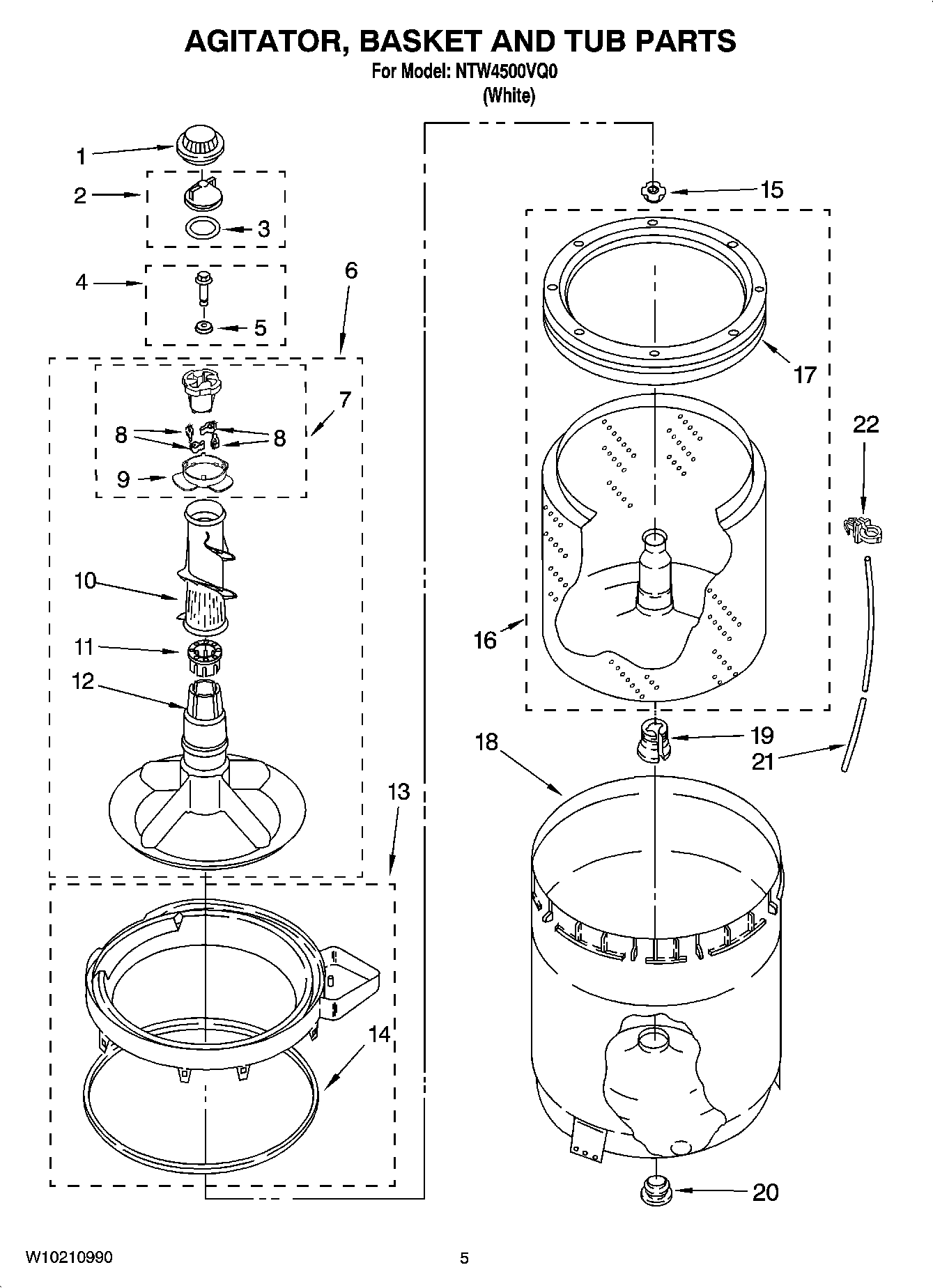

NTW4500VQ0 03 – AGITATOR, BASKET AND TUB PARTS

NTW4500VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW4500VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 3355758
2MAY 3354733
3MAY W10072840
4Screw & Washer
5MAY 3949550
6MAY 3348117
7MAY 3363663
8Dog, Agitator (4)
9BEARING, CAM
10MOVER, CLOTHES
11SPACER, THRUST
12MAY 3347288
13Ring, Tub
14MAY 3976308
15MAY 21366
16MAY 8526016
17Ring, Balance
18MAY 63849
19Block, Drive
20MAY 383727
21MAY 3347780
22Clip, Harness (1)
