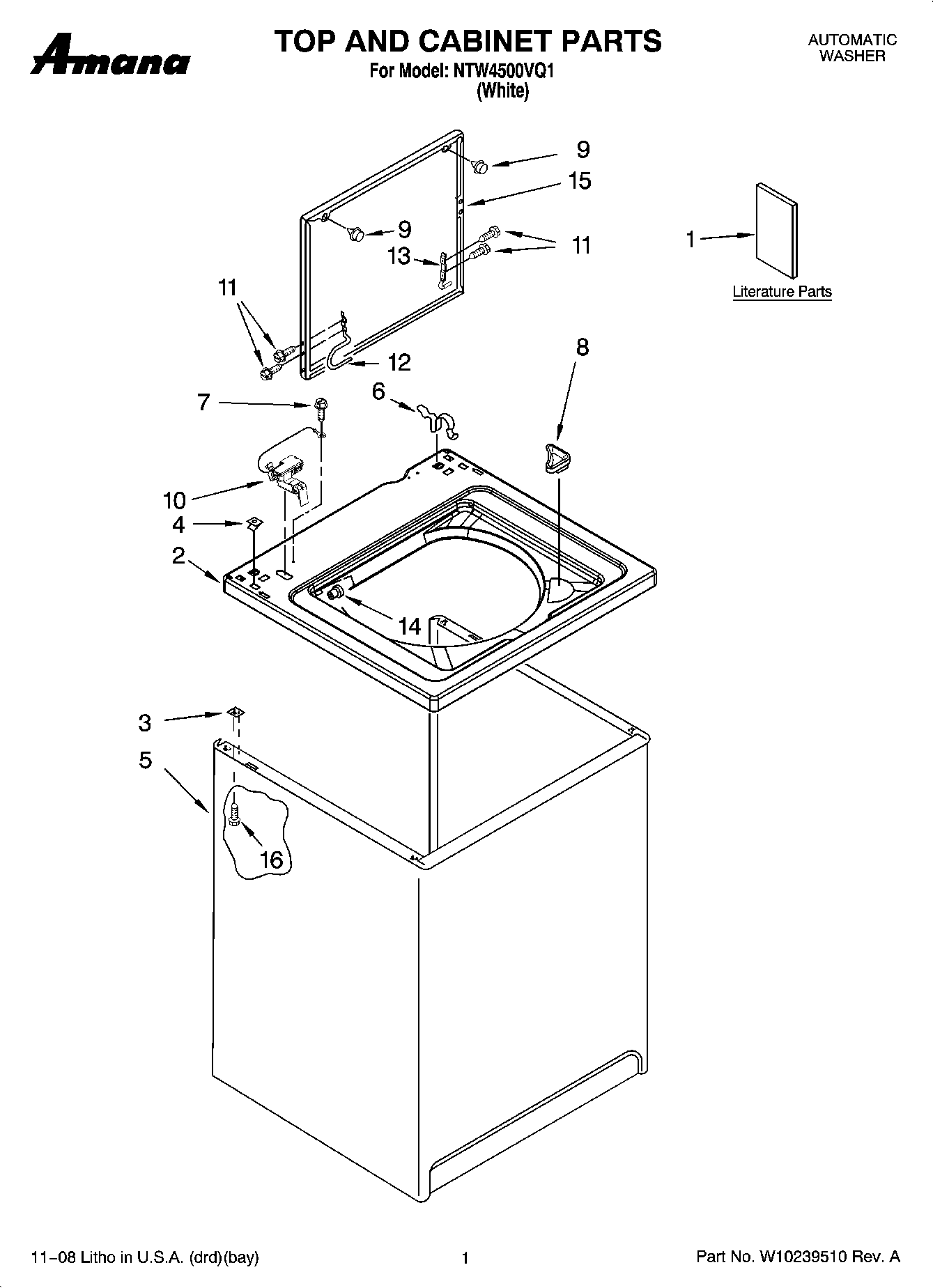

NTW4500VQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions (English)
1	MAY W10199994
1	MAY W10192188
1	MAY W10192187
1	MAY W10192183
1	MAY W10192182
1	MAY W10192181
1	MAY W10200662
2	MAY 8318064
3	MAY 62750
4	Nut, Push-In
5	Cabinet
6	MAY 62780
7	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8	MAY 3362952
9	MAY 9724509
10	MAY 8318084
11	Screw And Washer
12	MAY 8318088
13	HINGE, LID
14	Hinge, Bearing (2)
15	MAY 8541774
16	SCREW
