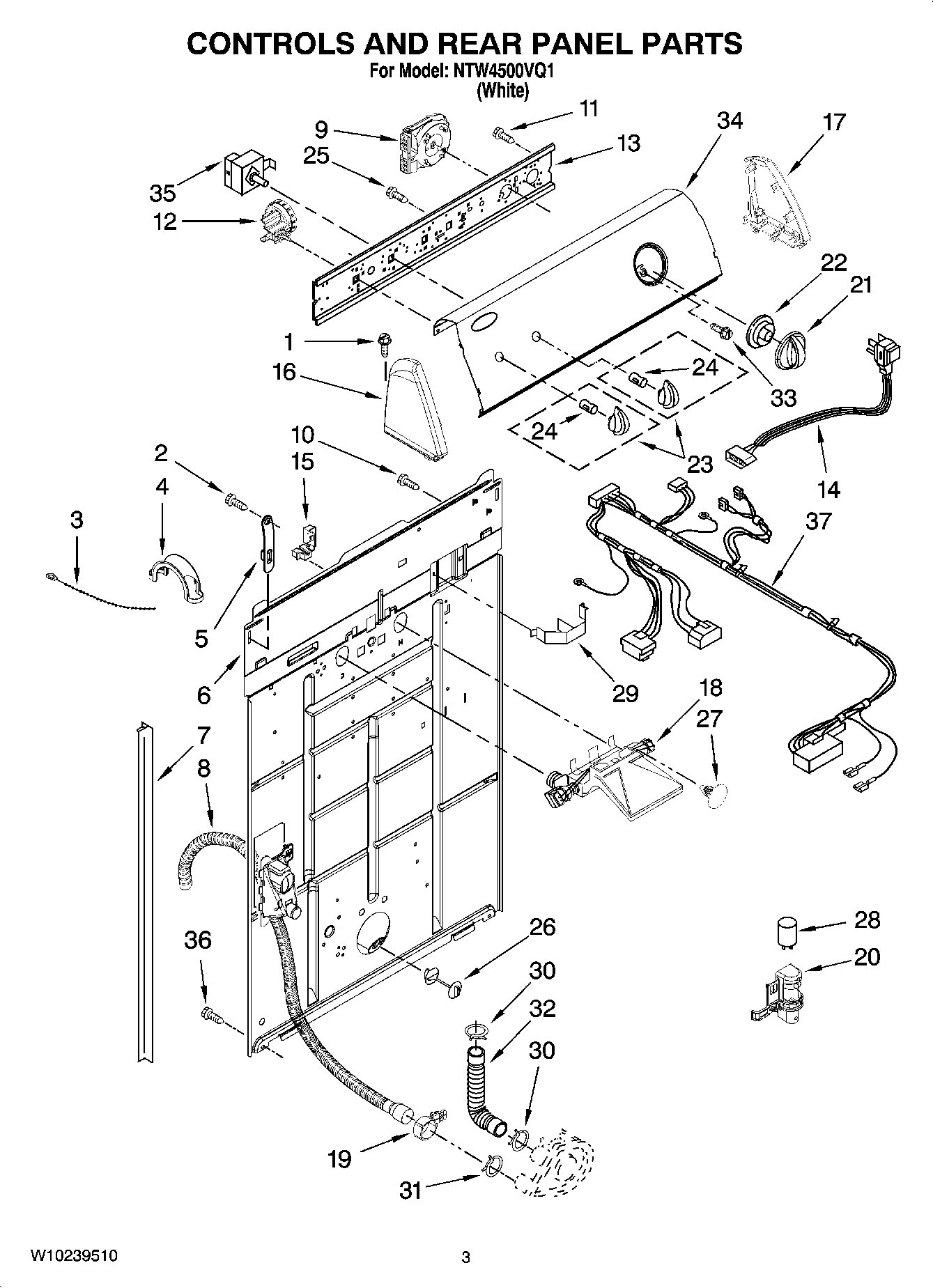

NTW4500VQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Screw, Console
2	SCREW
3	MAY 3347868
4	U-Bend
5	Strap, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY W10199989
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577844
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	Valve, Water Inlet W/Vacuum Break
19	MAY 8541668
20	MAY 8318046
21	MAY W10196505
22	MAY W10196506
23	MAY W10196503
24	CLIP, SPRING
25	SCREW
26	MAY 8519200
27	RETAINER, PUSH-IN
28	MAY 8572717
29	Clip, Harness & Pressure Switch
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	SCREW
34	MAY W10192130
35	MAY 8578337
36	Screw, Mixing Valve Mounting
37	Wiring, Harness (For Detail See Pages 9 & 10)
