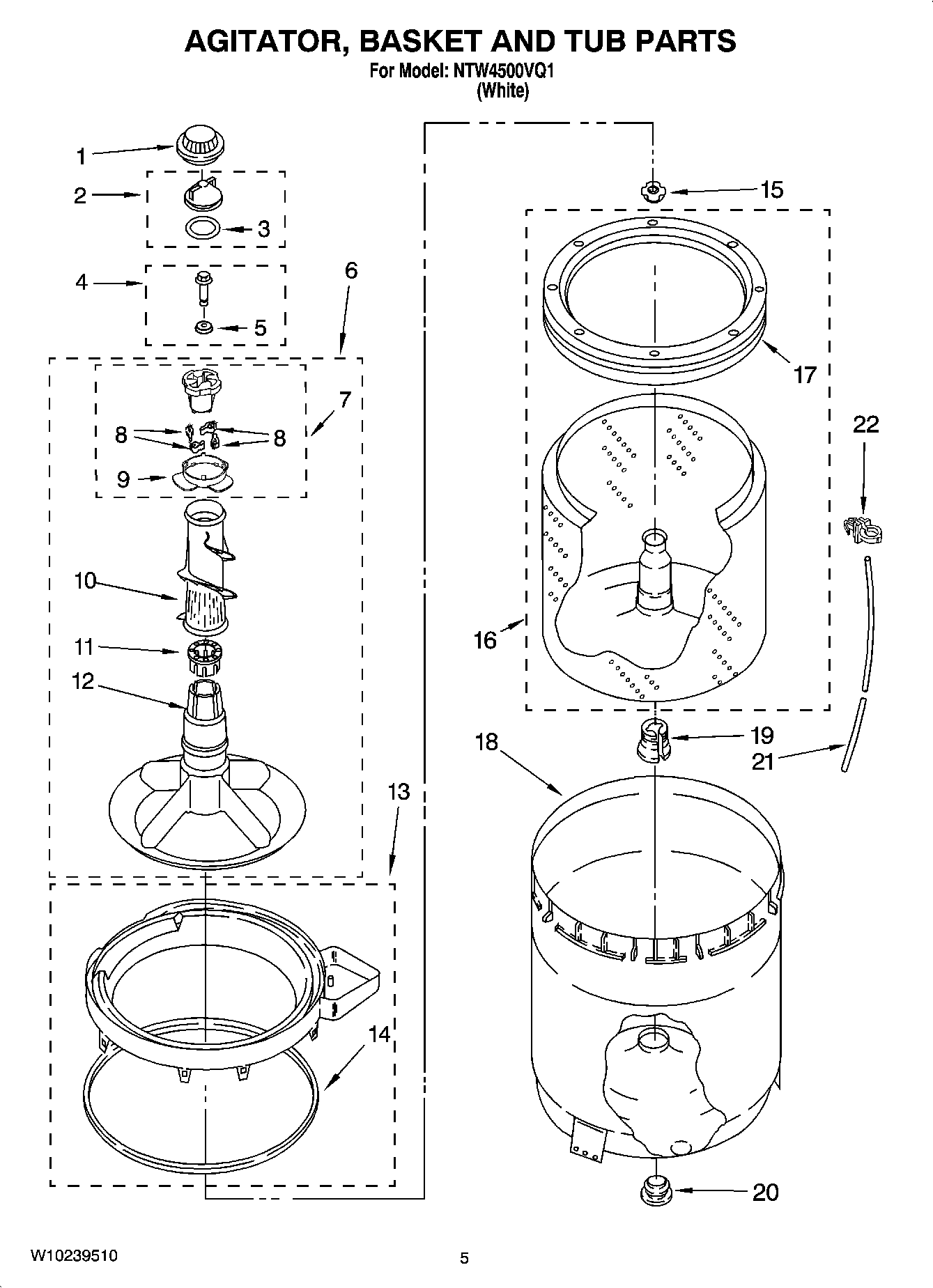

NTW4500VQ1 03 – AGITATOR, BASKET AND TUB PARTS

NTW4500VQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW4500VQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3355758
2	MAY 3354733
3	MAY W10072840
4	Screw & Washer
5	MAY 3949550
6	MAY 3348117
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	Ring, Tub
14	MAY 3976308
15	MAY 21366
16	MAY 8526016
17	Ring, Balance
18	MAY 63849
19	Block, Drive
20	MAY 383727
21	MAY 3347780
22	Clip, Harness (1)
