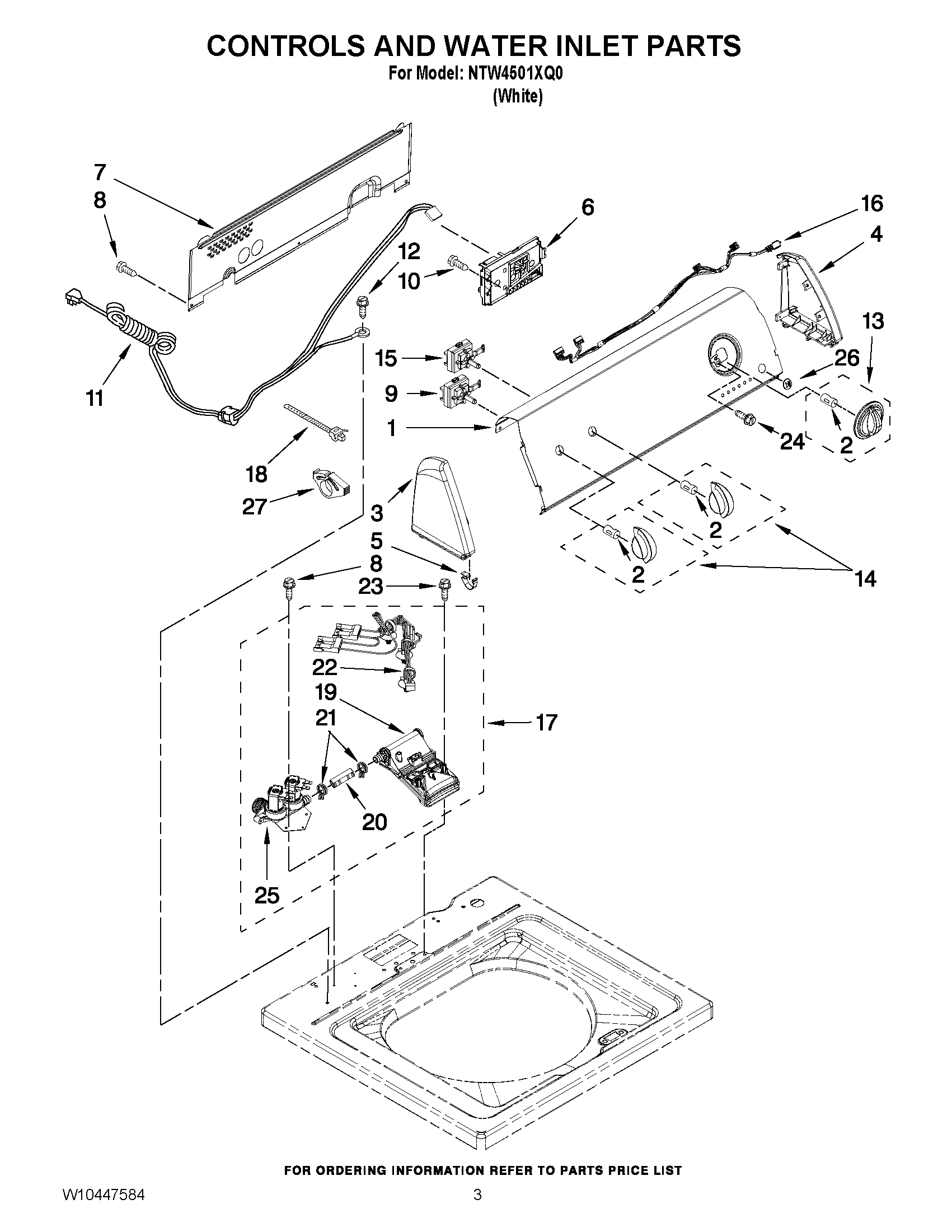

NTW4501XQ0 02 – CONTROLS AND WATER INLET PARTS

NTW4501XQ0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

NTW4501XQ0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10420385
2CLIP, SPRING
3MAY W10316303
4MAY W10316302
5MAY 8312709
6MAY W10442493
7MAY W10420985
8MAY 1157158
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13Timer Knob Assembly
14MAY W10196503
15SWITCH, ROTARY ENCODER
16MAY W10291178
17MAY W10432353
18TIE, CABLE
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24SCREW
25MAY W10356257
26MAY W10272474
27CLAMP, HOSE
