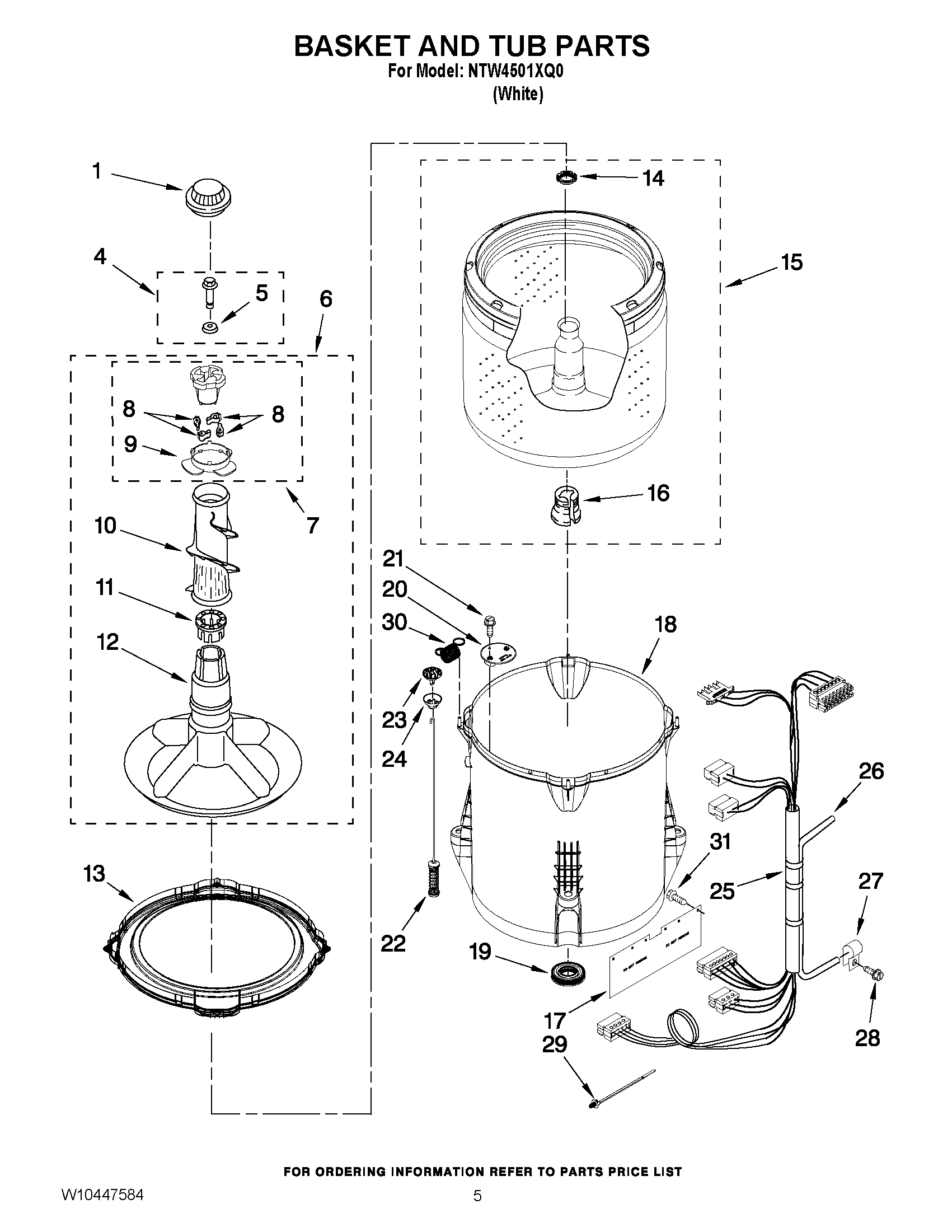

NTW4501XQ0 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3355758
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3348117
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	MAY W10215108
14	MAY 21366
15	MAY W10389330
16	Block, Drive
17	MAY W10339098
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
23	BALL, SUSPENSION (SET OF 4 – INCLUDES ITEM 24)
24	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
25	HARNESS, LOWER (INCLUDES ITEMS 26 & 29)
26	MAY W10297441
27	CLAMP, CABLE
28	SCREW
29	MAY W10298887
30	MAY W10348658
31	MAY W10273613
