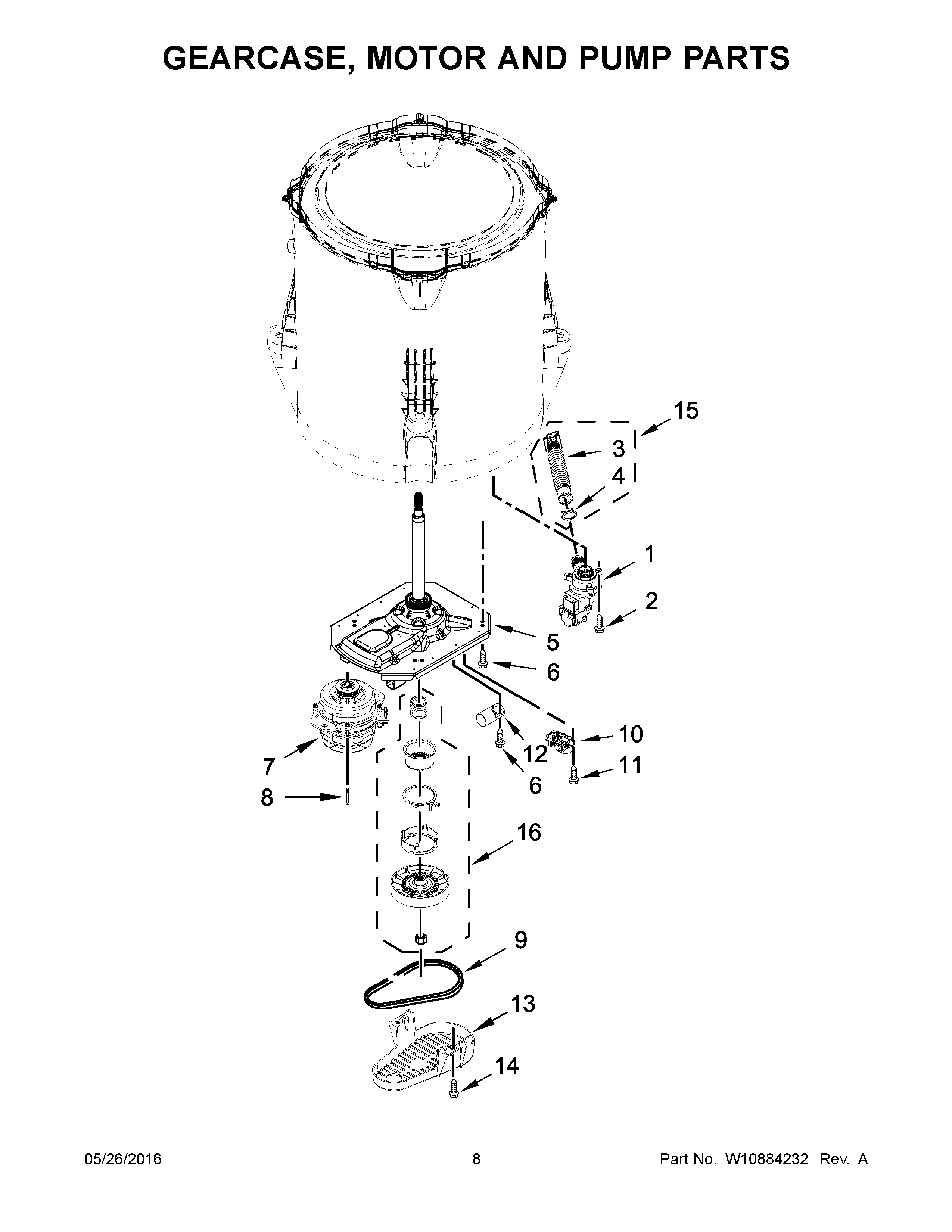

NTW4516FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

NTW4516FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

NTW4516FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY W10661045
2SCREW
3MAY W10763078
4MAY 8317496
5MAY W10473144
6SCREW
7MAY W10623547
8BOLT, COUNTERWEIGHT
9MAY W10006384
10MAY W10597177
11SCREW
12MAY W10625045
13MAY W10427633
14SCREW
15HOSE, INNER DRAIN ASSEMBLY
16MAY W10721967
