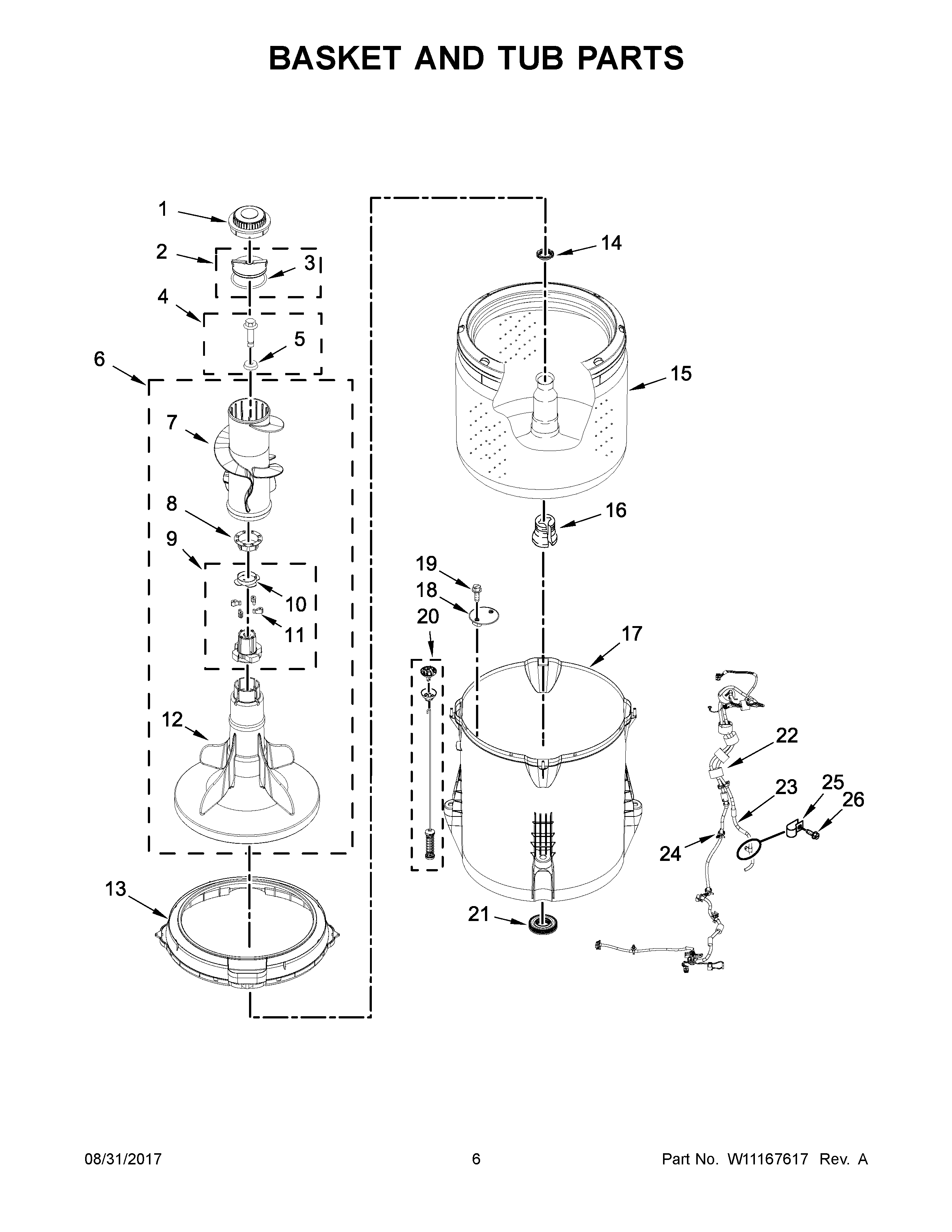

NTW4516FW2 04 – BASKET AND TUB PARTS

NTW4516FW2 04 – BASKET AND TUB PARTS

Written by

in

NTW4516FW2 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY 3355758
2MAY 3354733
3MAY W10072840
4SCREW & WASHER
5MAY 3949550
6MAY 3348117
7MOVER, CLOTHES
8SPACER, THRUST
9MAY 3948431
10BEARING, CAM
11Dog, Agitator (4)
12MAY 3347288
13MAY W10531289
14MAY 21366
15MAY W10554251
16Block, Drive
17TUB (INCLUDES TUB SEAL)
18MAY W10215093
19Screw
20MAY W10821951
21MAY W10006371
22HARNESS, LOWER
23MAY W10520039
24MAY W10267532
25CLAMP, CABLE
26SCREW
