NTW4516FW4 05 – GEARCASE, MOTOR AND PUMP PARTS
Written by
in

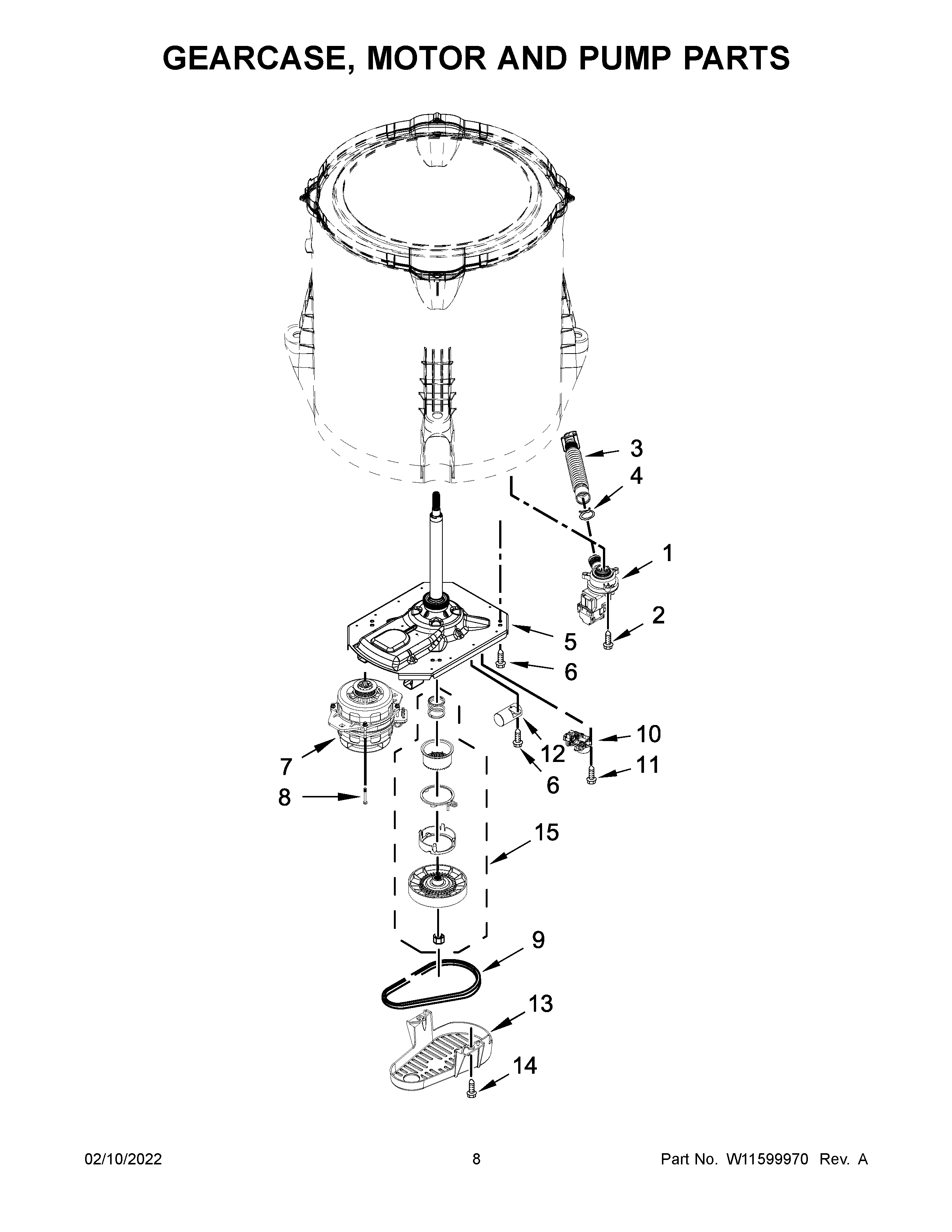

NTW4516FW4 05 – GEARCASE, MOTOR AND PUMP PARTS
Products
Position
Product
1
PUMP-WATER
2
WPW10004910 Whirlpool Screw
3
W10899966 Whirlpool Hose Assembly
4
WP285655 Whirlpool Hose Clamp
5
GEARCASE (DW1)
6
WPW10249633 Whirlpool Screw
7
W10890624 Whirlpool Drive Motor
8
W11685857 Whirlpool Screw Assembly
9
W11239857 Whirlpool Washer Belt
10
ACTUATOR
11
W11596033 Whirlpool Microwave Screw
12
CAPACITOR-SCREW
13
WPW10427633 Whirlpool Belt Shield
14
W11573574 Whirlpool Screw
15
W10721967 Whirlpool Washer Cam Kit
←
