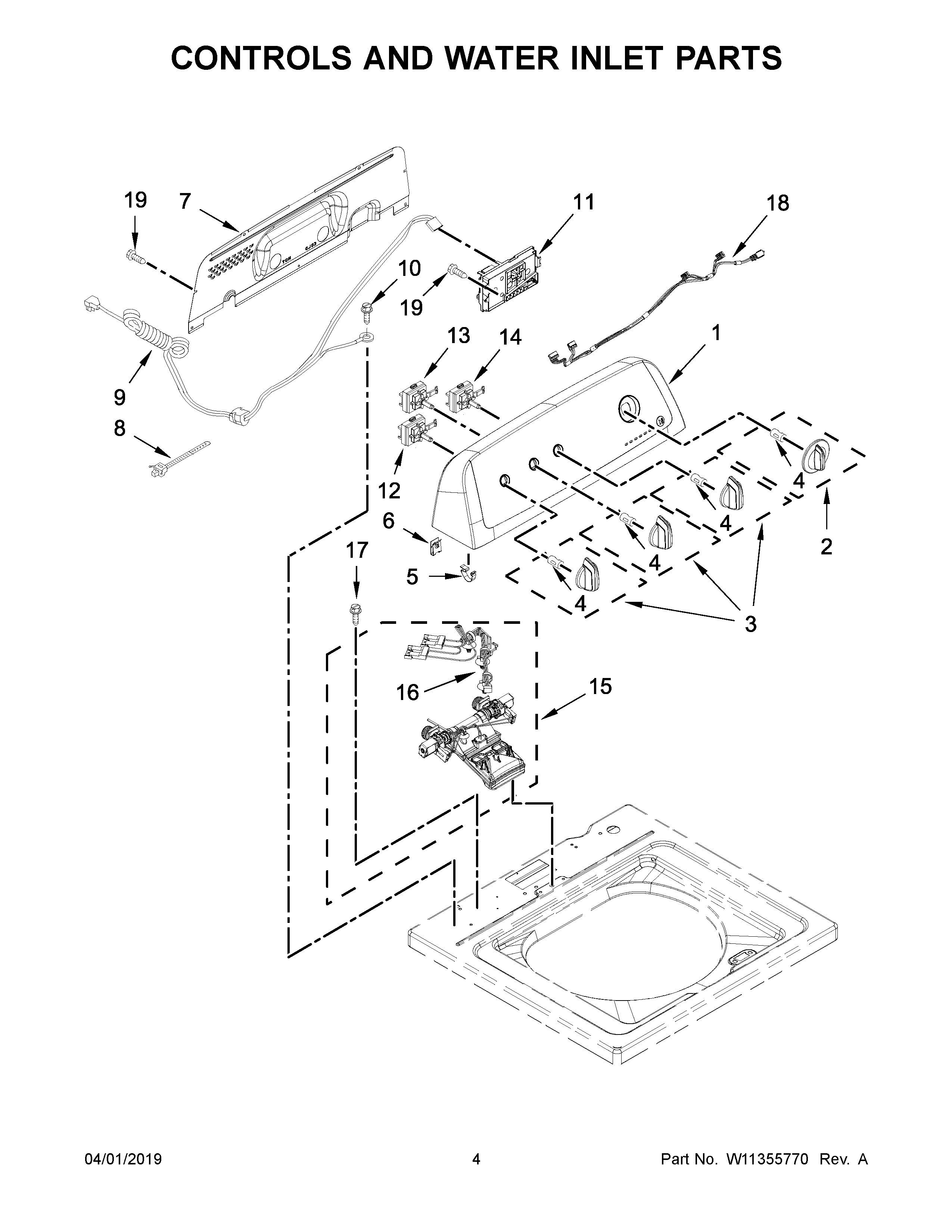

NTW4519JW0 03 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
1	MAY W11333852
2	MAY W10711289
3	MAY W10453947
4	CLIP, SPRING
5	MAY 8312709
6	NUT, "U"
7	MAY W10409320
8	MAY W10339680
9	MAY W10711784
10	Screw, 10-32 x 5/8
11	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
12	MAY W10414411
13	SWITCH, ROTARY ENCODER (2 POSITION)
14	MAY W10414398
15	INLET ASSEMBLY, WATER
16	HARNESS, VALVE
17	MAY W10213953
18	HARNESS, UPPER
19	SCREW
