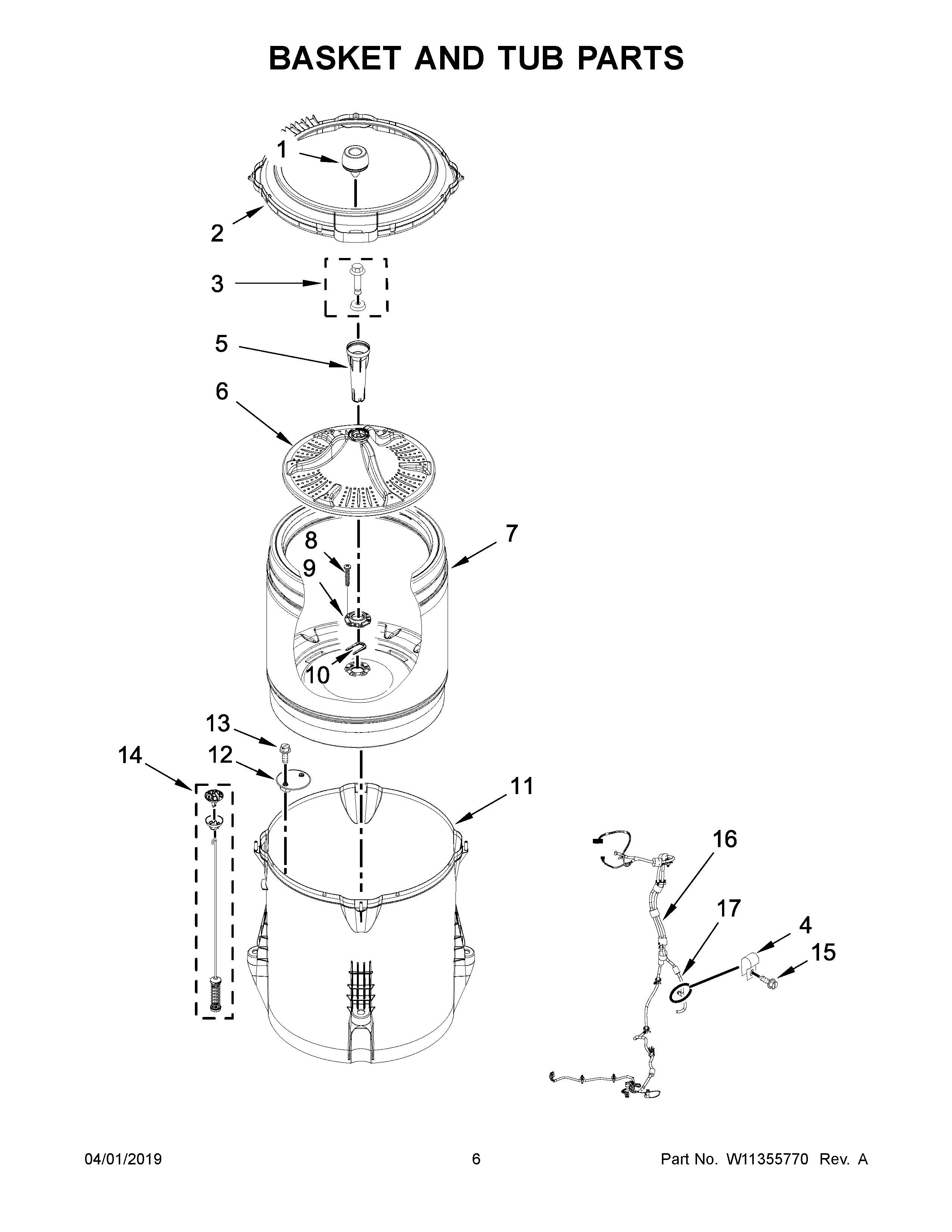

NTW4519JW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER ASSEMBLY
2TUB RING
3BOLT AND WASHER
4CLAMP, CABLE
5BARREL, AGITATOR
6IMPELLER (WASHPLATE)
7BASKET ASSEMBLY
8SCREW
9HUB – DRIVEN, BASKET
10RETAINER, DRIVE BLOCK
11TUB (INCLUDES TUB SEAL)
12MAY W10215093
13Screw
14DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND USPENSION BALLS)
15SCREW
16HARNESS, LOWER
17MAY W10520039
