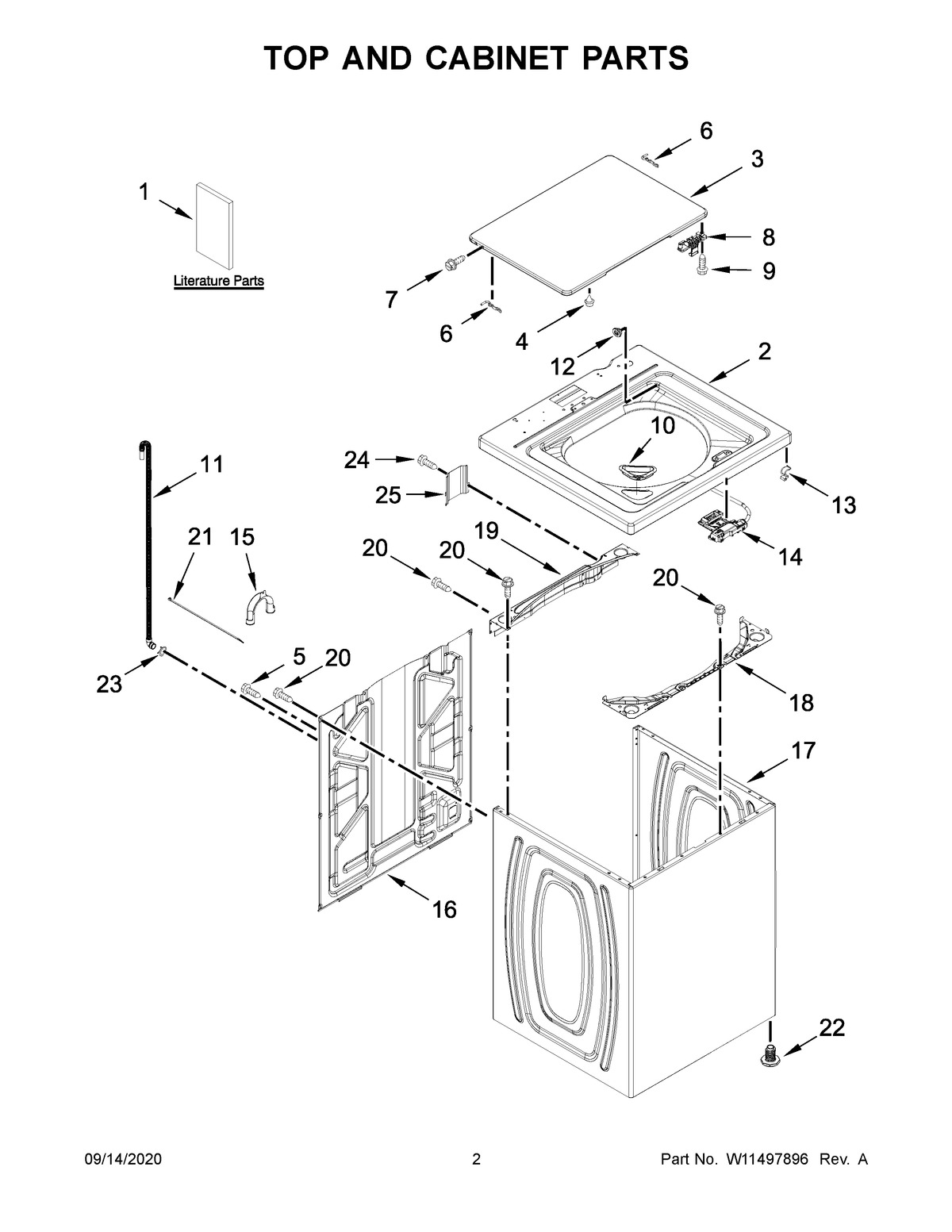

NTW4519JW1 02 – TOP AND CABINET PARTS

NTW4519JW1 02 – TOP AND CABINET PARTS

Written by

in

NTW4519JW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	MAY W11360537
1	MAY W10240509
1A	MAY W11336341
1B	MAY W11448643
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
6A	HINGE, LID (RIGHT HAND)
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	HOSE, OUTER DRAIN ASSEMBLY
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10682535
15	MAY W10280024
16	PANEL, REAR
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	SCREW
21	TIE, CABLE
22	FOOT ASSEMBLY, LEVELING
23	MAY 356138
24	Screw, 10-32 x 5/8
25	MAY W10676061
