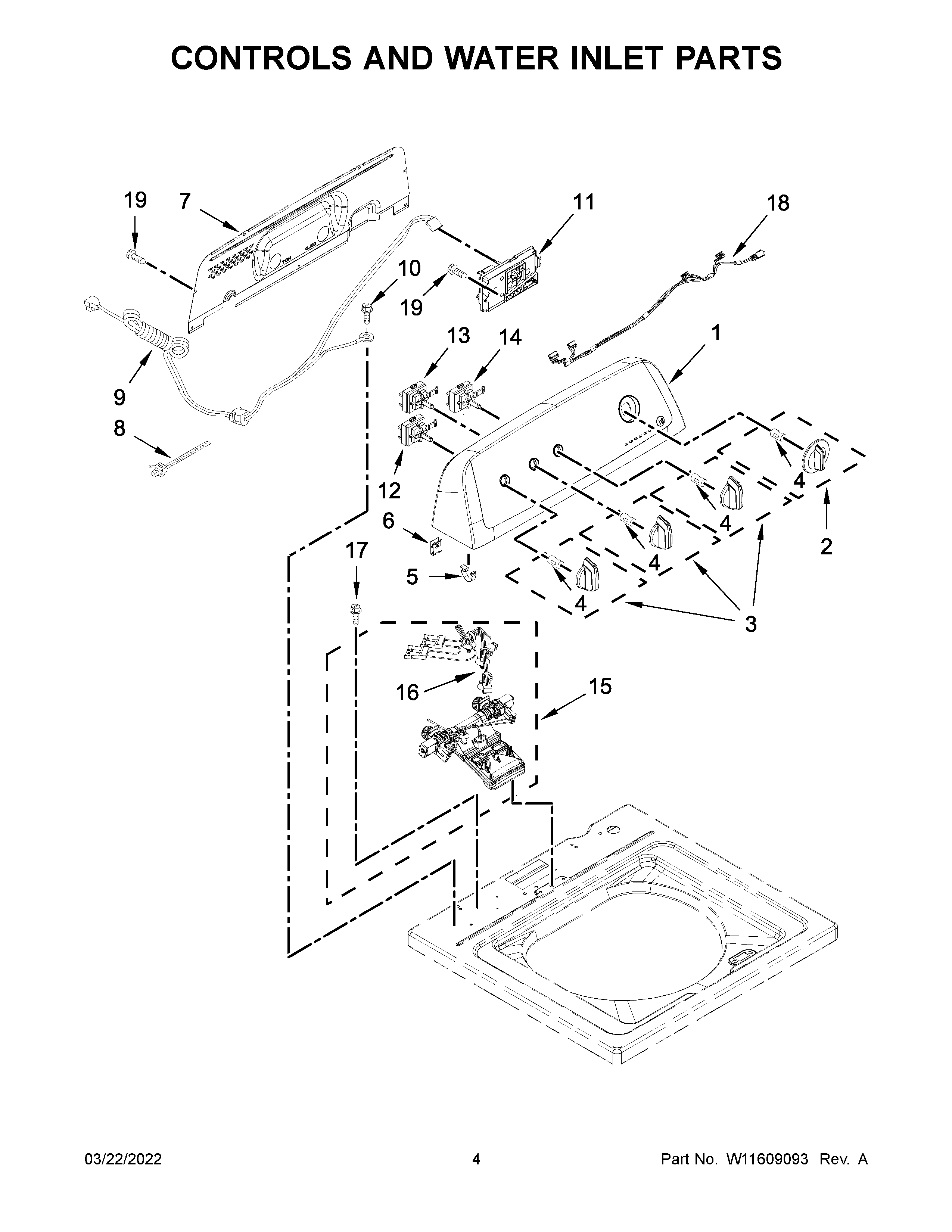

NTW4519JW2 03 – CONTROLS AND WATER INLET PARTS

NTW4519JW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

NTW4519JW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W11363976 Whirlpool Console
2WPW10711289 Whirlpool Washer Control Knob Dryer
3WPW10453947 Whirlpool Knob
4WP8536939 Whirlpool Spring Clip
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W10409320 Whirlpool Rear Panel
8W10339680 Whirlpool Wire Tie
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11W11607637-includeCORE Whirlpool W11607637 Refrigerator Electronic Control Board + Core
12W10859568 Whirlpool Cycle Switch
13W11168256 Whirlpool Cycle Switch
14WPW10414398 Whirlpool Cycle Switch
15VALVE-WATER INLET WASHER
16W10868094 Whirlpool Wire Harness
17WPW10213953 Whirlpool Screw
18W10694671 Whirlpool Wire Harness
19W11685943 Whirlpool Screw
