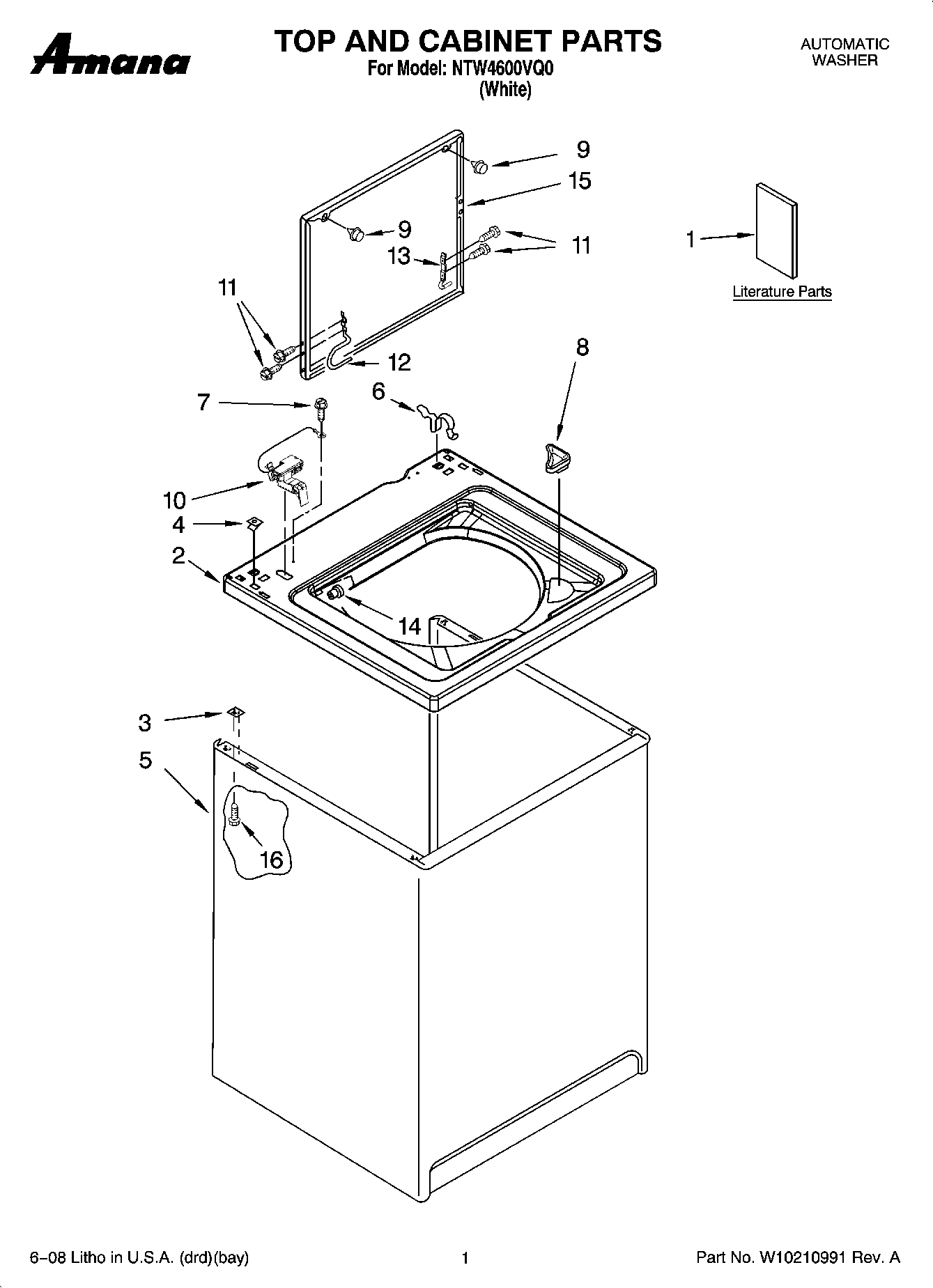

NTW4600VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10192177
1	MAY W10183468
1	MAY W10200662
1	Installation Instructions (English)
1	MAY W10192182
1	MAY W10192181
1	MAY W10192180
1	MAY W10192179
2	MAY 8318064
3	MAY 62750
4	Nut, Push-In
5	Cabinet
6	MAY 62780
7	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8	MAY 3362952
9	MAY 9724509
10	MAY 8318084
11	Screw And Washer
12	MAY 8318088
13	HINGE, LID
14	Hinge, Bearing (2)
15	MAY 8541774
16	SCREW
