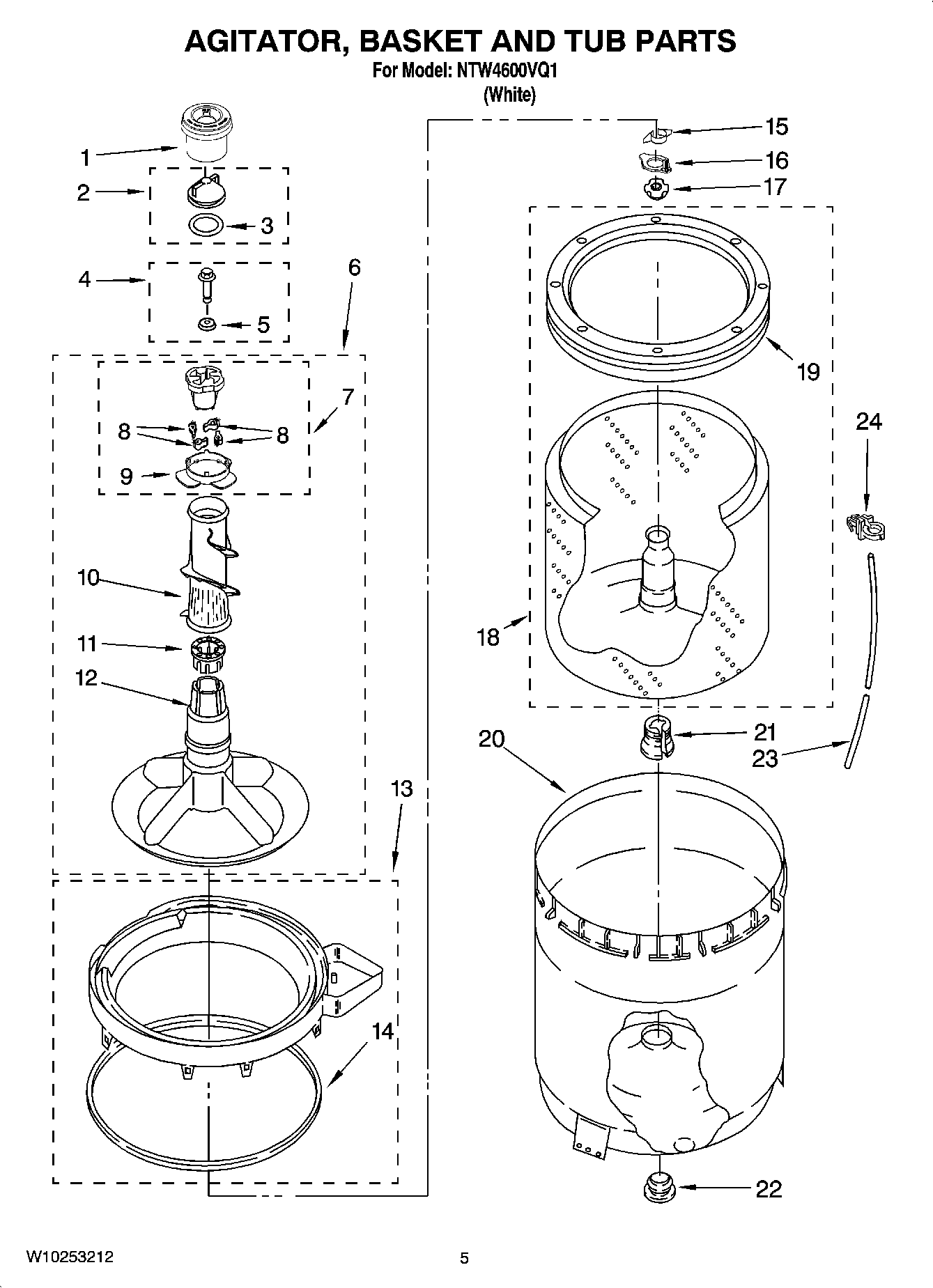

NTW4600VQ1 03 – AGITATOR, BASKET AND TUB PARTS

NTW4600VQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW4600VQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	Screw & Washer
5	MAY 3949550
6	MAY 3348117
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	Ring, Tub
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	MAY 21366
18	MAY 8526016
19	Ring, Balance
20	MAY 63849
21	Block, Drive
22	MAY 383727
23	MAY 3347780
24	Clip, Harness (1)
