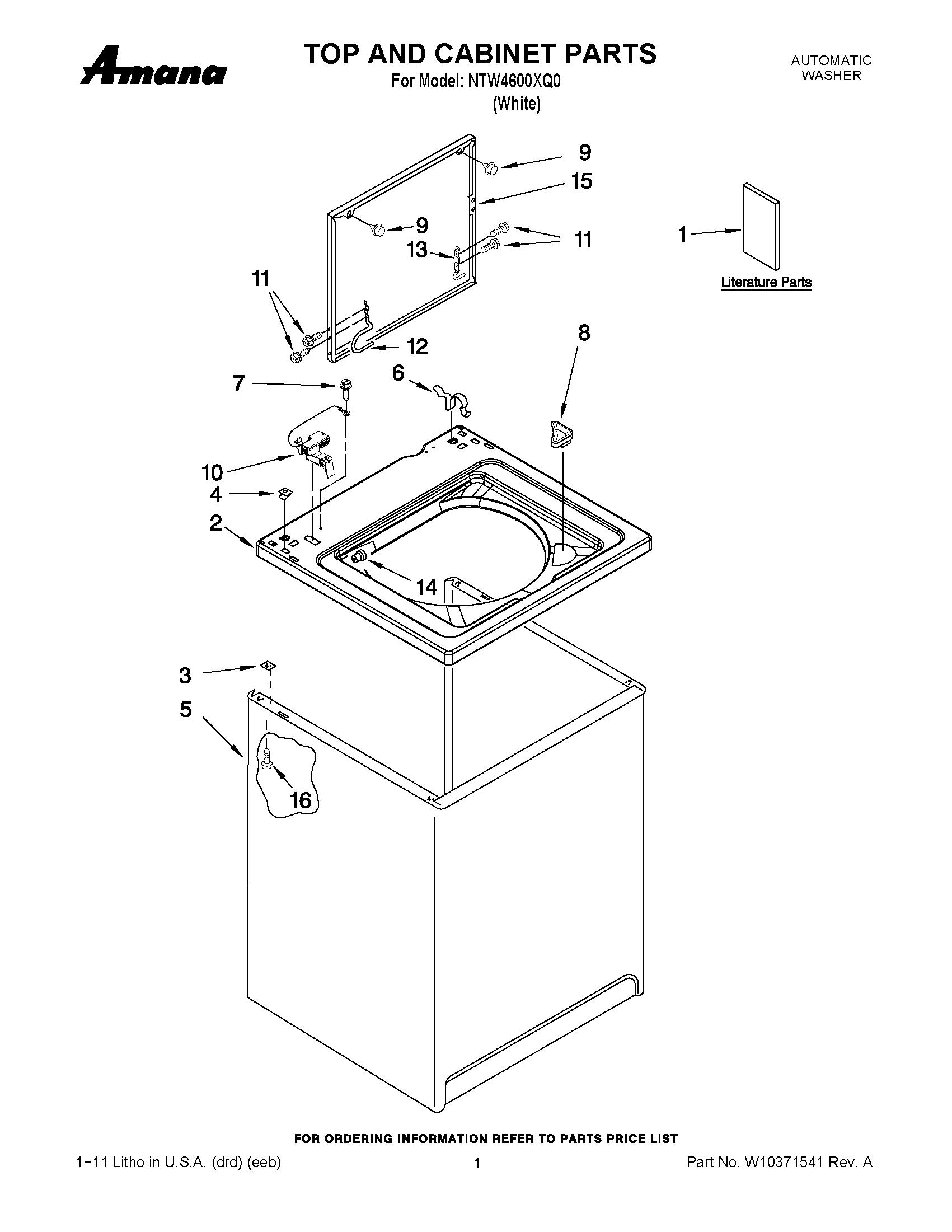

NTW4600XQ0 01 – TOP AND CABINET PARTS

NTW4600XQ0 01 – TOP AND CABINET PARTS

Written by

in

NTW4600XQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10352742
1MAY W10362941
1MAY W10368957
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1INSTALLATION INSTRUCTIONS (SPANISH)
1MAY W10347262
2MAY 8318064
3MAY 62750
4Nut, Push-In
5Cabinet
6MAY 62780
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8MAY 3362952
9MAY 9724509
10MAY 8318084
11SCREW, LID HINGE
12MAY W10225135
13HINGE, LID
14Hinge, Bearing (2)
15MAY 8541774
16SCREW
