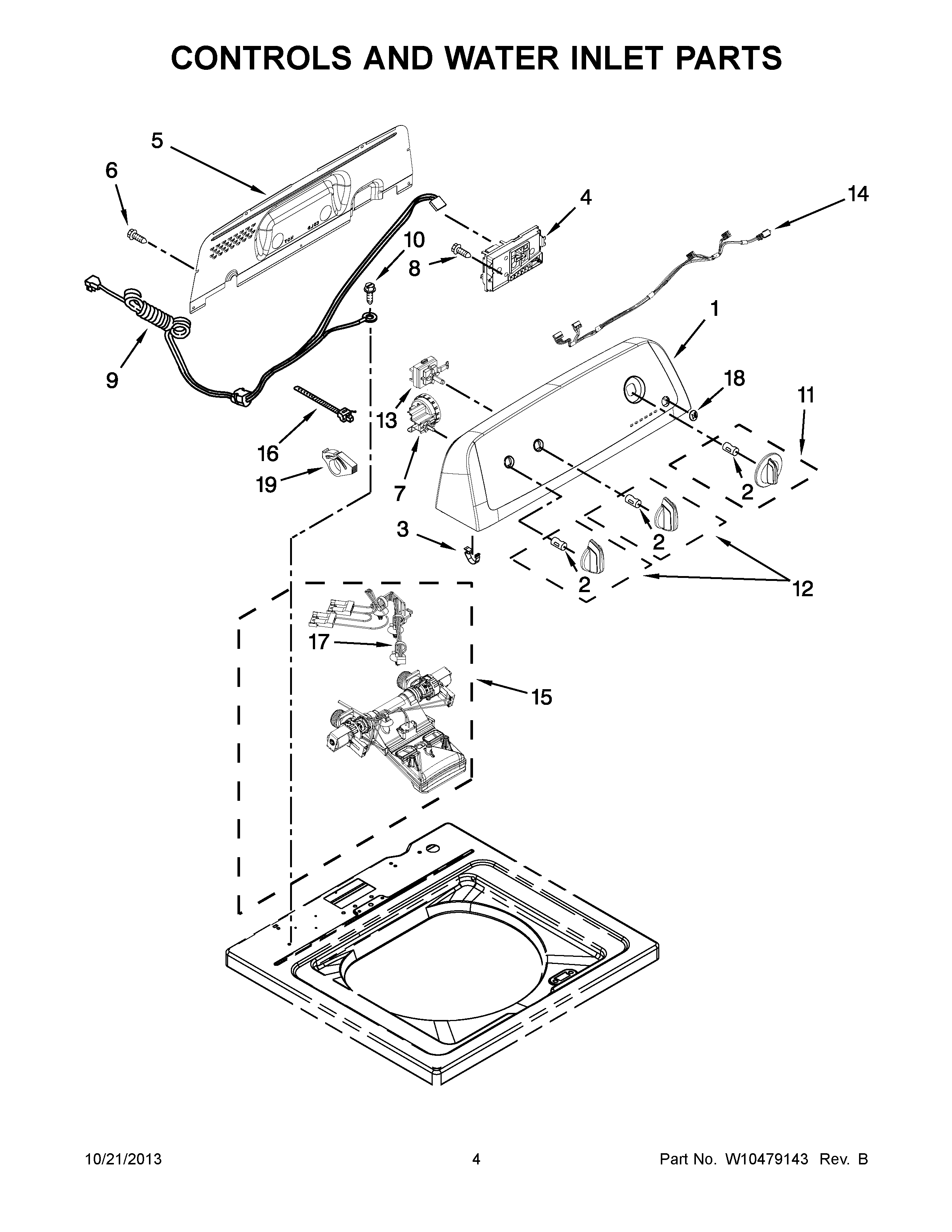

NTW4600YQ0 03 – CONTROLS AND WATER INLET PARTS

NTW4600YQ0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

NTW4600YQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	MAY W10429632
2	CLIP, SPRING
3	MAY 8312709
4	MAY W10484681
5	MAY W10409320
6	MAY 1157158
7	MAY W10450959
8	SCREW,8-18 X 3/8
9	MAY W10525192
10	Screw, 10-32 x 5/8
11	ASSEMBLY, TIMER KNOB (WHITE)
12	MAY W10453947
13	MAY W10414397
14	MAY W10475254
15	MAY W10501149
16	TIE, CABLE
17	MAY W10423127
18	MAY W10251309
19	CLAMP, HOSE
