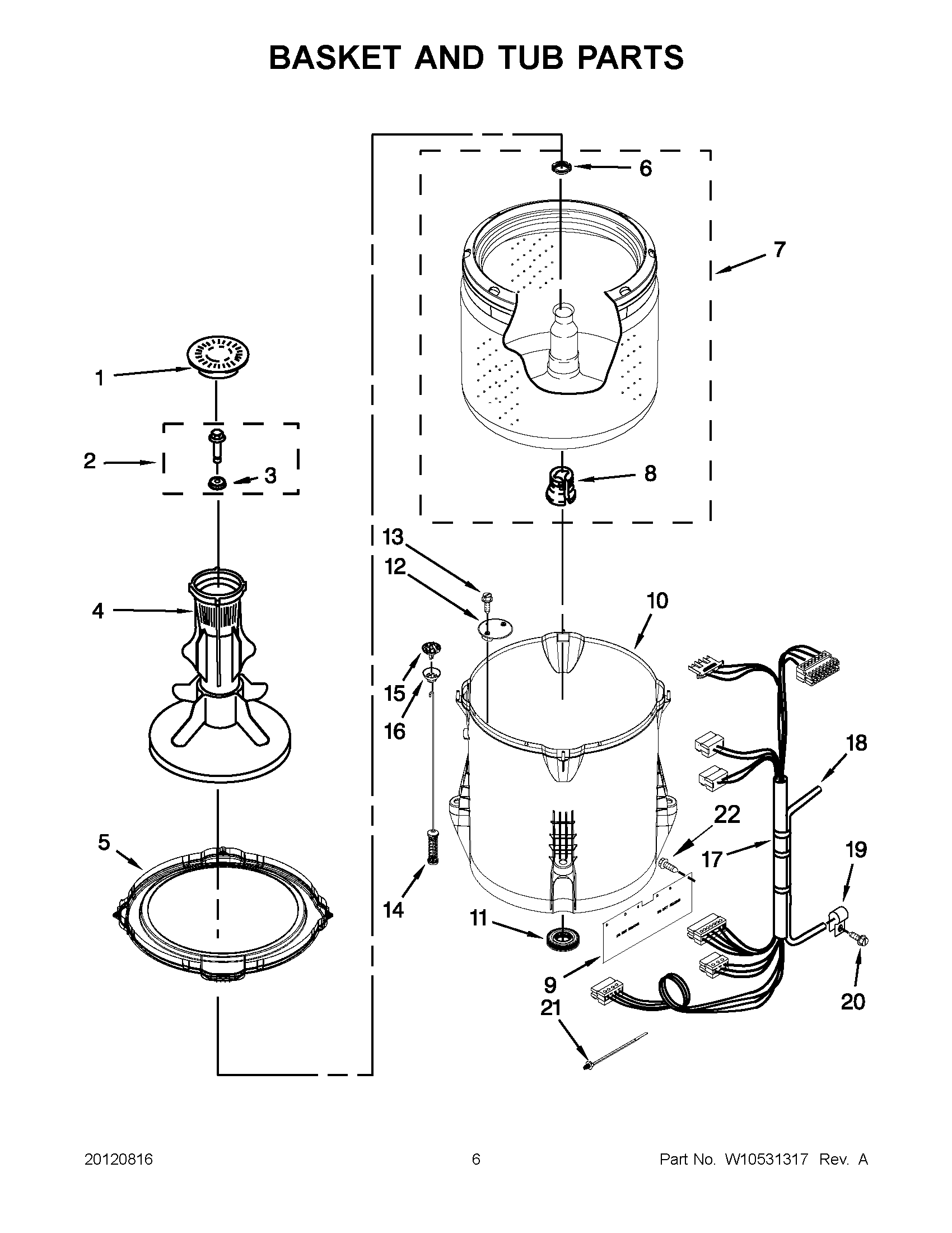

NTW4600YQ1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3352483
2	SCREW & WASHER
3	MAY 3949550
4	AGITATOR ASSEMBLY (COMPLETE)
5	MAY W10215107
6	MAY 21366
7	MAY W10389330
8	Block, Drive
9	MAY W10339098
10	TUB (INCLUDES TUB SEAL)
11	MAY W10006371
12	MAY W10215093
13	Screw
14	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
15	BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
16	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17	MAY W10376574
18	MAY W10297436
19	CLAMP, CABLE
20	SCREW
21	MAY W10298887
22	MAY W10429200
