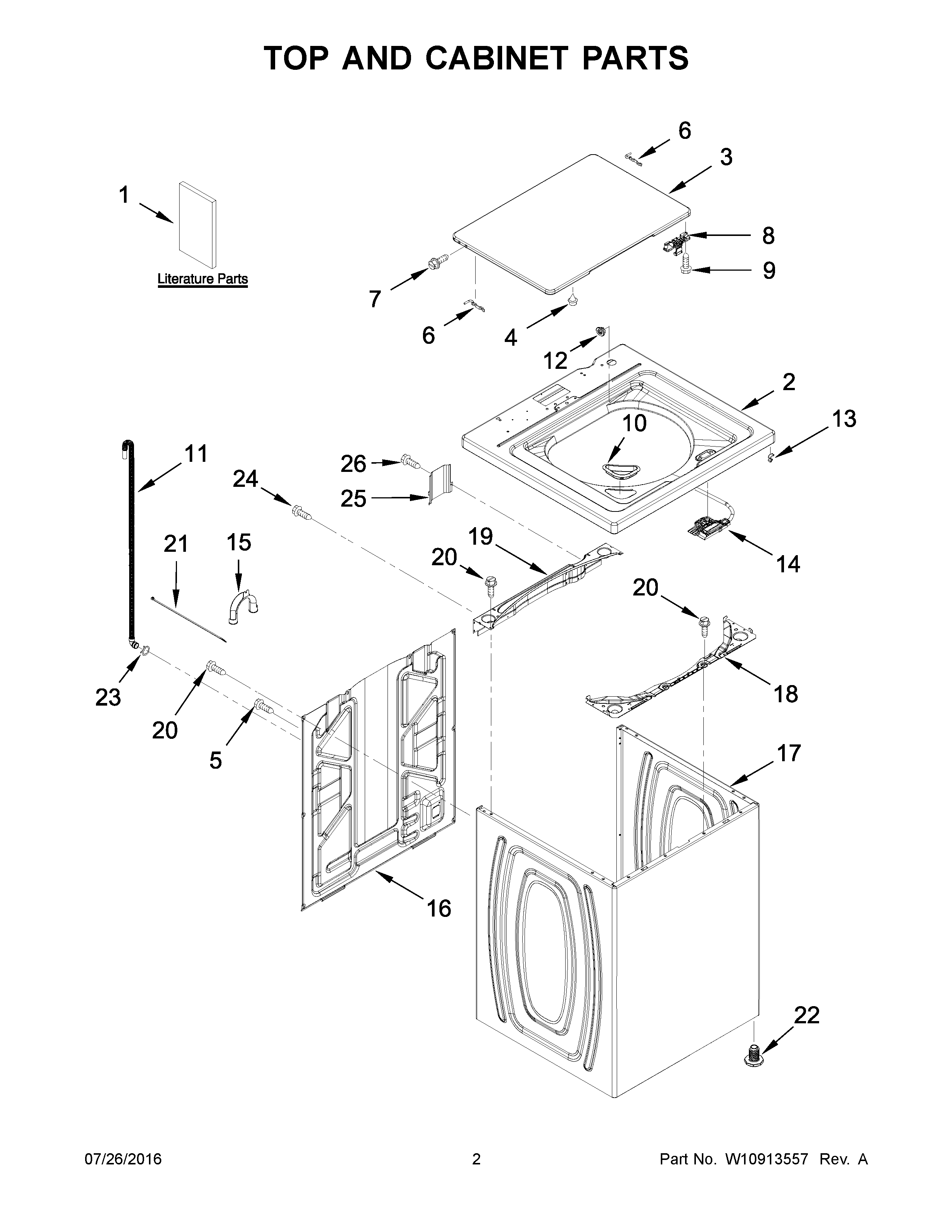

NTW4605EW1 02 – TOP AND CABINET PARTS

NTW4605EW1 02 – TOP AND CABINET PARTS

Written by

in

NTW4605EW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AMAY W10740545
1BMAY W10063051
1CMAY W10740573
1MAY W10240509
2MAY W10686433
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11HOSE, OUTER DRAIN ASSEMBLY
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W10682535
15MAY W10280024
16PANEL, REAR
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21TIE, CABLE
22MAY W10397994
23MAY 356138
24SCREW
25MAY W10676061
26Screw, 10-32 x 5/8
