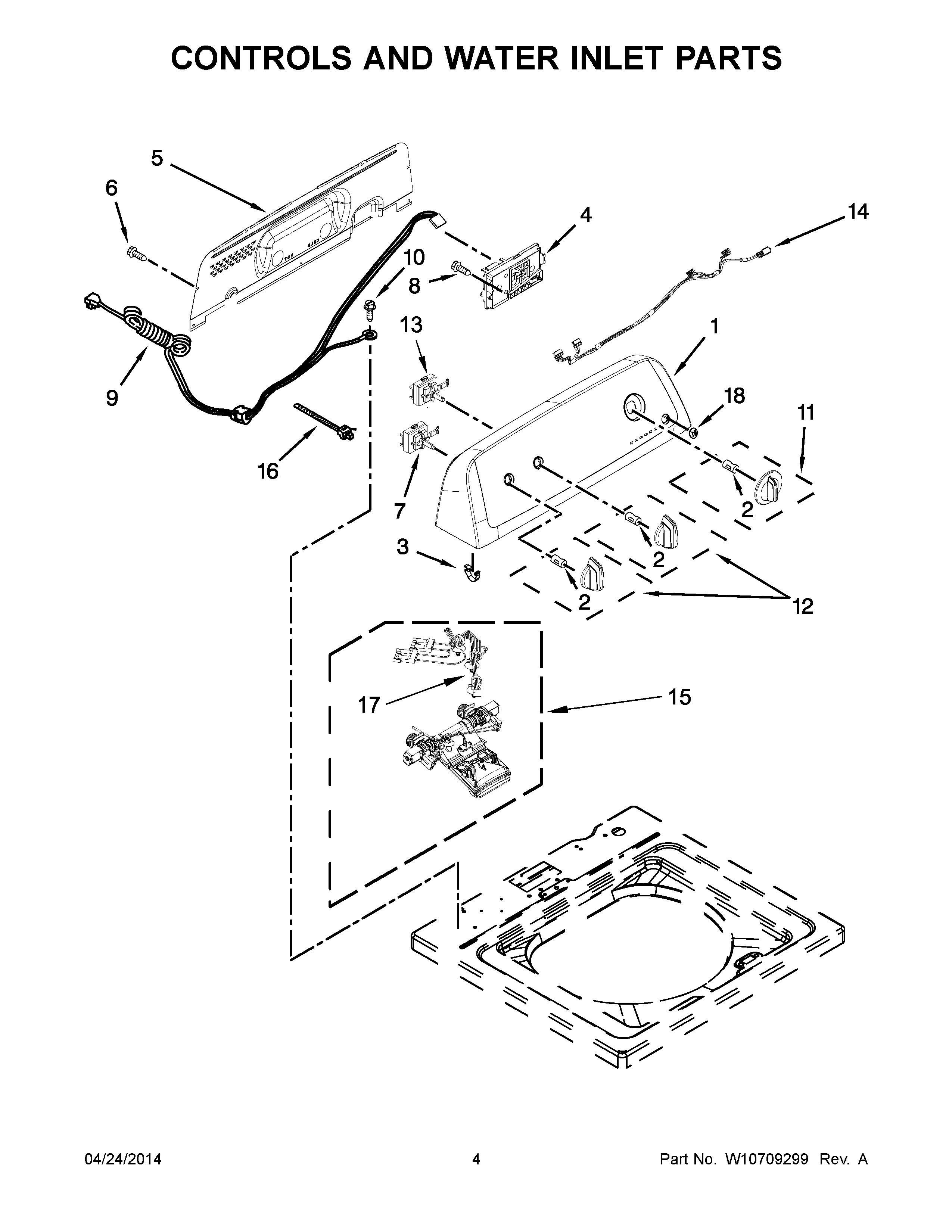

NTW4611BQ1 03 – CONTROLS AND WATER INLET PARTS

NTW4611BQ1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

NTW4611BQ1 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	MAY W10468345
2	CLIP, SPRING
3	MAY 8312709
4	MAY W10671335
5	MAY W10409320
6	MAY 1157158
7	MAY W10414397
8	Screw
9	MAY W10525192
10	Screw, 10-32 x 5/8
11	ASSEMBLY, TIMER KNOB (WHITE)
12	MAY W10453947
13	MAY W10414398
14	MAY W10539078
15	MAY W10683680
16	TIE, CABLE
17	MAY W10684972
18	MAY W10251309
