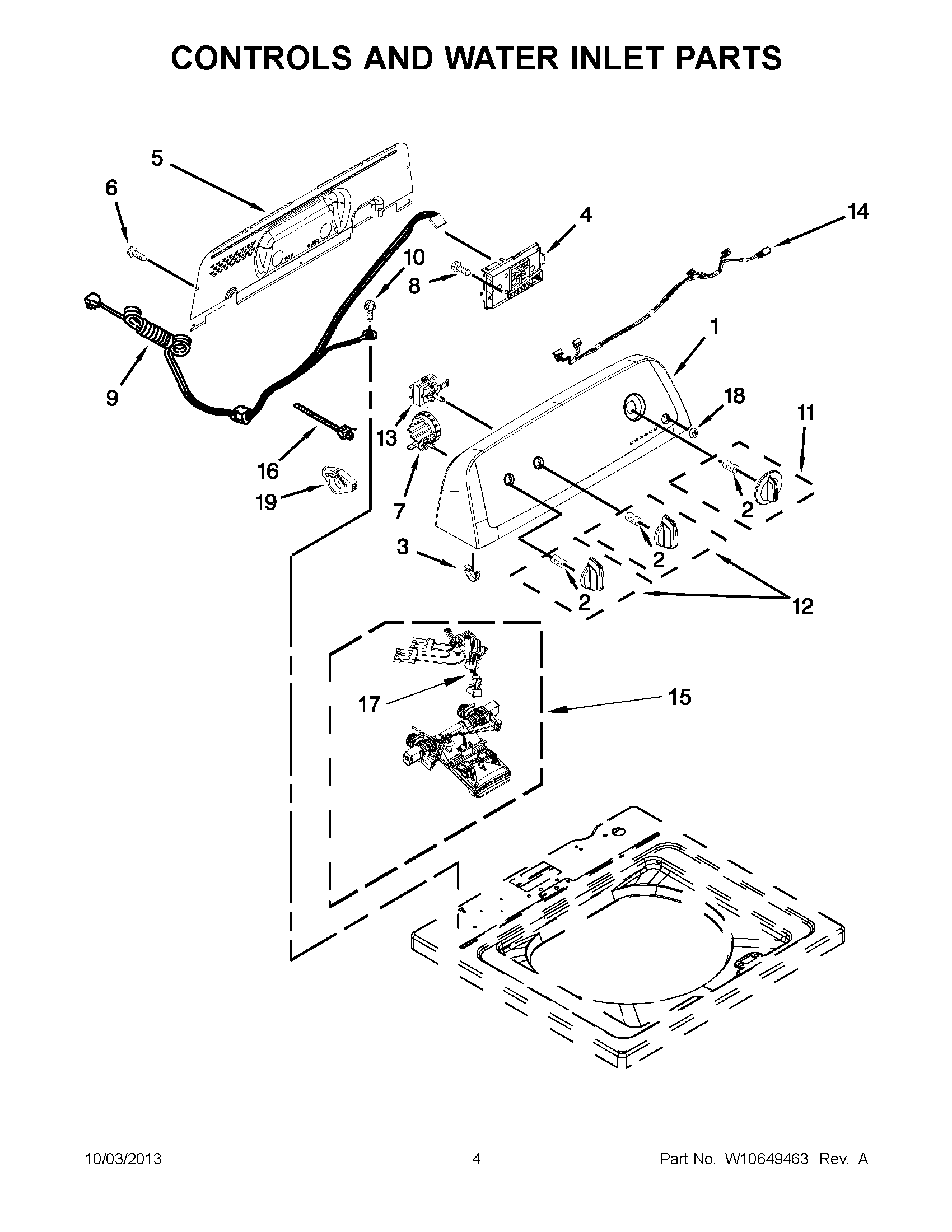

NTW4631BQ0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10468327
2CLIP, SPRING
3MAY 8312709
4MAY W10636057
5MAY W10409320
6MAY 1157158
7MAY W10450959
8Screw
9MAY W10525192
10Screw, 10-32 x 5/8
11ASSEMBLY, TIMER KNOB (WHITE)
12MAY W10453947
13MAY W10414398
14MAY W10475254
15MAY W10501149
16TIE, CABLE
17MAY W10423127
18MAY W10251309
19CLAMP, HOSE
