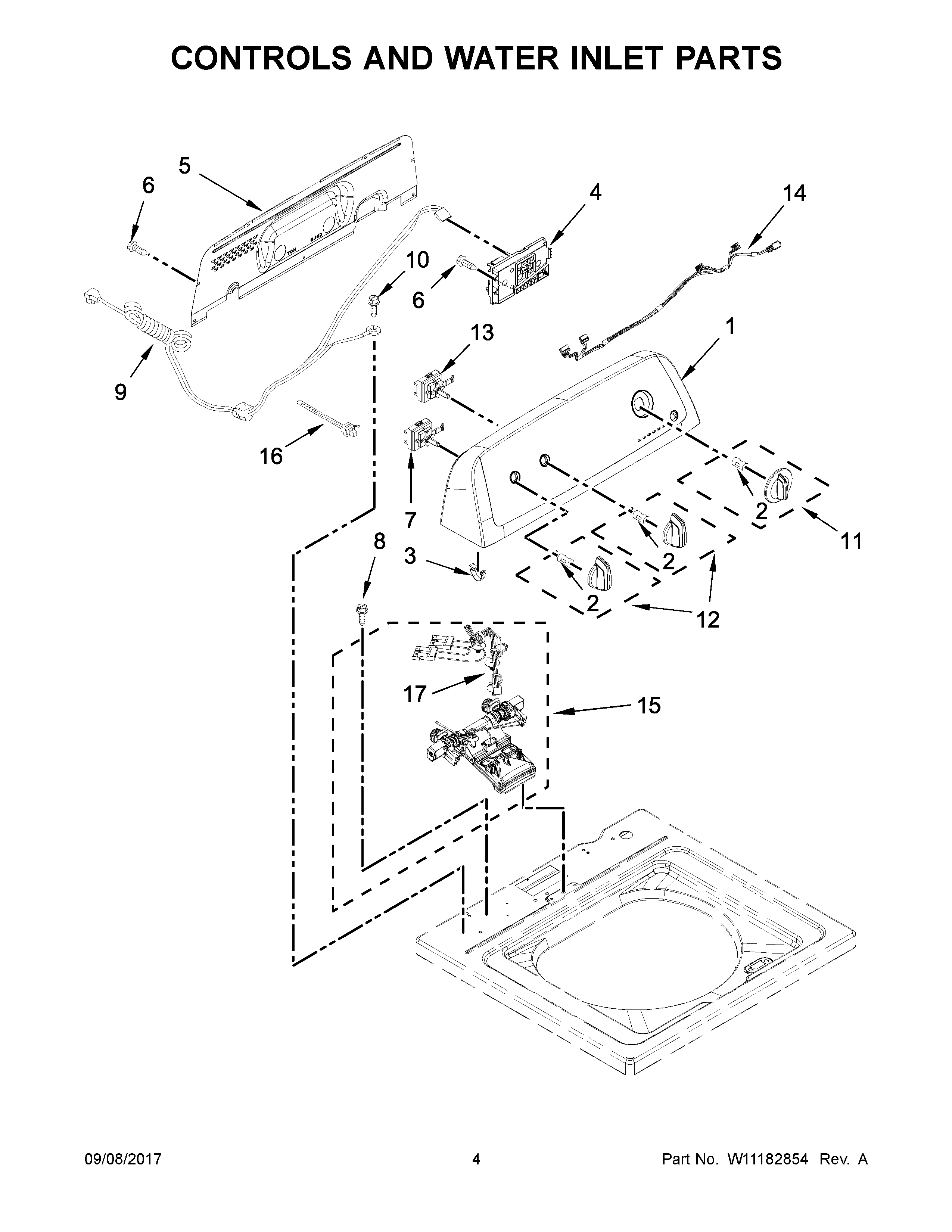

NTW4665GW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W11132723
2CLIP, SPRING
3MAY 8312709
4MAY W11101098
5MAY W10409320
6SCREW
7MAY W10414398
8MAY W10213953
9MAY W10711784
10Screw, 10-32 x 5/8
11MAY W10711289
12MAY W10453947
13MAY W10414411
14MAY W10694679
15INLET ASSEMBLY, WATER
16TIE, CABLE
17HARNESS, VALVE
