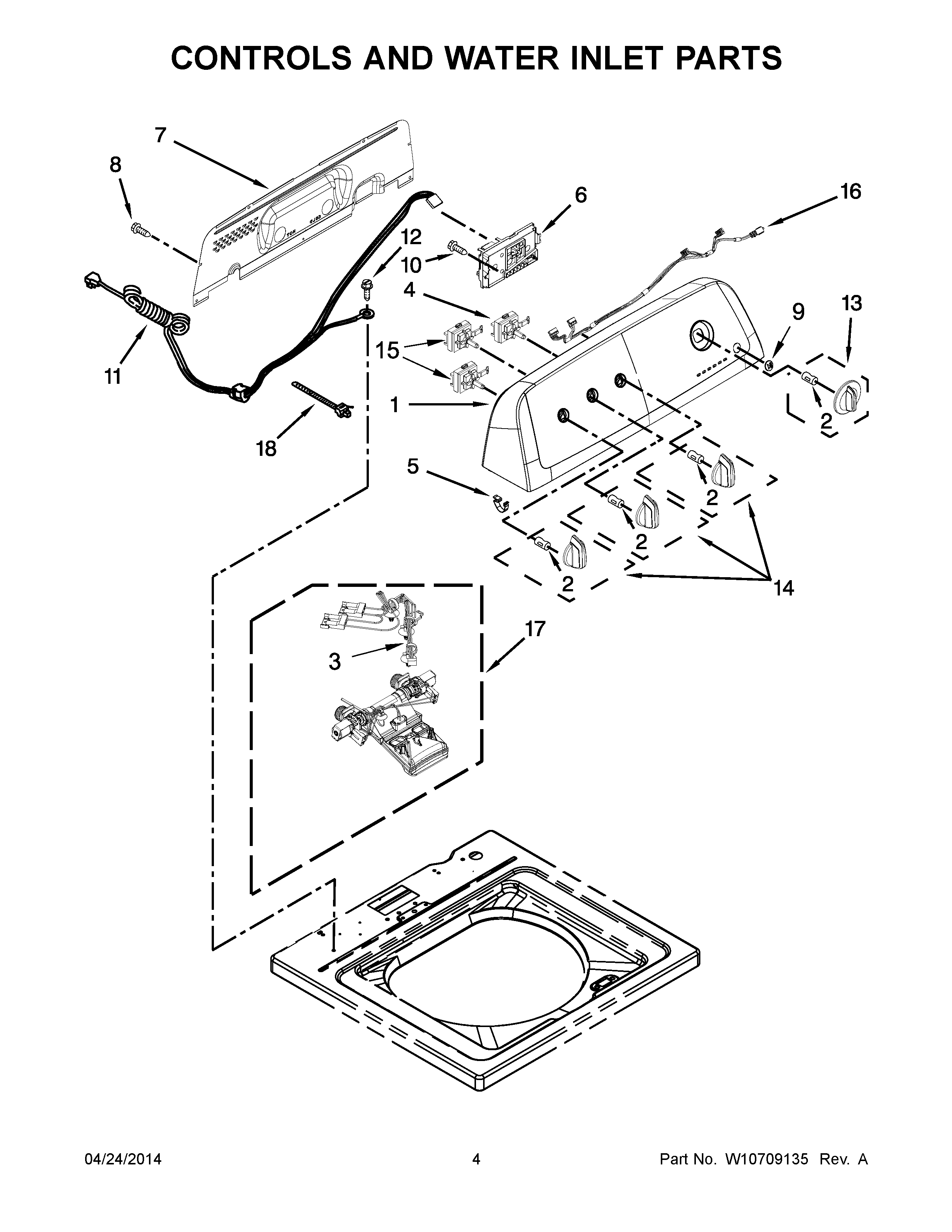

NTW4701BQ1 03 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
1	MAY W10429631
2	CLIP, SPRING
3	MAY W10423127
4	SWITCH, ROTARY ENCODER (2 POSITION)
5	MAY 8312709
6	MAY W10671338
7	MAY W10409320
8	MAY 1157158
9	MAY W10251309
10	Screw
11	MAY W10525192
12	Screw, 10-32 x 5/8
13	ASSEMBLY, TIMER KNOB (WHITE)
14	MAY W10453947
15	MAY W10414398
16	MAY W10491753
17	MAY W10501149
18	TIE, CABLE
