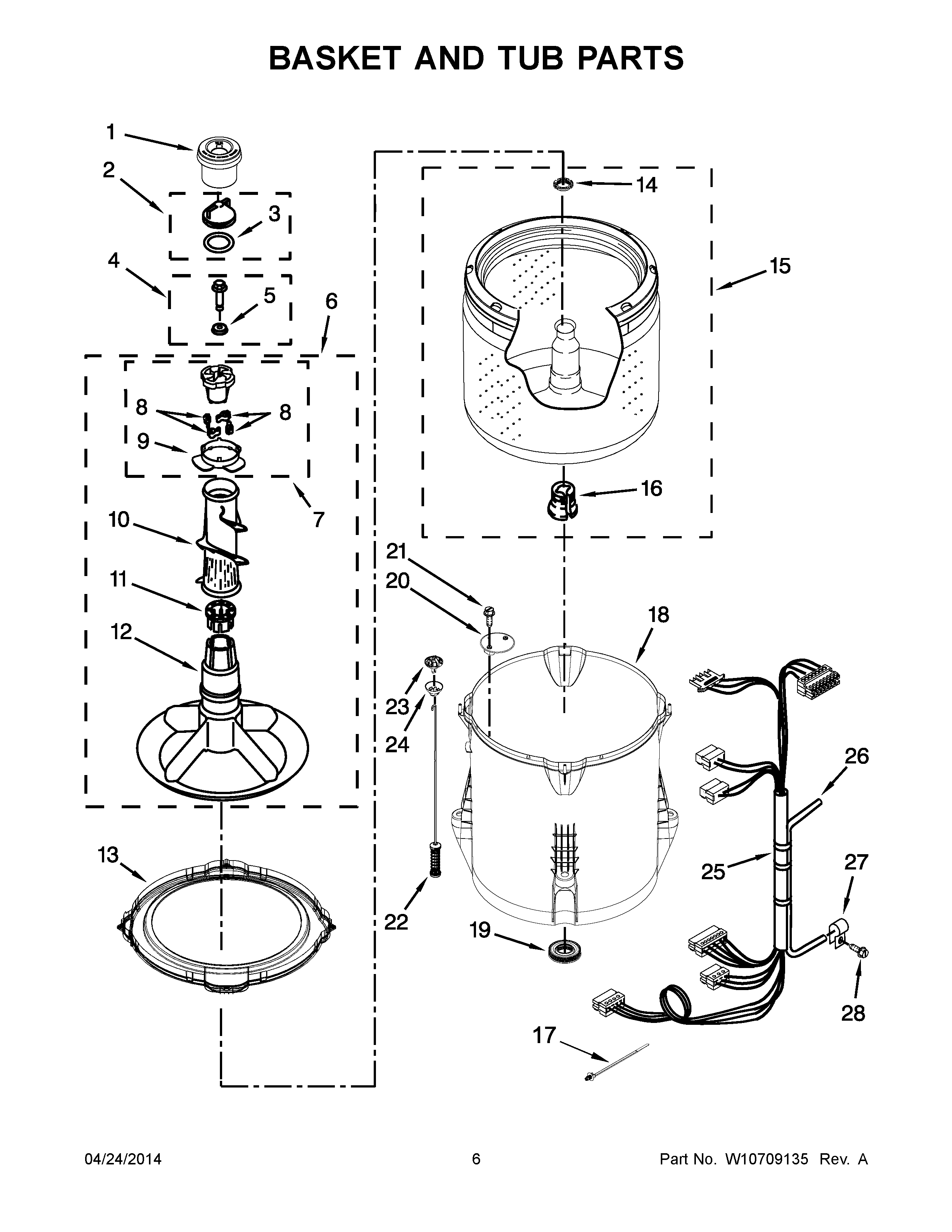

NTW4701BQ1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3348117
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	MAY W10531289
14	MAY 21366
15	MAY W10554251
16	Block, Drive
17	MAY W10298887
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	MAY W10537442
23	BALL, SUSPENSION (SET OF4 - INCLUDES SUSPENSION BUSHINGS)
24	BUSHING - UPPER (SET OF 4 - INCLUDES SUSPENSION BALLS)
25	MAY W10610072
26	MAY W10520039
27	CLAMP, CABLE
28	SCREW
