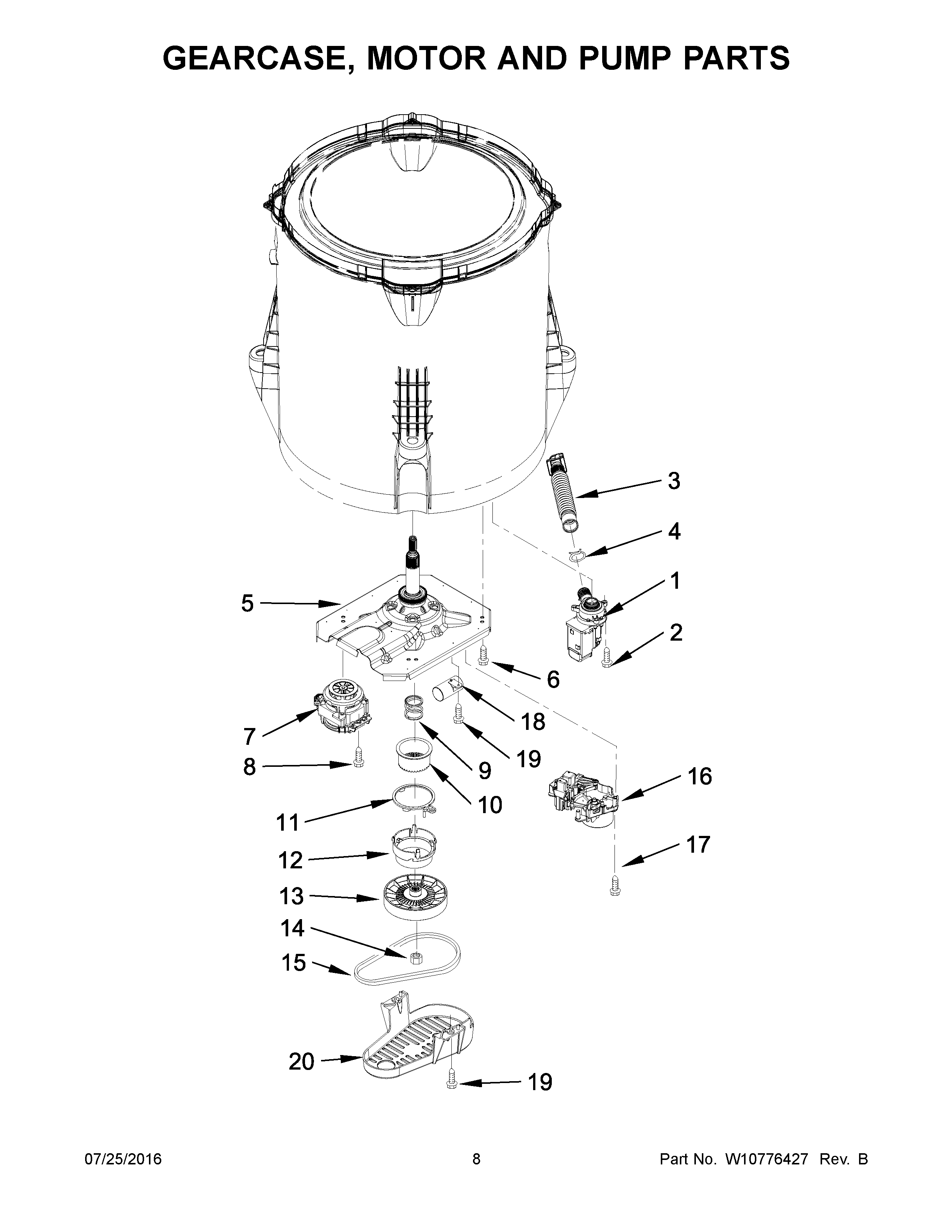

NTW4705EW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

Products

Position	Product
1	MAY W10661045
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	MAY W10473144
6	SCREW
7	MAY W10623546
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10239973
14	NUT
15	MAY W10006384
16	ACTUATOR-SHIFT
17	SCREW
18	MAY W10625045
19	SCREW
20	MAY W10427633
