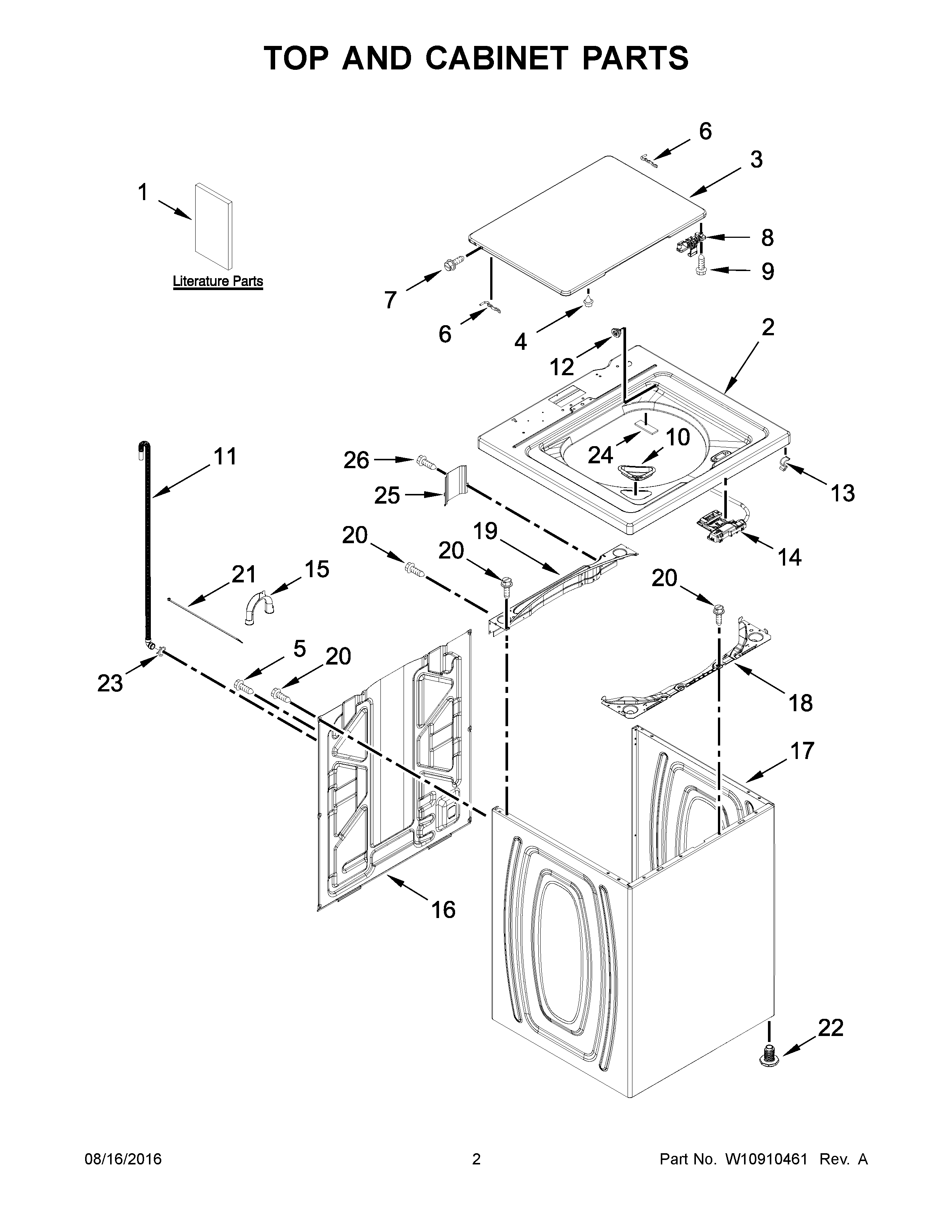

NTW4705EW1 02 – TOP AND CABINET PARTS

NTW4705EW1 02 – TOP AND CABINET PARTS

Written by

in

NTW4705EW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10240509
1A	MAY W10740547
1B	MAY W10740573
1C	MAY W10063051
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6A	HINGE, LID (RIGHT HAND)
6	HINGE, LID
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	HOSE, OUTER DRAIN ASSEMBLY
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10682535
15	MAY W10280024
16	PANEL, REAR
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	TIE, CABLE
22	MAY W10397994
23	MAY 356138
24	MAY W10684258
25	MAY W10676061
26	Screw, 10-32 x 5/8
