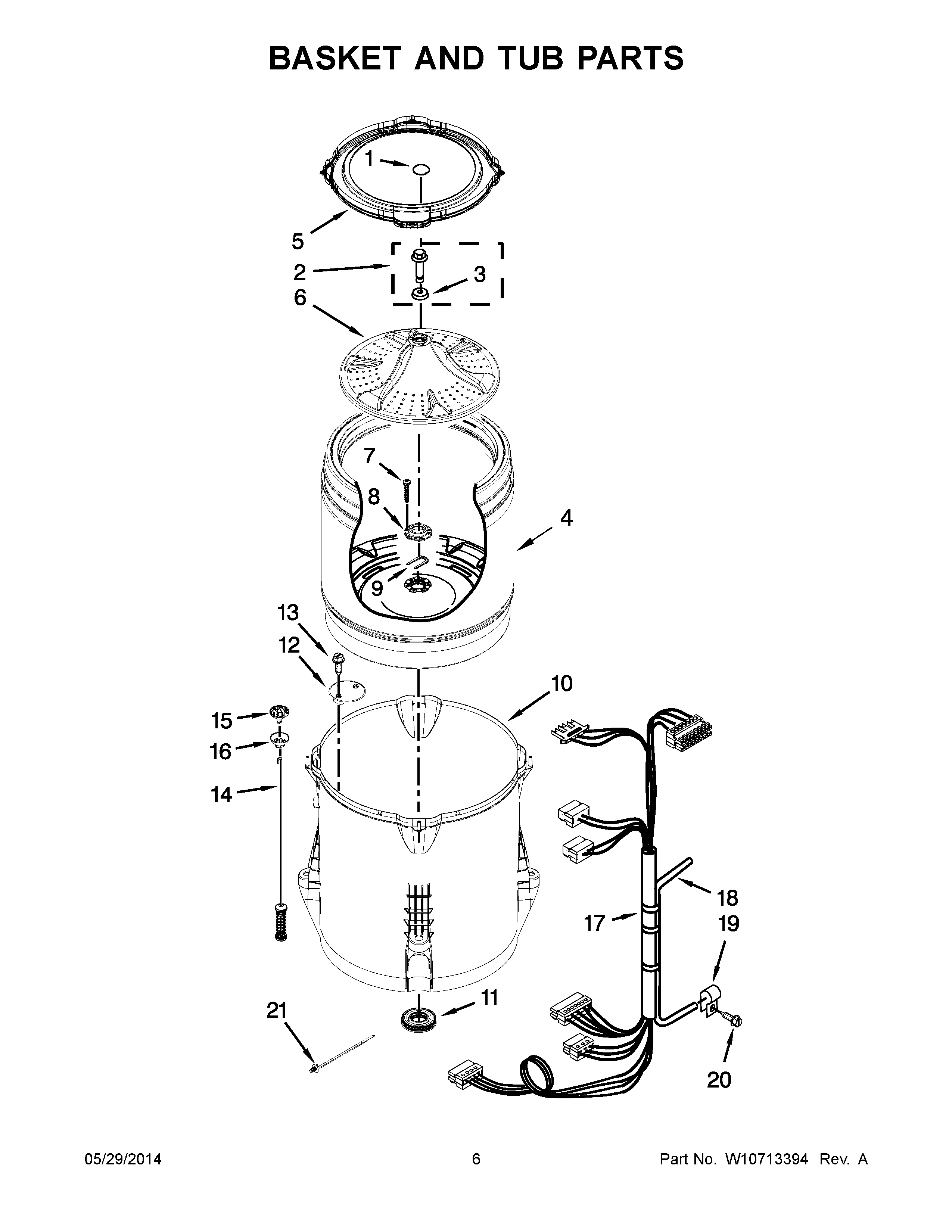

NTW4750BQ1 04 – BASKET AND TUB PARTS

NTW4750BQ1 04 – BASKET AND TUB PARTS

Written by

in

NTW4750BQ1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305259
2SCREW & WASHER
3MAY 3949550
4MAY W10521298
5MAY W10556325
6MAY W10215115
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10TUB
11MAY W10006371
12MAY W10215093
13Screw
14MAY W10555290
15BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
16BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17MAY W10610079
18MAY W10520039
19CLAMP, CABLE
20SCREW
21MAY W10298887
