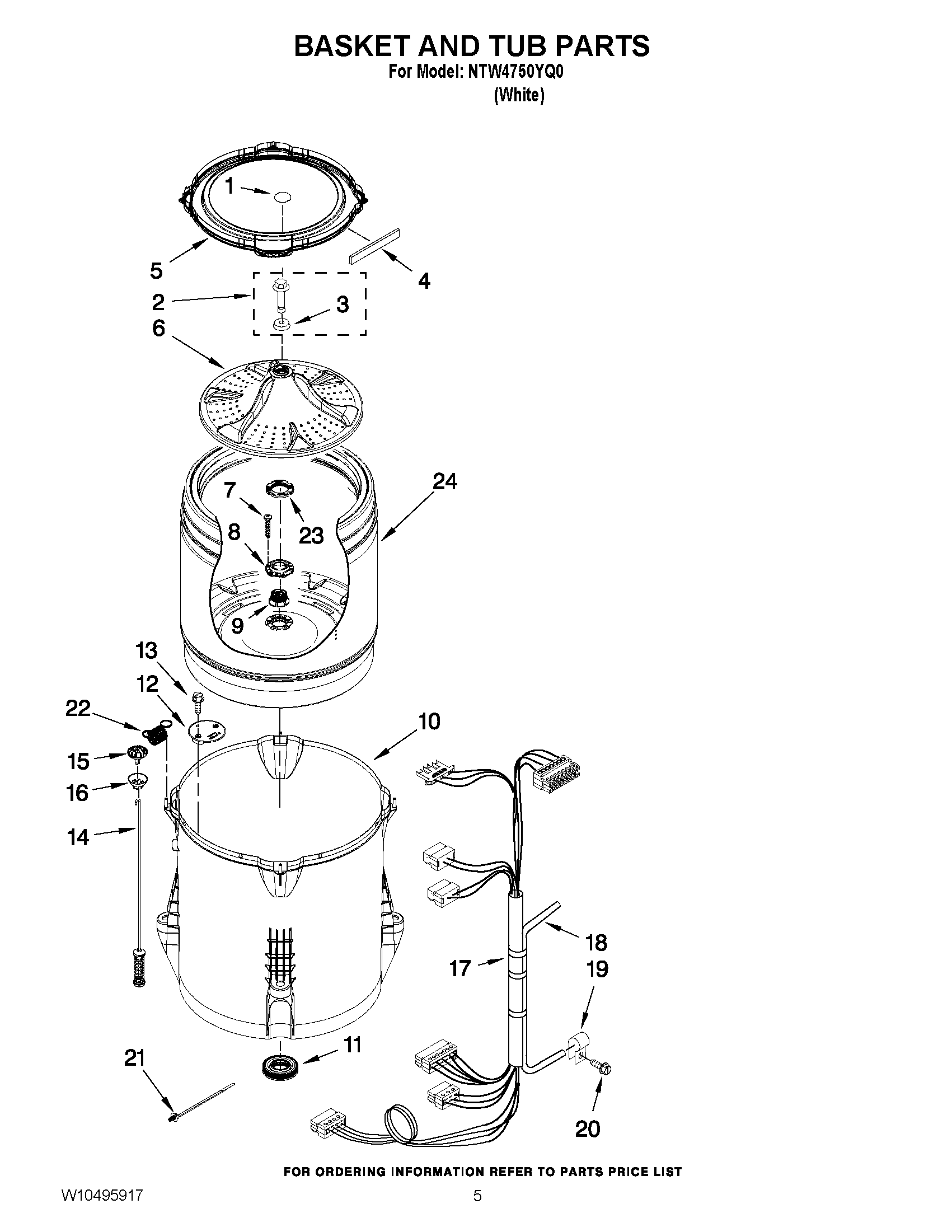

NTW4750YQ0 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10305259
2	SCREW & WASHER
3	MAY 3949550
4	MAY W10205824
5	RING, TUB (INCLUDES ITEM 4)
6	IMPELLER
7	SCREW
8	HUB – DRIVEN, BASKET (INCLUDES ITEMS 7, 9 & 23)
9	BLOCK, BASKET DRIVE (INCLUDES ITEMS 7, 8 & 23)
10	TUB
11	MAY W10006371
12	MAY W10215093
13	Screw
14	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 15 & 16)
15	BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
16	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17	HARNESS, LOWER (INCLUDES ITEMS 18 & 21)
18	MAY W10429300
19	CLAMP, CABLE
20	SCREW
21	MAY W10298887
22	MAY W10348658
23	NUT, SPANNER
24	BASKET ASSEMBLY (INCLUDES ITEMS 7, 8, 9 & 23)
