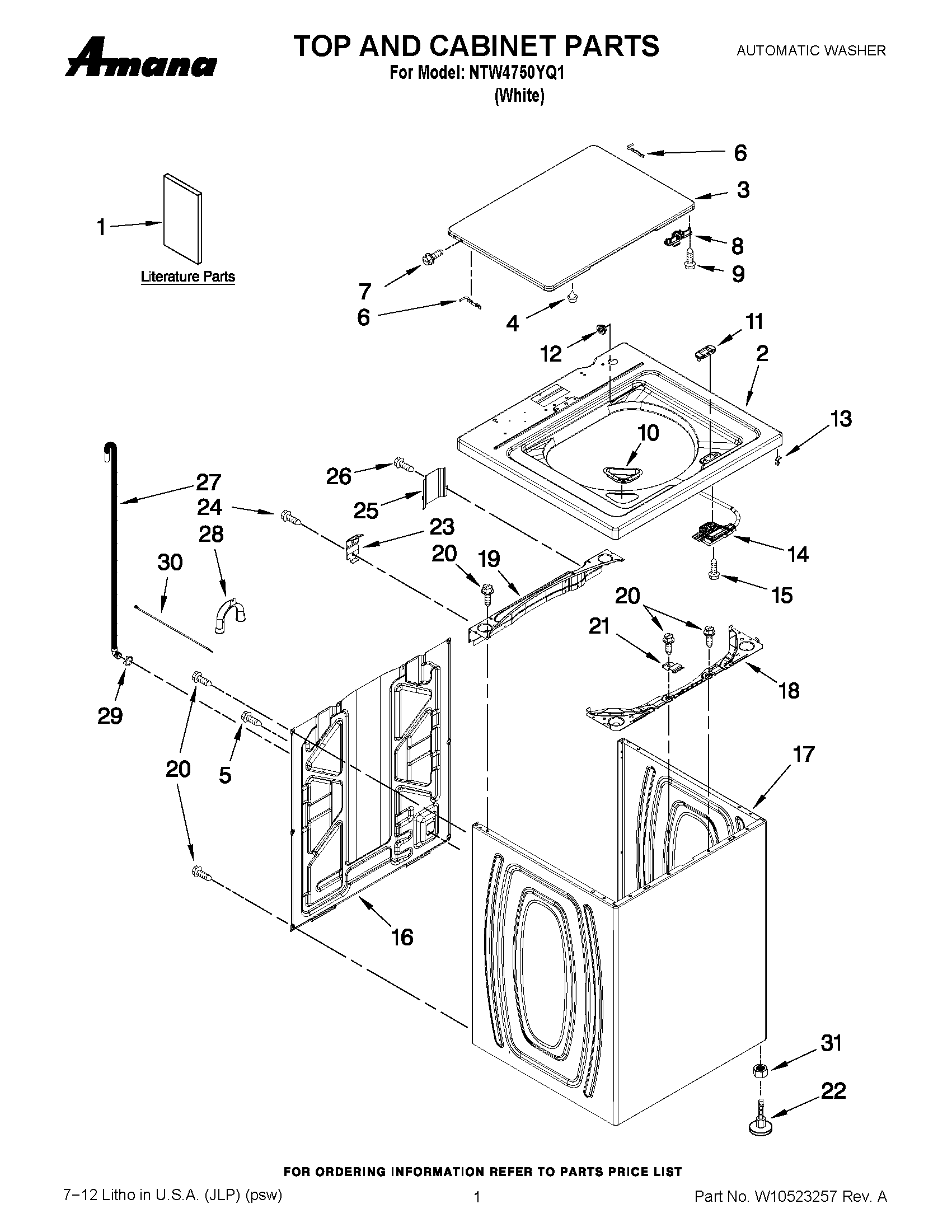

NTW4750YQ1 01 – TOP AND CABINET PARTSadmin2025-04-26T09:06:10+00:00NTW4750YQ1 01 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10062980 |
| 1 | MAY W10240509 |
| 1 | MAY W10468340 |
| 1 | MAY W10420474 |
| 2 | TOP |
| 3 | ASSEMBLY, LID (WHITE) |
| 4 | MAY 9724509 |
| 5 | SCREW |
| 6 | HINGE, LID |
| 7 | Screw And Washer |
| 8 | MAY W10240513 |
| 9 | SCREW |
| 10 | MAY W10192089 |
| 11 | MAY W10392041 |
| 12 | Hinge, Bearing (2) |
| 13 | Clip, Wire (4) |
| 14 | MAY W10238287 |
| 15 | Screw |
| 16 | PANEL, REAR |
| 17 | CABINET & FOOT ASSEMBLY (WHITE) |
| 18 | MAY W10215098 |
| 19 | BRACE, CABINET TOP - REAR |
| 20 | MAY 1157158 |
| 21 | MAY W10248088 |
| 22 | MAY W10397767 |
| 23 | MAY W10215102 |
| 24 | SCREW |
| 25 | MAY W10215139 |
| 26 | Screw, 10-32 x 5/8 |
| 27 | HOSE, OUTER DRAIN ASSEMBLY |
| 28 | MAY W10280024 |
| 29 | MAY 356138 |
| 30 | TIE, CABLE |
| 31 | Nut, 3/8-16 |
